Brand:Yokogawa Electric Item No.:NFAI543-S00/A4500 Product Origin:Japan Product Dimensions:130 x 107.5 x 32.8 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

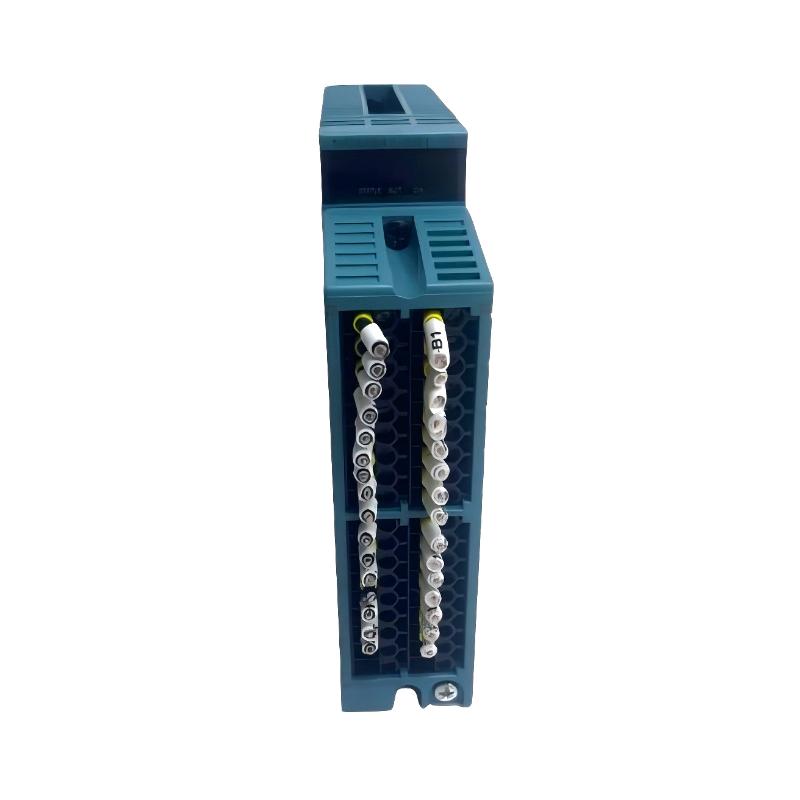

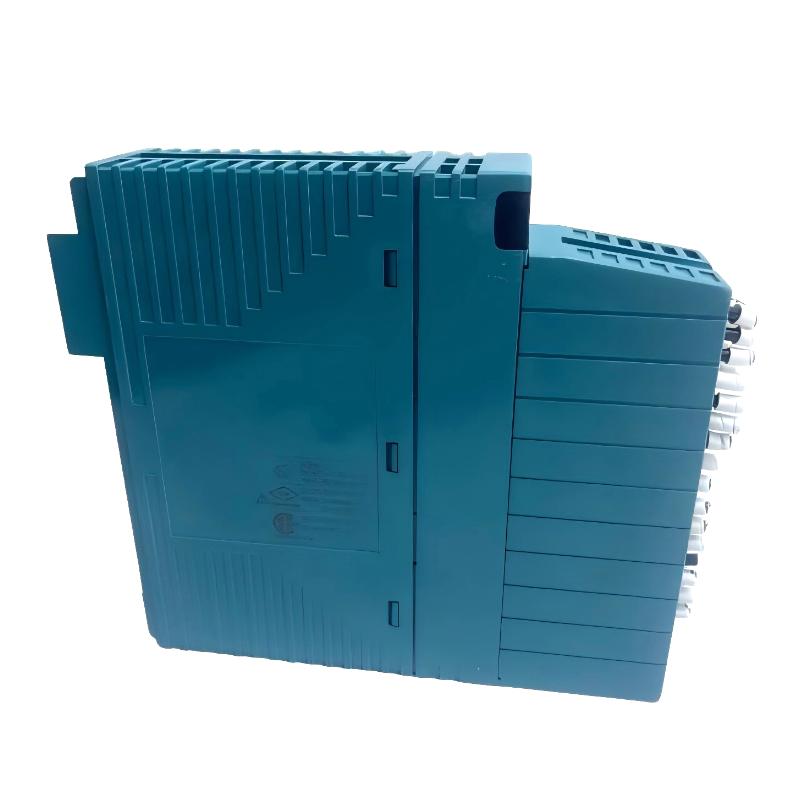

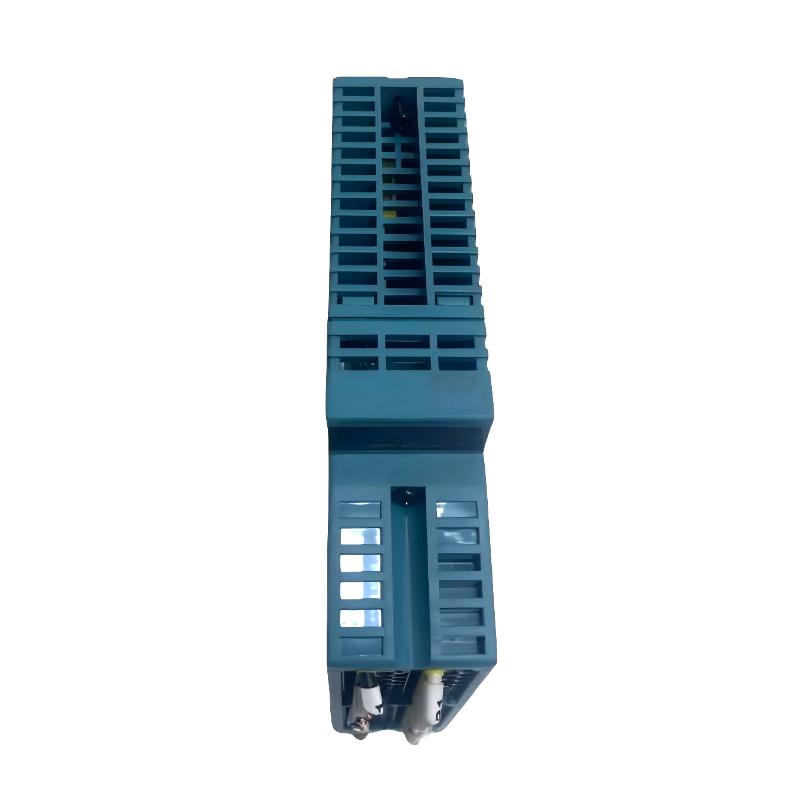

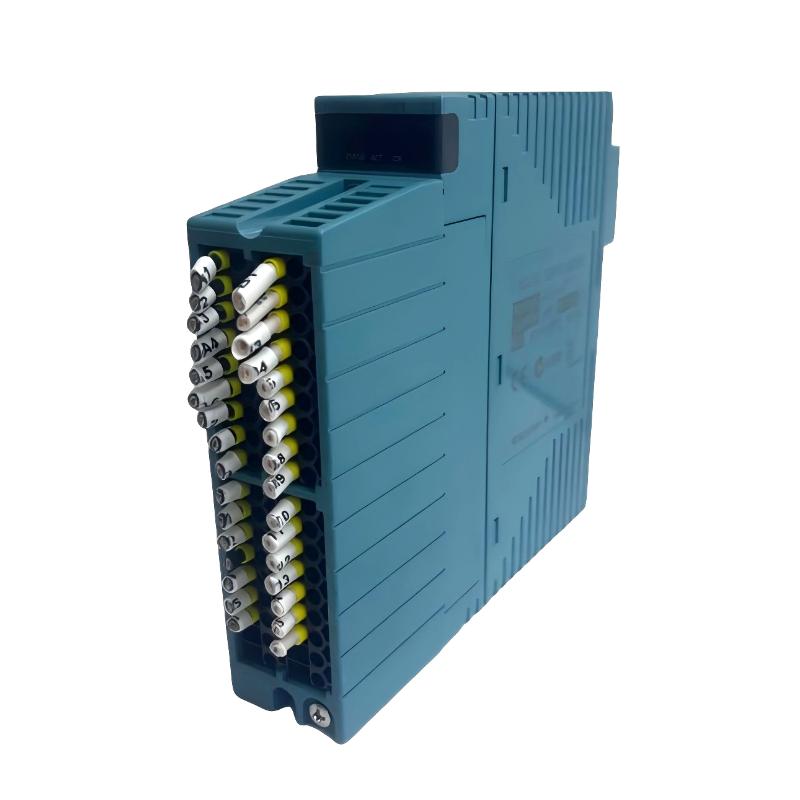

The Yokogawa NFAI543-S00/A4500 Analog Output Module delivers precise, reliable analog output for modern process automation systems. Its robust design ensures accurate signal control, seamless integration, and easy maintenance. Ideal for critical industrial applications, it enhances operational safety, scalability, and efficiency.
Technical Specifications
Feature
Specification
Model
NFAI543-S00/A4500
Type
Analog Output Module
Dimensions
130 × 107.5 × 32.8 mm
Weight
0.4 kg
Output Signal Type
4–20 mA / 0–10 V
Communication Protocol
ESB Bus
Power Supply
24 VDC ±10%
Mounting
DIN rail / panel mountable
Diagnostic Features
LEDs for status, error detection
Recommended Related Models
Model
Product Name
NFAI541-S00/A4500
Analog Output Module, 2-channel
NFAI542-S00/A4500
Analog Output Module, 4-channel
NFAI544-S00/A4500
High-Speed Analog Output Module
NFAI545-S00/A4500
Redundant Analog Output Module
Popular Related Models
Model
Product Name
NFAI543-S00/A4000
Previous Generation Analog Output Module
NFAI541-S00/A4000
Compact Analog Output Module
NFAI542-S00/A4000
Standard 4-Channel Analog Output Module
NFAI544-S00/A4000
Enhanced Analog Output Module with Diagnostics
Applications
• High-precision analog signal output for process control systems.
• Integration with distributed control systems for real-time monitoring.
• Supporting industrial automation in chemical, oil & gas, and power plants.
• Facilitating scalable analog output configurations for large networks.
• Enabling system diagnostics and signal verification for operational reliability.
Key Advantages
• High Accuracy: Ensures precise analog output across a wide range of process values.
• Reliable Operation: Designed for continuous use in demanding industrial environments.
• Flexible Integration: Compatible with multiple Yokogawa DCS and ESB modules.
• Easy Maintenance: Diagnostic indicators simplify troubleshooting and system checks.
• Scalable Design: Supports expansion in distributed control architectures without complex rewiring.
Technical FAQs
Q: What types of analog signals does the NFAI543-S00/A4500 support?
It supports both 4–20 mA and 0–10 V analog output signals for standard process control applications.
Q: Can this module operate in hazardous industrial environments?
Yes, it is rated for industrial temperature ranges and is vibration-resistant for harsh environments.
Q: How is the module calibrated?
The module is factory-calibrated and allows on-site fine-tuning through the control system interface.
Q: Does it support redundancy for critical processes?
Yes, it can be integrated into redundant output configurations to maintain continuous operation.
Q: How does it communicate with other DCS modules?
It communicates via the Yokogawa ESB bus protocol for reliable and deterministic data transfer.
Q: Can it provide diagnostic information?
Yes, it offers real-time status, error logs, and output monitoring through the control system.
Q: How many output channels does this module have?
It provides multiple analog output channels, configurable based on system requirements.
Q: Is firmware upgradeable on-site?
Yes, firmware can be updated securely without interrupting normal operation.
Q: Is it compatible with legacy Yokogawa systems?
Yes, it supports backward compatibility for smooth integration with older DCS modules.
Q: How does it contribute to process safety?
Continuous monitoring and diagnostic alerts help prevent incorrect output values that could affect process safety.
