Brand:Allen Bradley PLC Item No.:1746-P2 Product Origin:USA Product Dimensions:85 × 140 × 140 mm Product Weight:0.66 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

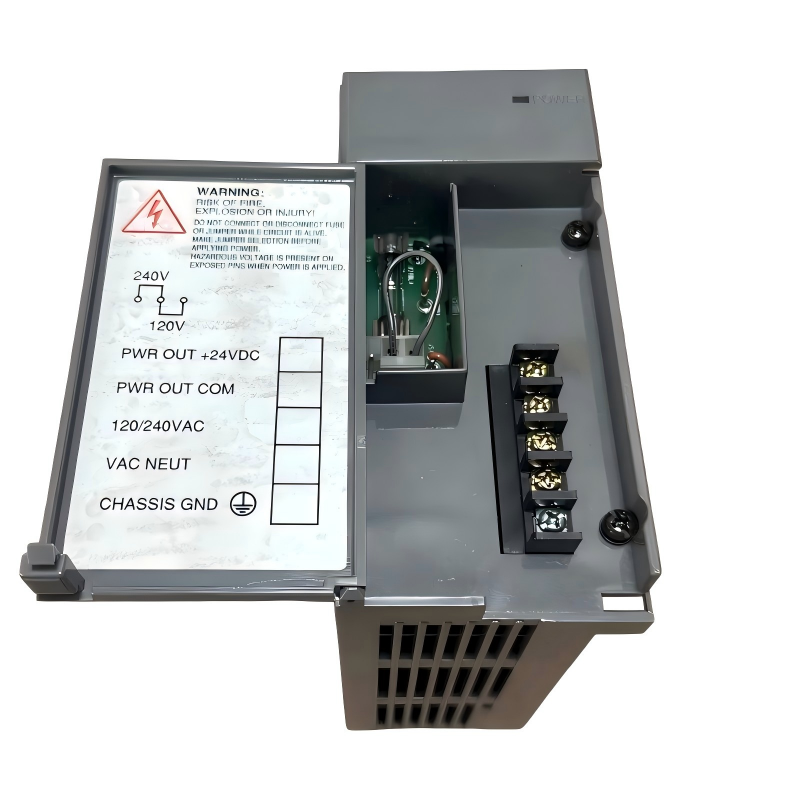

The Allen Bradley 1746-P2 SLC 500 Power Supply Module is a dependable solution for delivering consistent DC power to SLC 500 PLC systems. Its compact design, industrial durability, and built-in protection features make it ideal for manufacturing, process control, and automated system applications.
Technical Specifications
Specification
Details
Product Model
1746-P2
Series
SLC 500
Module Type
Power Supply Module
Dimensions (H × W × D)
85 × 140 × 140 mm
Weight
0.66 kg (1.46 lb)
Output Voltage
5 VDC
Output Current
Rated per SLC 500 configuration
Installation
SLC 500 Rack / Chassis
Protection
Overload and Short-Circuit Protection
Application
PLC Power Supply for Industrial Automation
Operating Environment
Industrial Control Panels
Manufacturer
Allen Bradley
Reliable Power for SLC 500 Control Systems
The Allen Bradley 1746-P2 SLC 500 Power Supply Module provides stable and consistent DC power for SLC 500 series programmable logic controllers (PLCs) and associated I/O modules. Designed for industrial automation environments, it ensures your control system operates with maximum reliability and efficiency.
Typical applications include:
Factory automation and discrete manufacturing
Material handling and assembly line control
Process control in chemical and packaging industries
HVAC and building automation systems
Infrastructure and utilities automation
SLC 500 system installations requiring dependable power
Key Advantages
Stable DC Output: Provides consistent voltage for reliable PLC and I/O operation.
Compact Form Factor: 85 × 140 × 140 mm module fits easily in standard SLC 500 racks.
Industrial-Grade Reliability: Designed to operate in harsh environments with minimal downtime.
Overload Protection: Built-in protection safeguards modules from power surges and faults.
Easy Integration: Plug-and-play design for SLC 500 chassis.
Efficient Operation: Minimizes heat generation and energy consumption.
Durable Construction: Robust design for long-term industrial use.
Technical FAQs
1. What is the primary purpose of the 1746-P2 module?
It supplies regulated DC power to the SLC 500 PLC and its connected I/O modules.
2. What voltage and current does it provide?
It provides a 5 VDC output for the PLC backplane and supports the module’s rated current capacity.
3. Can it support a fully loaded SLC 500 rack?
Yes, it is rated to supply sufficient power for standard SLC 500 configurations.
4. Does it have overload protection?
Yes, it includes built-in overload and short-circuit protection.
5. Is this module hot-swappable?
No, the power supply should be powered down before replacement to ensure safety.
6. Can it operate in industrial environments?
Yes, it is designed for industrial temperature ranges and electrical conditions.
7. Is it compatible with all SLC 500 chassis sizes?
Yes, it works with standard SLC 500 5-slot, 8-slot, 10-slot, and larger chassis.
8. How does it improve system reliability?
By providing stable power and protection against surges, it reduces the risk of PLC or I/O failures.
9. Can multiple power supplies be used in one system?
Yes, redundant configurations can be achieved for critical applications.
10. What maintenance is required?
Minimal; inspect connections periodically and ensure proper ventilation in the control cabinet.
