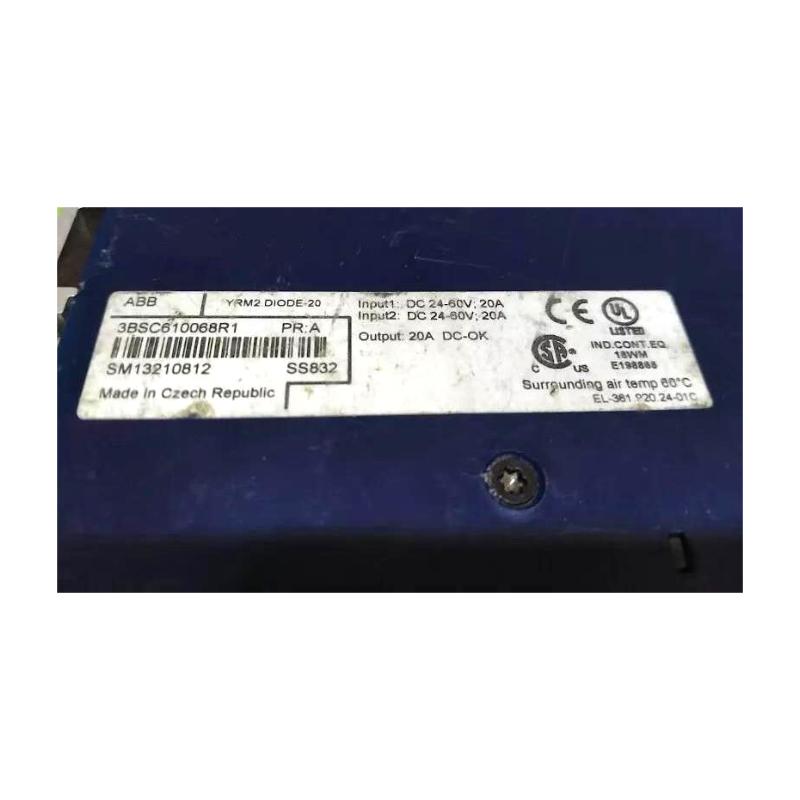

SS832 3BSC610068R1 (1) SS832 3BSC610068R1 (3) SS832 3BSC610068R1 (2) SS832 3BSC610068R1 (4)

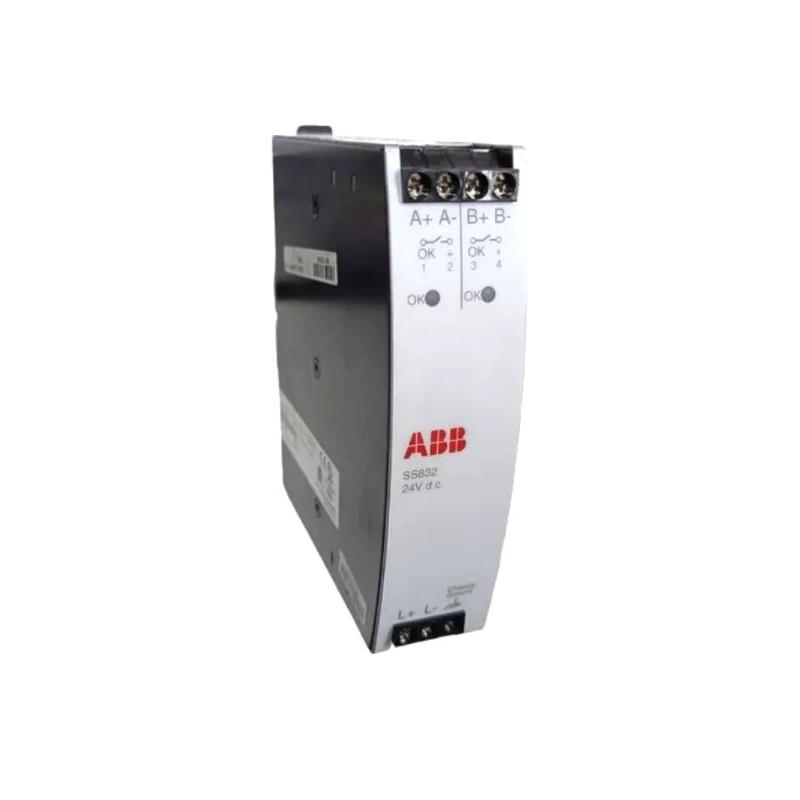

The ABB SS832 Power Supply Module is a high-performance, reliable, and energy-efficient solution designed for powering industrial automation systems. Whether you’re running control systems, sensors, or machinery in demanding industrial environments, the SS832 ensures consistent 24V DC output to keep your operations running smoothly and efficiently.

Equipped with advanced protection features, the SS832 helps safeguard your equipment from electrical faults, enhancing the longevity and reliability of your systems. With its high efficiency and rugged design, the SS832 is suitable for medium to large industrial systems that require stable, continuous power. Its compact form factor and ease of installation make it an ideal choice for a wide range of applications, from manufacturing plants to energy management systems.

Technical Specifications

Specification	Details
Model	SS832 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	12A
Efficiency	94% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	2.5 kg (5.51 lbs)
Dimensions (W x H x D)	150 x 170 x 130 mm (5.91 x 6.69 x 5.12 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

For a broader range of industrial power needs, consider these related ABB models:

ABB SS820: A compact power supply module for smaller automation systems or lower power requirements.
ABB SS850: A high-output power supply module designed for larger systems that require higher current capacity.
ABB SS860: Modular power supply solution ideal for scalable and flexible automation setups.
ABB DCS 800 Series: Comprehensive power and control solutions designed for complex industrial automation needs.
ABB PM850: A power protection module that helps to safeguard against electrical faults, power surges, and other disturbances.

Popular ABB Models

ABB offers a broad portfolio of products to power and control industrial systems. Here are some of the most popular models:

ABB SD880: High-capacity power supply designed for industrial environments with heavy-duty power requirements.
ABB ACS580: Energy-efficient variable frequency drives for motor control in industrial settings.
ABB IRB 6700: Industrial robots for high-speed and high-precision automation tasks.
ABB PPM500: Power protection module designed to provide system stability in critical applications.
ABB MNS 3.0: Modular and flexible power distribution system ideal for industrial electrical installations.

Applications

The ABB SS832 Power Supply Module is perfect for a wide variety of industrial applications, including:

Automation Systems: Powers PLCs, robotic systems, and control systems that manage industrial processes.
Manufacturing Plants: Ideal for automated production lines, packaging machines, and assembly systems that require uninterrupted power.
Material Handling: Supports conveyors, sorters, and automated material handling systems in logistics, warehouses, and distribution centers.
HVAC Systems: Powers heating, ventilation, and air conditioning systems in commercial and industrial buildings to ensure continuous operation.
Energy Systems: Provides stable 24V DC power for control systems in renewable energy applications, electrical grids, and energy management infrastructure.

Advantages

High Efficiency: The SS832 offers an impressive 94% efficiency at full load, reducing energy consumption, heat production, and overall operational costs.
Compact Design: Despite its high power output, the SS832 features a compact design, making it easy to integrate into space-constrained environments such as control panels and industrial enclosures.
Advanced Protection Features: The SS832 includes overvoltage, overcurrent, short-circuit, thermal, and surge protection to safeguard both the module and your connected systems from electrical disturbances.
Wide Input Voltage Range: The SS832 can operate with an input voltage range of 85-265 VAC, ensuring compatibility with power supplies in various regions and countries.
Easy Installation: The module is designed for DIN rail mounting, allowing for quick and simple installation in industrial control panels.
Long-Term Reliability: Designed for continuous operation in harsh industrial environments, the SS832 delivers long-lasting, stable performance, minimizing the need for frequent maintenance.

Technical FAQs

What is the input voltage range for the ABB SS832?
- The SS832 operates within an input voltage range of 85-265 VAC, making it adaptable for use in different regions worldwide.
What is the efficiency rating of the SS832?
- The SS832 operates at 94% efficiency at full load, helping reduce energy waste and minimize heat production.
What protection features does the SS832 include?
- The SS832 is equipped with overvoltage, overcurrent, thermal, short-circuit, and surge protection to ensure both the module and connected systems are protected.
How much current can the SS832 supply?
- The SS832 provides up to 12A of current at 24V DC, making it suitable for medium to large industrial systems.
Can the SS832 be used outdoors?
- The SS832 is designed for indoor use. However, it can be placed in an enclosure for protection if used in outdoor environments.
What is the operating temperature range for the SS832?
- The SS832 operates within a temperature range of -10°C to 70°C (14°F to 158°F), making it suitable for use in various industrial environments.
How is the SS832 mounted?
- The SS832 is designed for easy DIN rail mounting, which makes installation fast and convenient in control panels and machinery enclosures.
What are the dimensions and weight of the SS832?
- The SS832 weighs 2.5 kg (5.51 lbs) and has dimensions of 150 x 170 x 130 mm (5.91 x 6.69 x 5.12 inches), offering a compact yet powerful solution for industrial applications.
Is the SS832 suitable for large systems?
- Yes, with a 12A output, the SS832 is ideal for large systems or applications that require a stable 24V DC power supply.
Can the SS832 be integrated with other ABB systems?
- Yes, the SS832 is fully compatible with other ABB automation and control products, making it easy to integrate into larger industrial control systems.
