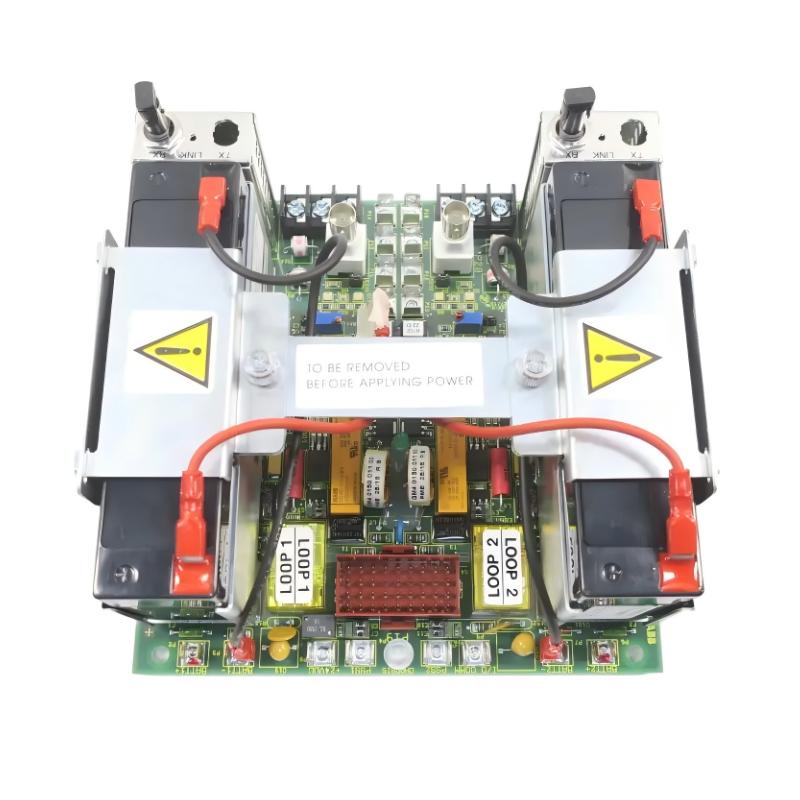

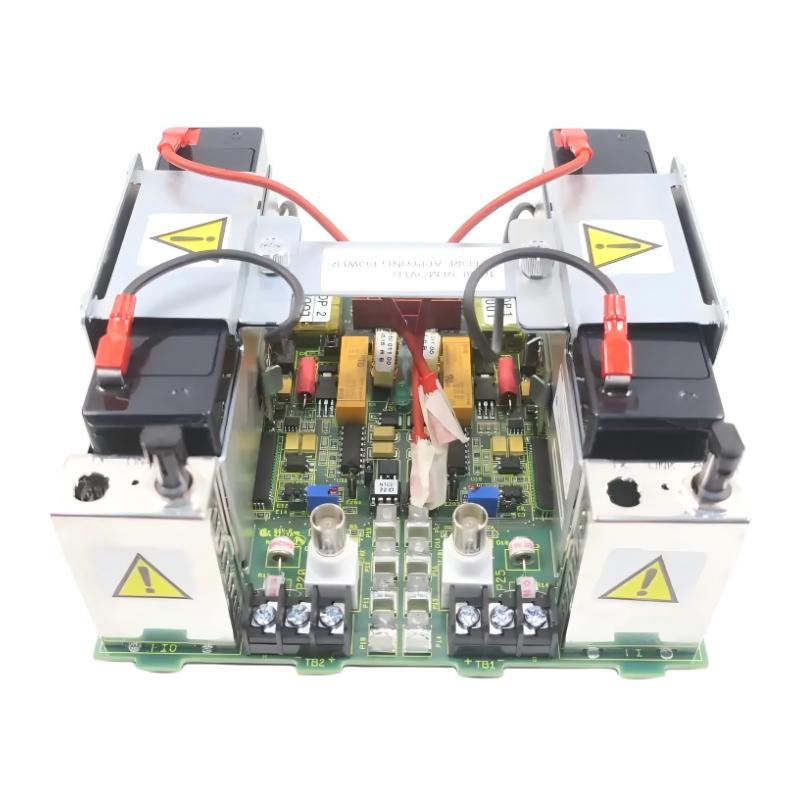

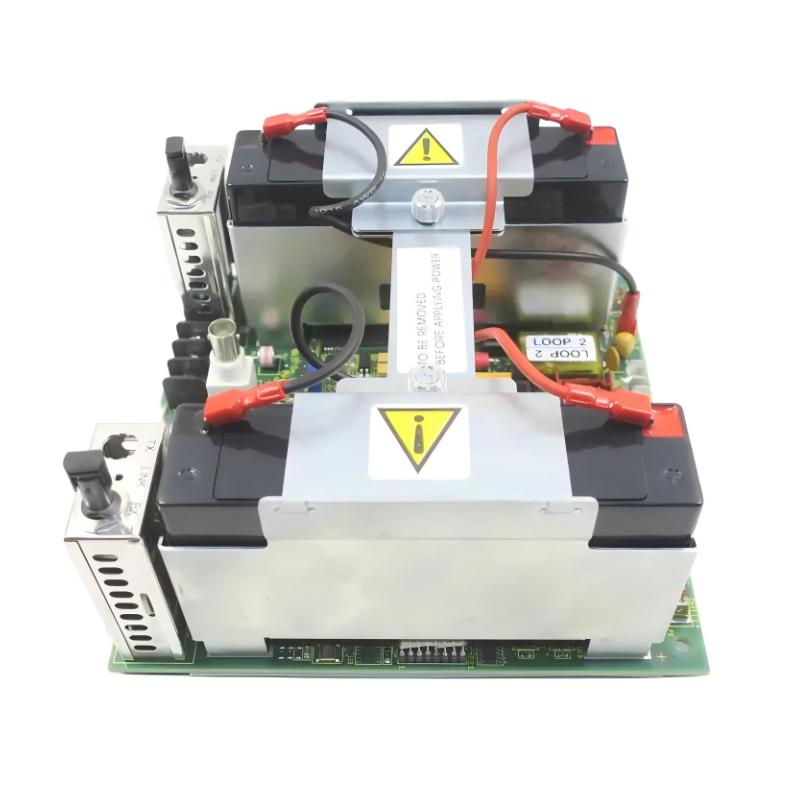

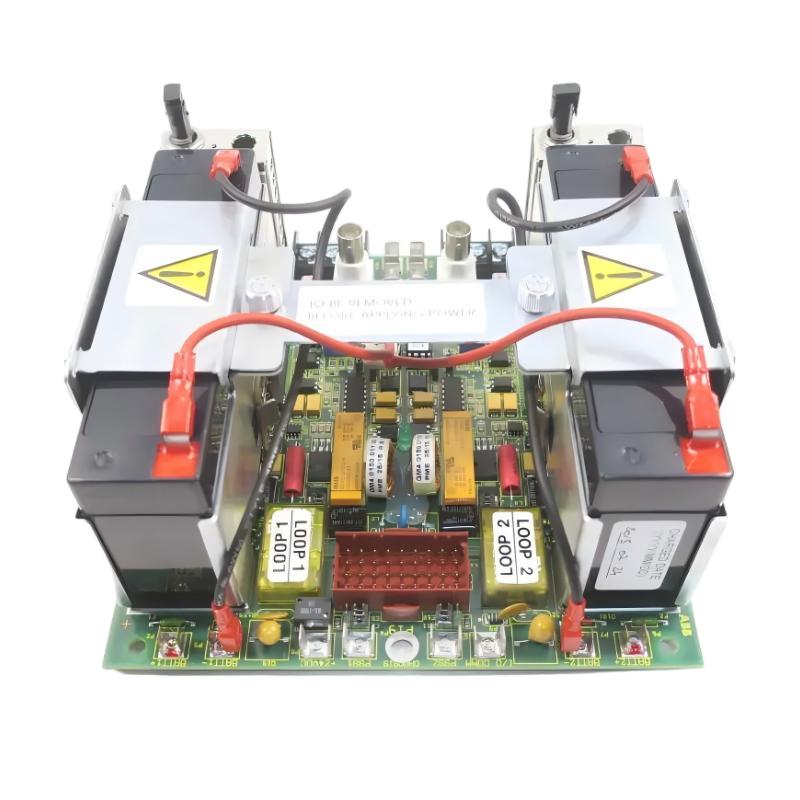

ABB Bailey NTCF22 Fiber Optic Communication Terminal Unit
ABB Bailey NTCF22 Fiber Optic Communication Terminal Unit
0.0
Points
Brand:ABB Bailey Item No.:NTCF22 Product Origin:Sweden (SE) Product Dimensions:160.02 x 226.06 x 210.82 mm Product Weight:0.65 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB Bailey NTCF22 Fiber Optic Communication Terminal Unit is designed to provide reliable, high-speed communication for industrial automation systems. Utilizing fiber optic technology, it enhances signal integrity, minimizes interference, and supports efficient data exchange within ABB Bailey distributed control environments. Its robust construction ensures dependable operation in demanding industrial applications.
Technical Specifications
Parameter
Specification
Product Type
Fiber Optic Communication Terminal Unit
Communication Medium
Fiber optic
Compatibility
ABB Bailey distributed control systems
Installation
Panel / cabinet mounting
Signal Characteristics
High-speed industrial data transmission
Interference Protection
High EMI/RFI resistance
Dimensions
160.02 × 226.06 × 210.82 mm
Weight
0.65 kg
Recommended Related Models
Model
Product Name
NTCF21
Fiber Optic Communication Interface Unit
INICT12
Network Interface Communication Module
NTCL01
Communication Termination Unit
IMMFP12
Multi-Function Processor Module
Popular Related Models
Model
Product Name
NTAI05
Analog Input Terminal Unit
IMDSI14
Digital Input Slave Module
IMASO11
Analog Output Module
SPBRC410
Bridge Controller Module
Applications
• Supporting fiber optic communication within ABB Bailey distributed control systems.
• Enabling high-speed data transmission between industrial control modules.
• Reducing electromagnetic interference in critical automation environments.
• Integrating remote control equipment through fiber optic communication networks.
• Enhancing communication reliability in process automation and manufacturing systems.
Key Advantages
• Fiber optic technology provides high-speed and stable data communication.
• Strong resistance to electromagnetic and radio-frequency interference.
• Improves long-distance signal transmission performance in industrial networks.
• Durable industrial-grade construction ensures reliable continuous operation.
• Simplifies communication integration within ABB Bailey automation architectures.
Technical FAQs
Q1: What is the primary function of the NTCF22 terminal unit?
It provides fiber optic communication interfacing for ABB Bailey industrial control systems.
Q2: Why is fiber optic communication used in industrial systems?
Fiber optics reduce electromagnetic interference and improve transmission reliability over long distances.
Q3: Is the NTCF22 compatible with ABB Bailey DCS systems?
Yes, it is specifically designed for integration with ABB Bailey distributed control architectures.
Q4: Can the module support long-distance communication?
Yes, fiber optic technology enables reliable long-distance data transmission.
Q5: Does the unit require special environmental conditions?
It is designed for standard industrial automation environments with appropriate cabinet protection.
Q6: Is the communication signal immune to electrical noise?
Fiber optic communication provides excellent immunity to electrical and electromagnetic interference.
Q7: Can multiple communication modules be connected simultaneously?
Yes, it can be integrated into larger industrial communication networks depending on system configuration.
Q8: Does the terminal unit require software configuration?
Configuration depends on the connected control system and communication setup.
Q9: What happens if the fiber optic connection is interrupted?
Communication loss may occur between connected devices until the fiber link is restored.
Q10: Is regular maintenance required for the unit?
Minimal maintenance is required, but periodic inspection of fiber connections is recommended.
