Schneider VW3M3805R010 CANopen Cable

Industrial Communication Applications and CANopen Network Connection Solutions

The Schneider VW3M3805R010 CANopen Cable is a preassembled communication cable designed for CANopen bus applications in Schneider industrial automation systems. It provides a reliable connection solution between compatible controllers, servo drives, and automation devices, helping engineers achieve stable fieldbus communication and efficient system integration.

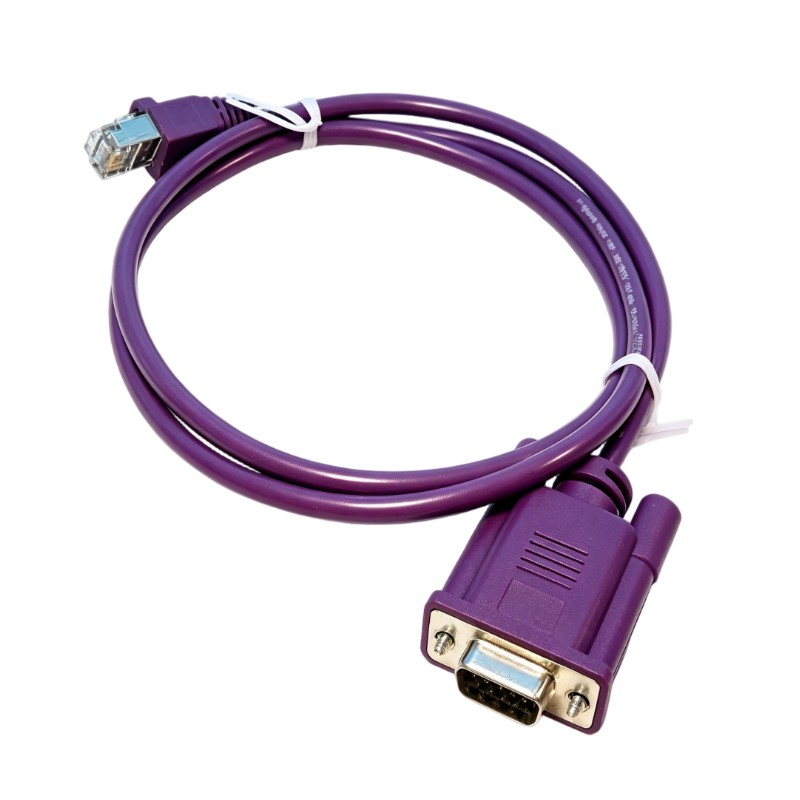

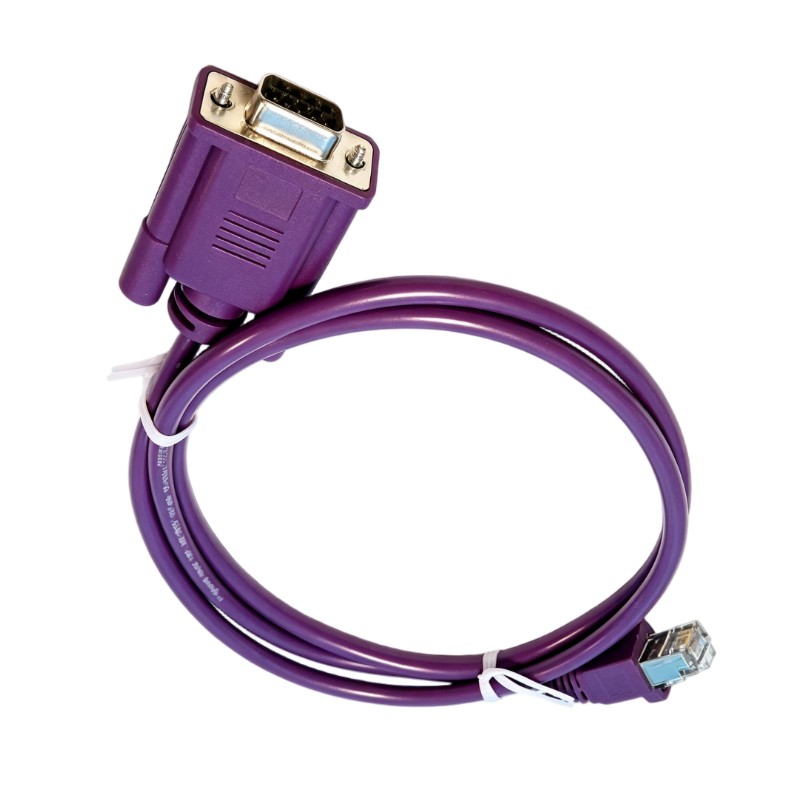

Designed as a dedicated connection accessory for Schneider motion control platforms, the VW3M3805R010 features a 1-meter cable length with one RJ45 connector and one 9-pin female SUB-D connector with integrated line termination. This ready-to-use design reduces wiring complexity and improves installation efficiency in industrial control environments.

The cable is widely used in motion control systems, servo applications, machine automation equipment, and CANopen-based industrial networks. It is suitable for connecting devices such as Lexium SD3 stepper drives, Lexium servo systems, Modicon controllers, and other compatible CANopen devices, providing a convenient communication link for automation projects.

Connection Performance Advantages and Engineering Benefits

Preassembled CANopen Communication Solution
The VW3M3805R010 comes with factory-installed connectors, eliminating the need for manual cable assembly. This helps reduce installation time, minimize wiring errors, and improve commissioning efficiency in industrial automation projects.

Reliable CANopen Bus Communication
Designed specifically for CANopen networks, the cable provides stable communication between automation components. It supports reliable transmission of control commands, diagnostic information, and device status data in industrial environments.

Integrated Line Termination Design
The 9-pin female SUB-D connector includes an integrated line terminator, simplifying CANopen network setup and reducing the need for additional termination components during installation.

Compatible with Schneider Motion Platforms
The VW3M3805R010 is designed for use with Schneider automation and motion products, including Lexium SD3, Lexium 28, Modicon M238, Modicon M258, and Modicon LMC058 systems, providing flexible integration options.

Improved System Reliability
Using a dedicated Schneider communication cable helps maintain signal integrity and reduces potential communication problems caused by incorrect wiring, unsuitable cable types, or poor connector quality.

Simplified Maintenance and Replacement
The plug-and-play connector design allows technicians to quickly install, replace, or inspect communication connections during machine maintenance and troubleshooting.

Optimized for Industrial Automation Environments
The compact cable design makes it suitable for control cabinets, machine builders, and automation systems where reliable communication and efficient installation are required.

Technical FAQs About Schneider VW3M3805R010 CANopen Cable

Q1: What is the main function of the Schneider VW3M3805R010?
A: The VW3M3805R010 is a preassembled CANopen communication cable used to connect compatible Schneider automation and motion control devices.

Q2: Which communication protocol does the VW3M3805R010 support?
A: The cable is designed for CANopen bus communication applications.

Q3: Which Schneider products are compatible with the VW3M3805R010?
A: It is compatible with devices including Lexium SD3, Lexium 28, Modicon M238, Modicon M258, Modicon LMC058, and related CANopen systems.

Q4: What connectors are included on the VW3M3805R010?
A: The cable includes one RJ45 connector and one 9-pin female SUB-D connector with integrated line termination.

Q5: Can the VW3M3805R010 be used in servo motion applications?
A: Yes. It is suitable for CANopen communication connections in Schneider motion control and servo drive systems.

Q6: What should be checked if CANopen communication fails?
A: Engineers should verify connector installation, CANopen addressing, termination settings, cable condition, and communication parameters.

Q7: What causes unstable CANopen communication?
A: Common causes include incorrect termination, damaged cables, excessive electrical interference, incorrect node configuration, or loose connectors.

Q8: Does the VW3M3805R010 require additional wiring work before use?
A: No. The cable is preassembled and ready for direct connection between compatible CANopen devices.

Q9: How can communication reliability be improved when using this cable?
A: Proper cable routing, avoiding strong electromagnetic interference sources, and maintaining correct network configuration help improve reliability.

Q10: What maintenance practices are recommended for the VW3M3805R010?
A: Regular inspection of connectors, cable condition, and CANopen network parameters helps maintain stable communication performance.
