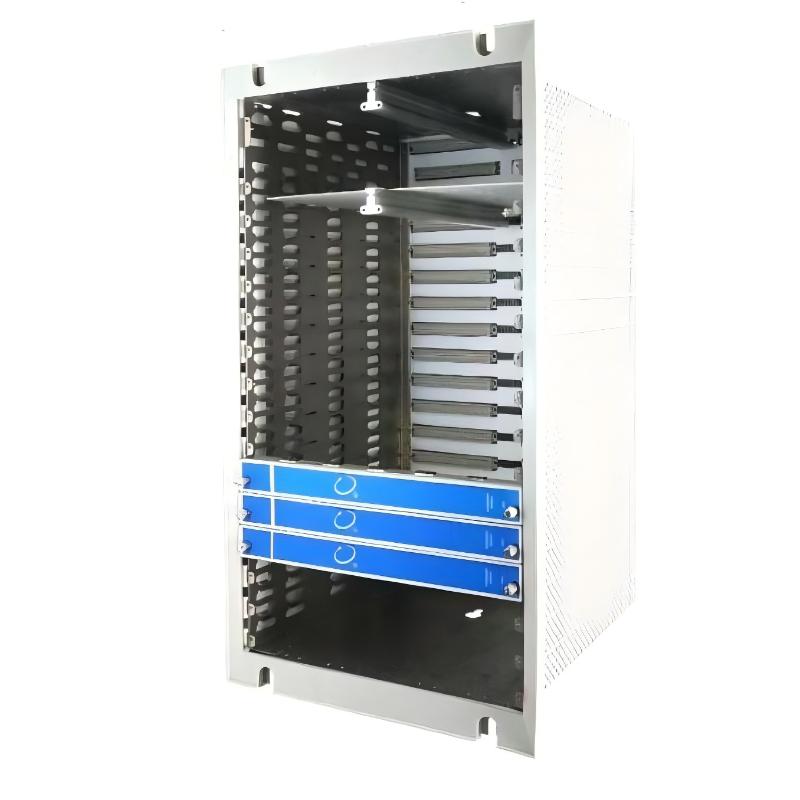

The Bently Nevada 3500/05-01-02-R0-00-01 System Rack represents a pinnacle in machinery protection technology. Its durable frame, modular architecture, and seamless integration with 3500/05 monitoring modules make it an indispensable asset for critical industrial applications. Designed to deliver reliable, high-precision monitoring, it empowers operators to detect and address mechanical issues before they escalate, safeguarding both equipment and operational continuity.

Technical Specifications

Specification	Details
Dimensions	Rack Size : 19-inch (14 module slots)
Weight	4.5 kg
Module Capacity	Up to 10 modules
Power Supply	24 VDC nominal, ±10%
Operating Temperature	-20°C to 70°C
Mounting Type	Standard 19-inch rack mount
Network Integration	3500/05 system network compatible
LED Indicators	Module status, power, fault
Grounding	Integrated grounding bus
Compliance	CE, UL, and industry standard compliant
