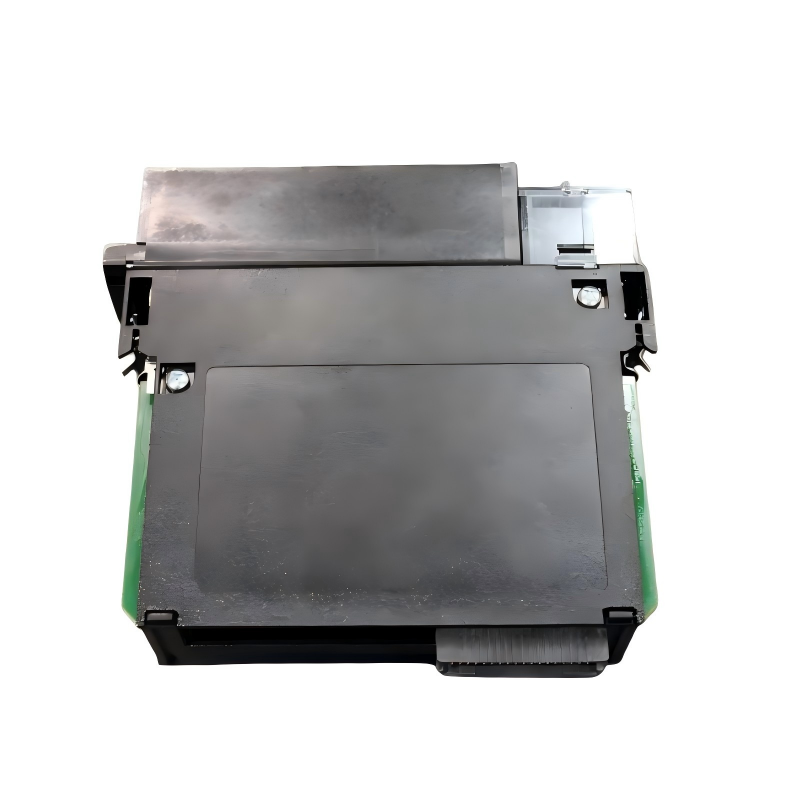

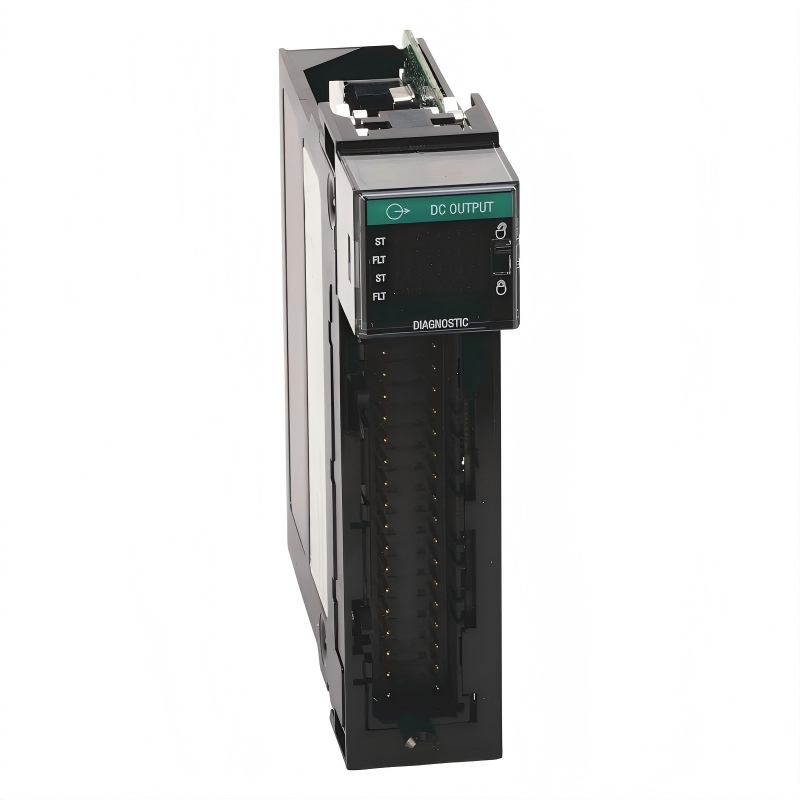

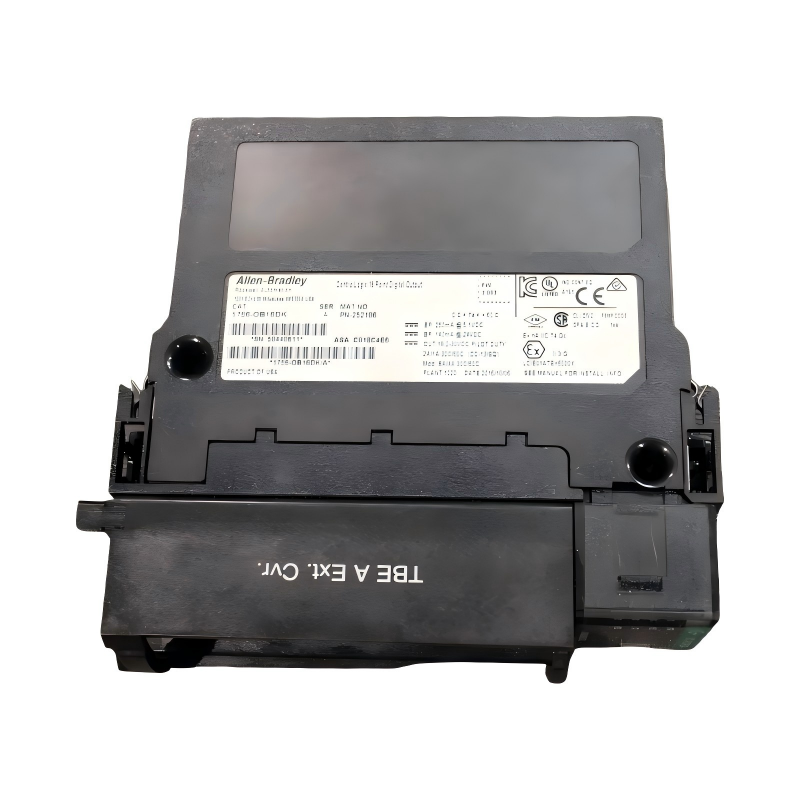

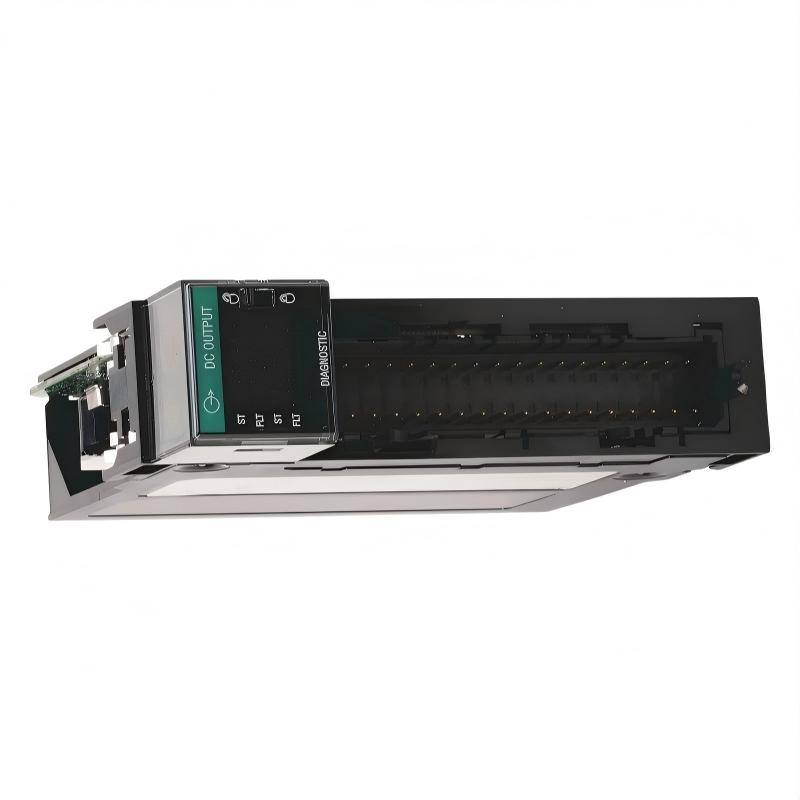

Allen Bradley 1756-OB16DK ControlLogix DC Digital Output Module
Allen Bradley 1756-OB16DK ControlLogix DC Digital Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1756-OB16DK Product Origin:USA Product Dimensions:144.57 x 22 x 105.42 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1756-OB16DK ControlLogix DC Digital Output Module delivers precise, reliable control for discrete devices in industrial automation systems. Its compact size, high channel density, and robust diagnostics ensure seamless integration with ControlLogix controllers, providing dependable digital output performance for complex industrial applications.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
144.57 × 22 × 105.42 mm
Weight
0.45 kg / 0.992 lb
Number of Channels
16 DC outputs
Output Voltage
24V DC
Mounting Options
ControlLogix Rack
Function
DC Digital Output Module
Applications
Factory Automation, Process Control, Machinery Control
Diagnostics
Channel status and fault reporting
Applications
The Allen Bradley 1756-OB16DK ControlLogix DC Digital Output Module is engineered for reliable, high-performance digital signal output in industrial automation systems. It is designed to drive DC actuators, relays, solenoids, and indicators directly from a ControlLogix rack.
Ideal for factory automation, process control, and machinery applications requiring precise and fast digital control for up to 16 discrete outputs.
Advantages
High-Density Digital Output: Provides 16 DC output channels in a compact 144.57 × 22 × 105.42 mm module.
Compact and Lightweight: 0.45 kg / 0.992 lb for easy integration into ControlLogix racks.
Reliable Switching: Designed for industrial-grade durability with fast response times.
Seamless Integration: Compatible with Allen Bradley ControlLogix controllers and I/O architectures.
Enhanced Diagnostics: Provides fault detection and output status monitoring for increased system reliability.
Technical FAQs
What is the main function of the 1756-OB16DK?
Provides 16 discrete DC outputs for industrial automation devices.
What is the maximum output voltage?
Supports standard 24V DC output levels for field devices.
Can it drive relays or solenoids directly?
Yes, each output channel is capable of driving DC relays and solenoids.
Does it provide diagnostic feedback?
Yes, it includes output status and fault reporting for each channel.
Is it compatible with ControlLogix racks?
Yes, it fits standard 1756 ControlLogix chassis.
How is it mounted?
Rack-mounted in ControlLogix backplanes with standard I/O connections.
What is the operating temperature range?
-20°C to 70°C, suitable for most industrial environments.
Can multiple modules be used in one rack?
Yes, multiple digital output modules can be installed for expanded control.
Is it suitable for high-vibration environments?
Yes, industrial-grade design ensures stable performance.
What is the expected service life?
Designed for long-term use in automation systems, typically years of continuous operation.
