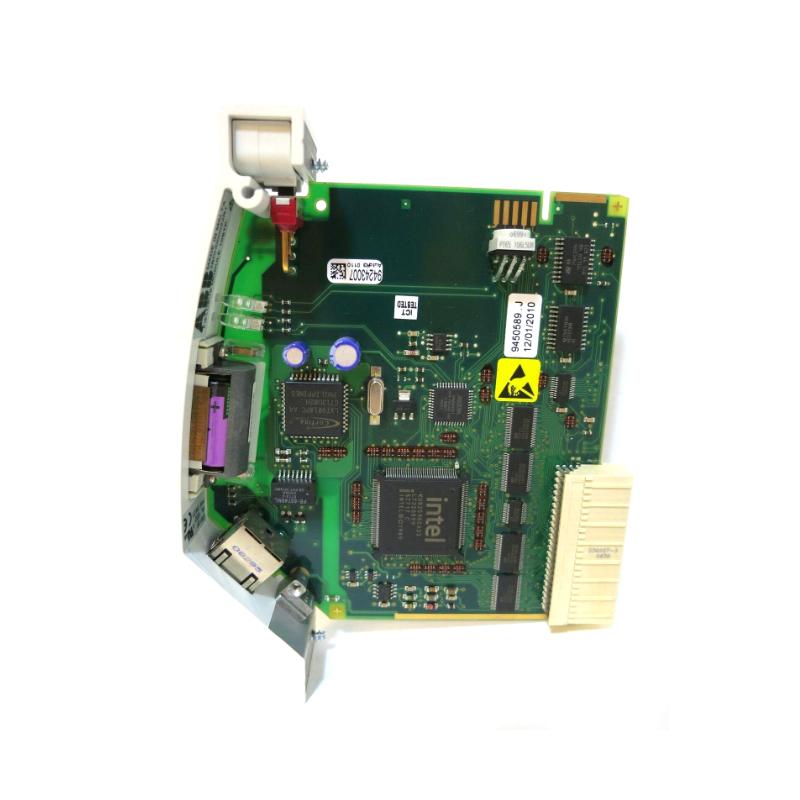

The ABB EI802F is a high-performance encoder interface module designed for precise motion feedback integration in industrial automation systems. Engineered to bridge rotary or linear encoder signals with drive and control units, the EI802F enhances positional accuracy and motion stability in complex machinery. Whether deployed in robotics, CNC, packaging, or material handling, this module delivers reliable data fidelity, robust signal tolerance, and straightforward installation — helping systems achieve precise motion control with dependable performance. Built with ABB’s industrial know-how, the EI802F supports long-term operational consistency while simplifying engineering and maintenance tasks.

Technical Specifications

Specification	Details
Brand	ABB
Model	EI802F
Module Type	Encoder Interface Module
Primary Function	Conversion and conditioning of encoder feedback signals
Encoder Compatibility	Incremental, TTL/HTL line drivers
Signal Channels	A, B, Z (quadrature) plus direction/enable
Mounting Method	DIN rail or panel mount
Dimensions (L × W × H)	110 mm × 75 mm × 35 mm
Weight	0.18 kg
Operating Temperature Range	−10 °C to +55 °C
Protection Rating	IP20 when installed in enclosure
Indicators	Multi-status LEDs (Signal Valid, Fault, Power)

Recommended Related Models

ABB EI801A – Basic Encoder Interface Module
ABB EI803F – Enhanced Feedback Interface with Differential Inputs
ABB DSC 600 Series – Motion Controller Family
ABB ACS880-07 – Drive Platform with Feedback Integration

Popular ABB Motion & Feedback Components

ABB BSM Servo Motors – Precision motion motor line
ABB FSM Servo Drives – Motion drive solutions
ABB ACS580 – Standard Low-Voltage Variable Frequency Drives
ABB IMfinity® MCP – Motor control & protection platform

Applications

The EI802F excels in systems where accurate position or speed feedback is essential:

CNC axis motion feedback conditioning
Robotic joint position sensing and correction
Packaging and labeling machinery requiring repeatable motion profiles
Conveyor speed and position monitoring
Encoder signal conditioning for industrial drives

Advantages

Reliable Encoder Signal Conditioning
Processes incremental encoder signals with high fidelity, ensuring accurate motion feedback for control systems.

Compact Industrial Package
Space-efficient design easily fits in control panels or distributed mounting locations.

Enhanced Diagnostics
Status LEDs provide intuitive feedback on signal validity and module health, speeding commissioning and troubleshooting.

Flexible Mounting Options
Supports both DIN-rail and panel mounting configurations for installation flexibility.

Industrial-Ready Design
Robust electrical tolerances and thermal operation enable continuous operation in factory environments.

Technical FAQs

What is the ABB EI802F used for?
It’s an encoder interface module that conditions encoder feedback signals for drive and control systems.
What encoder types does it support?
Incremental encoders with TTL/HTL line driver signals.
What are the module’s dimensions?
Approximately 110 mm × 75 mm × 35 mm.
How much does the module weigh?
Around 0.18 kg.
What temperature range can it operate in?
Designed for −10 °C to +55 °C industrial environments.
What mounting methods are supported?
DIN-rail or panel mount inside an appropriate enclosure.
Does it provide diagnostic feedback?
Yes — multi-status LED indicators relay signal validity and fault conditions.
Can it be used in CNC motion systems?
Yes — ideal for encoder feedback conditioning in precision axis control.
Is it compatible with servo drives?
Yes — designed to interface seamlessly with motion controllers and servo drive feedback loops.
Why choose the EI802F for automation systems?
It delivers accurate encoder signal conditioning, robust industrial design, and straightforward integration, making it a dependable choice for motion feedback applications where positional accuracy matters.
