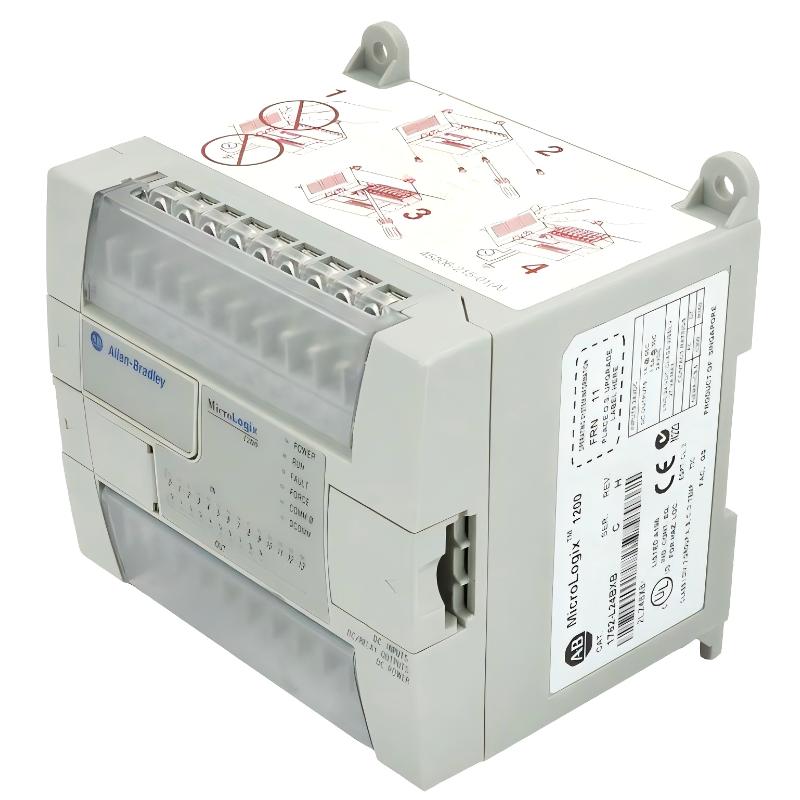

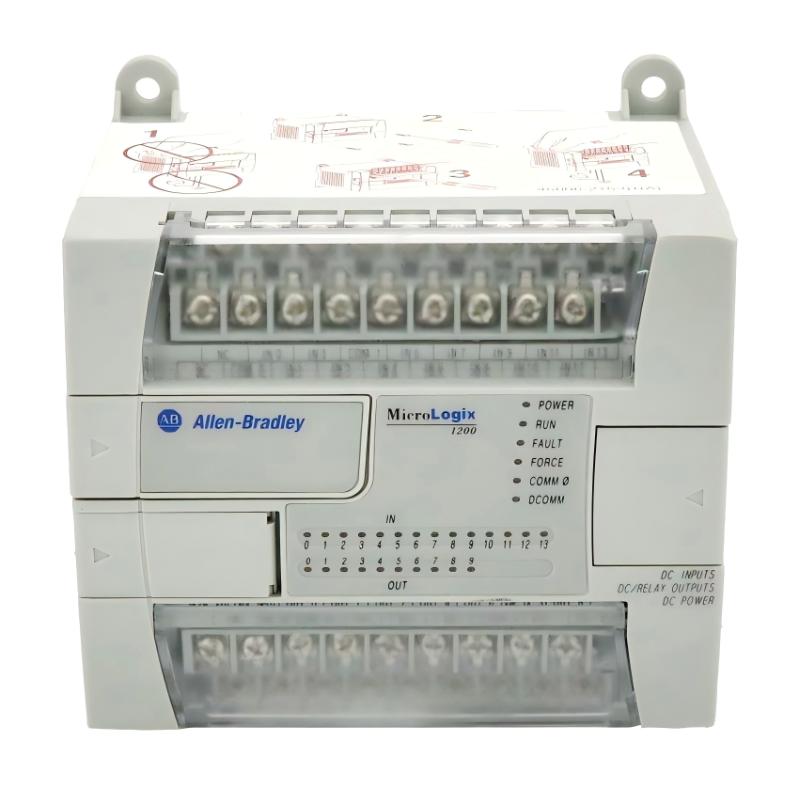

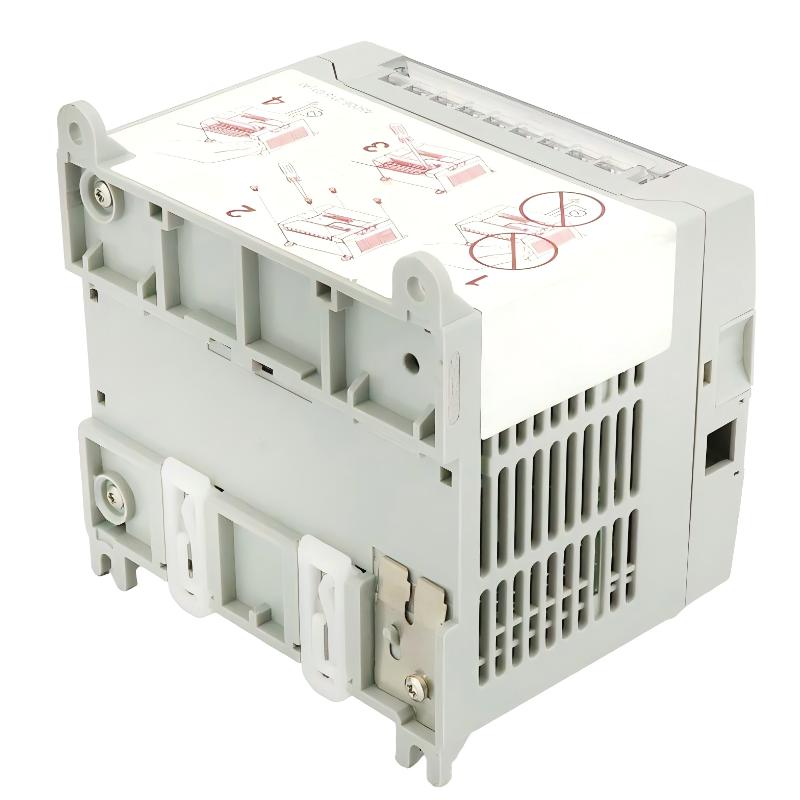

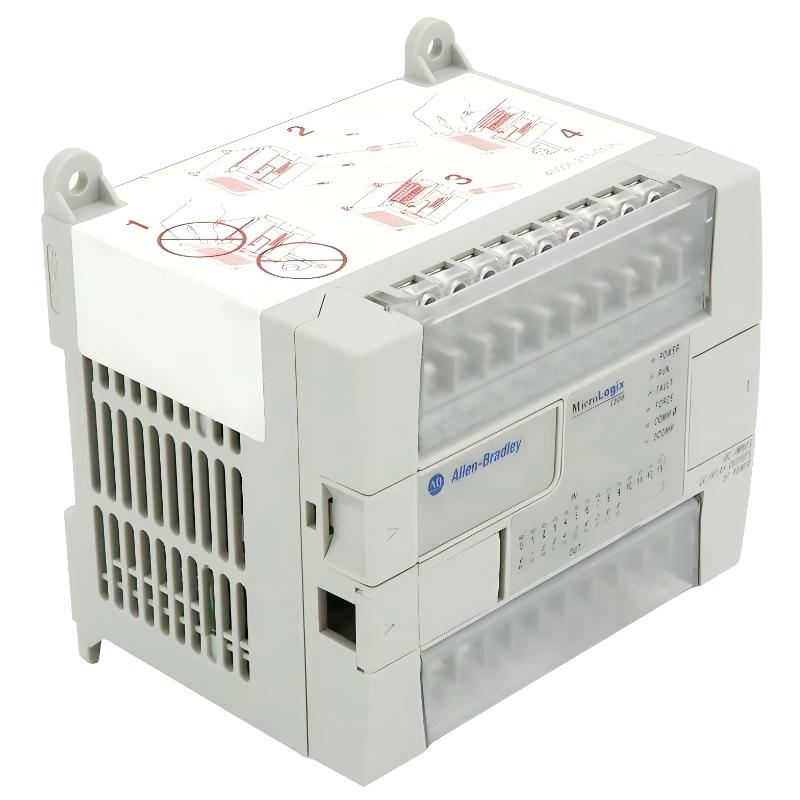

The 1762-L24BXB from Rockwell Automation is a MicroLogix 1200 series compact programmable logic controller (PLC) designed for small to medium industrial automation systems.
It is an all-in-one controller that integrates CPU, power supply, digital I/O, and serial communication in a single unit. It is widely used in machinery control, conveyors, packaging systems, HVAC, and general factory automation.
Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1762-L24BXB |
| Series | MicroLogix 1200 |
| Power Supply | 24 V DC |
| Inputs | 10 standard 24 V DC + 4 high-speed 24 V DC inputs |
| Outputs | 5 relay + 4 standard 24 V DC FET + 1 high-speed FET |
| Total I/O | 24 points |
| Communication | RS-232 (8-pin mini-DIN) |
| Protocols | DF1, DH-485, ASCII, Modbus RTU |
| Memory | ~6 KB user memory |
| Input Type | 24 V DC sink/source |
| Output Type | Relay + transistor (FET) mix |
| Operating Temperature | 0°C to 55°C |
| Power Consumption | ~27 W |
| Mounting | DIN rail / panel mount |
Physical Dimensions
- 90 × 110 × 87 mm (H × W × D)
- Width is larger than smaller 24-point models due to expanded I/O layout.
Weight
- Approximately 0.9 kg (2.0 lb shipping weight)
Key Features
- Compact integrated PLC (CPU + power + I/O)
- 24 total I/O points with mixed output types
- Includes high-speed inputs and high-speed output capability
-
Supports multiple industrial communication protocols:
- DF1
- DH-485
- Modbus RTU
- ASCII
- Built-in RS-232 programming port
- Flexible output design (relay + transistor/FET)
- DIN rail or panel mounting
