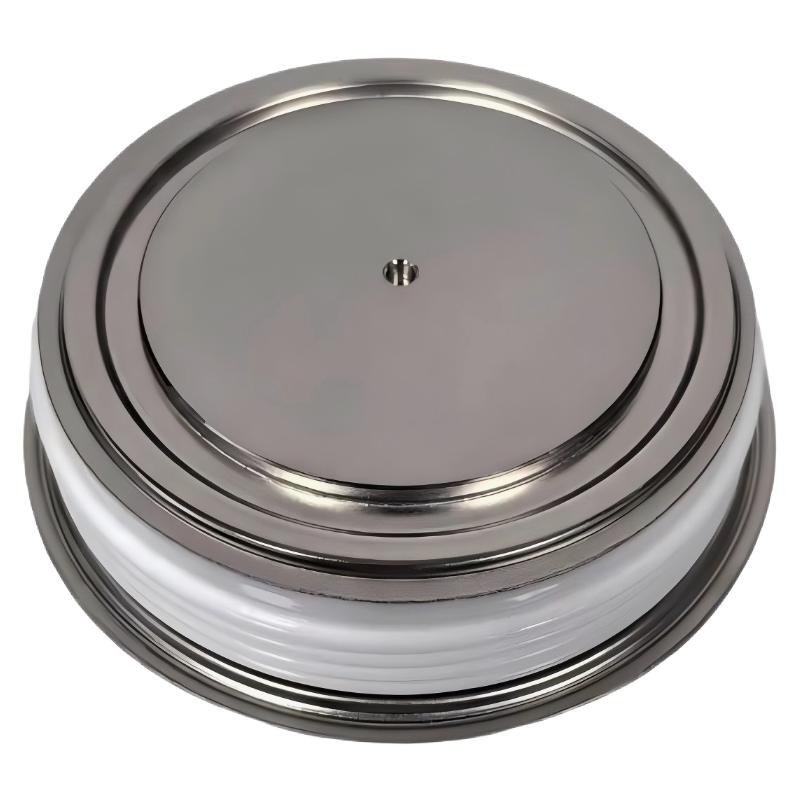

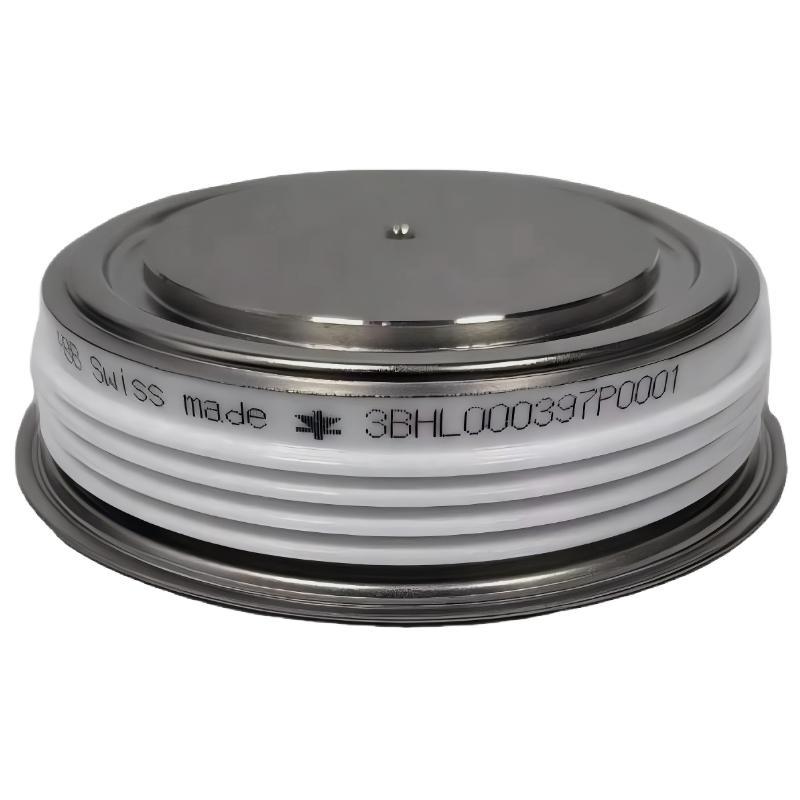

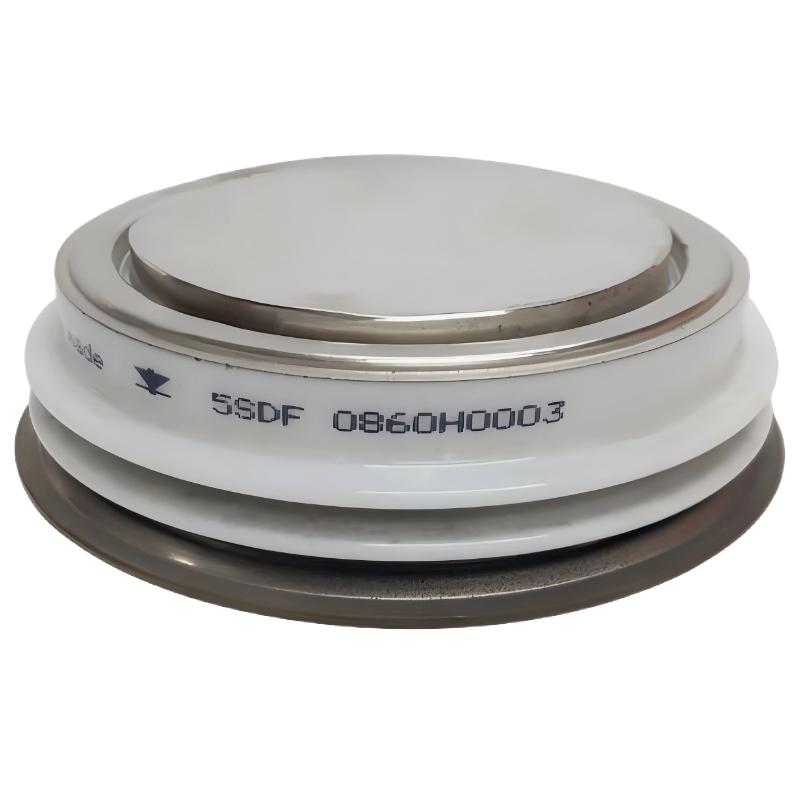

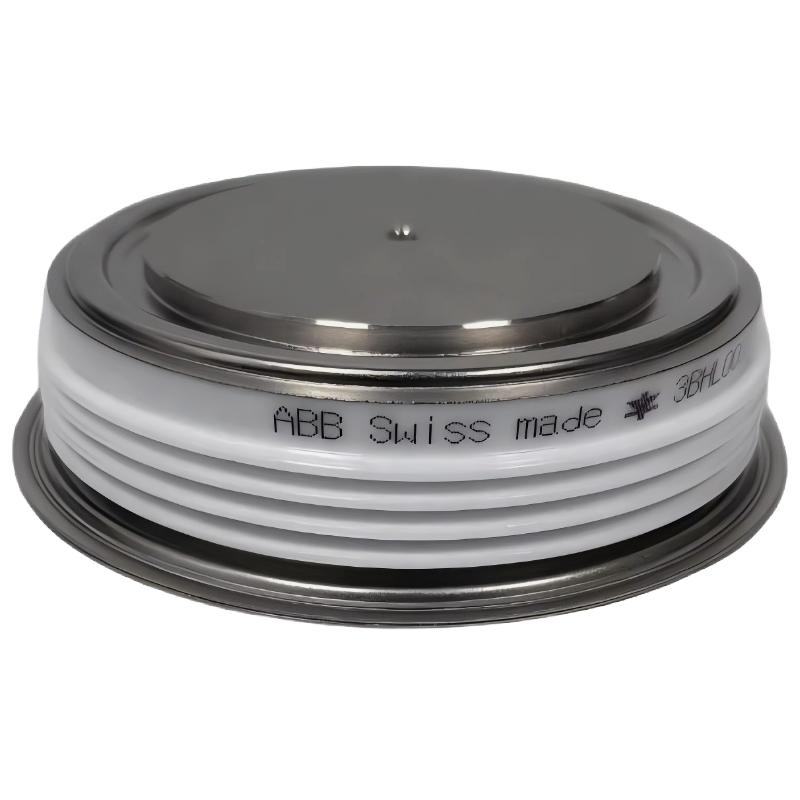

The ABB 5SDF0860H0003 3BHL000397P0001 Diode Module delivers high-performance rectification for industrial power applications. With a 68 mm diameter and a robust design, it is engineered to handle high currents reliably, ensuring stable operation in motor drives, inverters, and renewable energy systems. Compact, efficient, and durable, it provides a trusted solution for demanding industrial electrical environments.

Technical Specifications

Feature	Specification
Module Type	Diode Module
Function	AC-to-DC rectification for high-power industrial systems
Diameter	68 mm
Weight	1.11 kg (2.448 lb)
Protection	Thermal- and vibration-resistant
Operating Environment	Industrial power electronics

Key Applications

The ABB 5SDF0860H0003 Diode Module is engineered for high-power industrial systems requiring dependable current rectification and voltage regulation. Common applications include:

High-current rectifier assemblies in industrial drives
Power electronics modules in energy generation systems
Integration into motor drives, inverters, and converters
Ensuring stable operation in renewable energy installations
Supporting industrial automation requiring precise power control

Its robust and high-capacity design enables reliable performance under demanding electrical conditions.

Core Advantages

High Current Capacity: Handles substantial loads without compromising performance.
Robust Construction: Resistant to thermal stress, vibration, and electrical transients.
Precision Engineering: Minimizes voltage drop for efficient power conversion.
Compact Yet Powerful: 68 mm diameter enables integration into various industrial assemblies.
Durable Industrial Performance: Built for long-term, reliable operation in challenging environments.

Technical FAQs

Q: What is the main purpose of the 5SDF0860H0003 Diode Module?
A: It rectifies AC to DC current in high-power industrial applications.
Q: Can it handle high-voltage and high-current operations?
A: Yes, it is specifically designed for demanding industrial power systems.
Q: Is it resistant to thermal fluctuations?
A: Absolutely, the module is engineered to withstand wide temperature ranges.
Q: How is it installed in industrial assemblies?
A: Its cylindrical 68 mm diameter allows secure mounting in rectifier stacks or power modules.
Q: Does it improve overall system efficiency?
A: Yes, its low forward voltage drop reduces energy losses in power conversion.
Q: Is it vibration and shock resistant?
A: Yes, it is designed to maintain reliable performance in high-vibration environments.
Q: Can it be used in renewable energy systems?
A: Yes, it is suitable for solar inverters, wind converters, and other renewable power electronics.
Q: What kind of maintenance does it require?
A: Minimal; mainly periodic inspection of electrical connections and temperature.
Q: Can multiple diodes be combined in parallel or series?
A: Yes, it supports modular assembly for scalable high-power applications.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial conditions with proper usage.
