Introduction

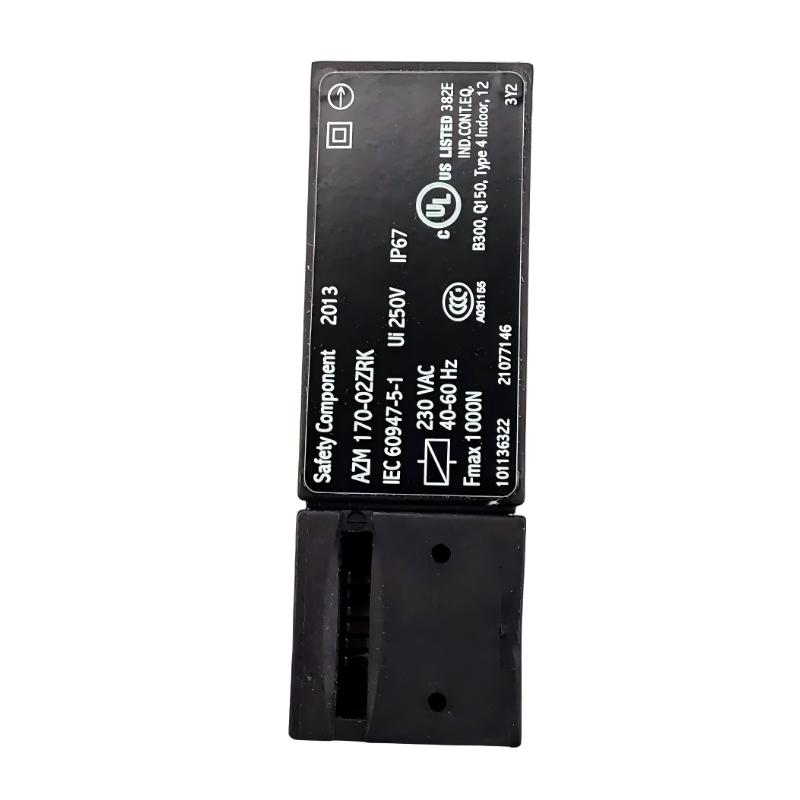

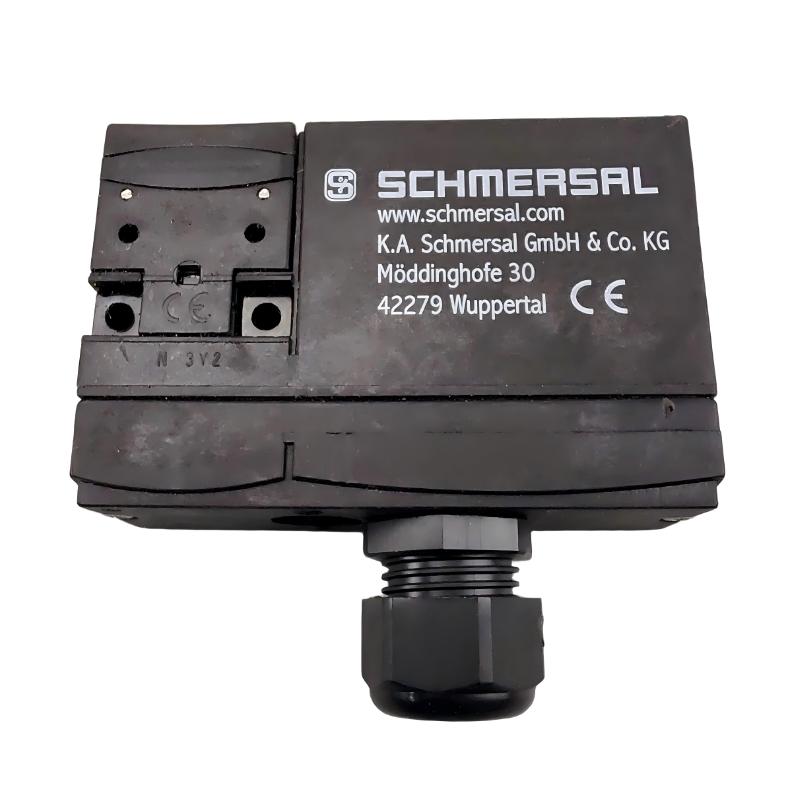

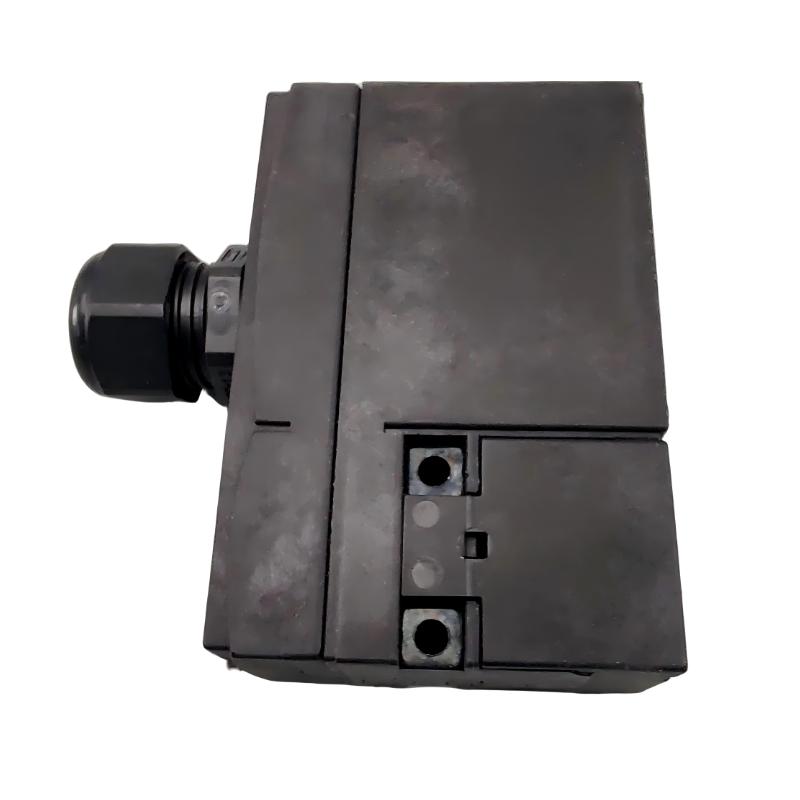

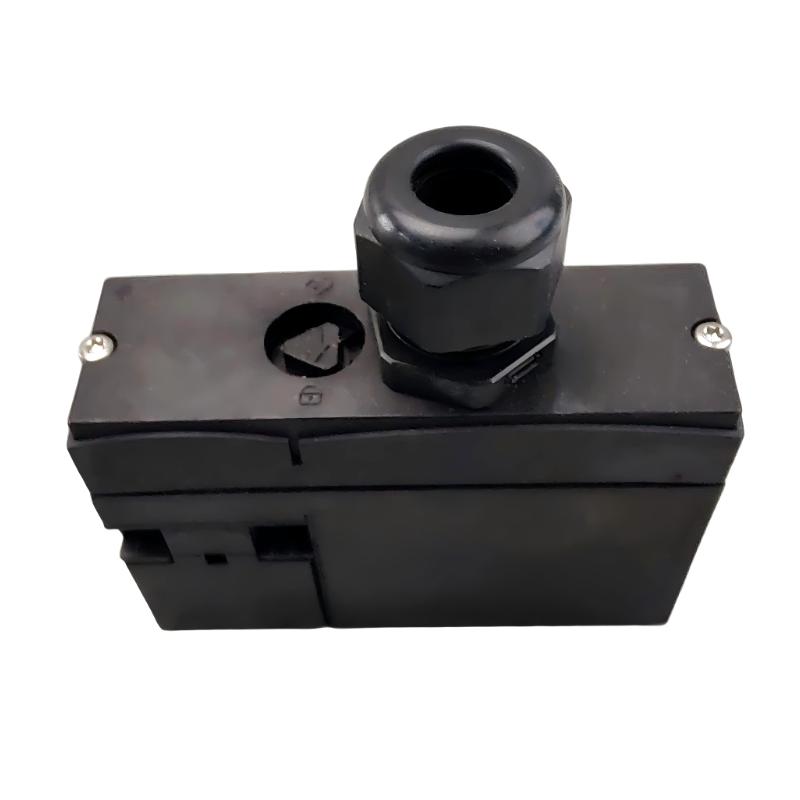

The ABB AZM 170-02ZRK 3BHB006872P0002 Safety Lock provides industrial-grade protection for access control and machinery safety. Compact yet robust, it ensures secure interlocking of doors and panels while providing reliable feedback to safety control systems. Designed for demanding environments, it offers precise operation, durability, and compliance with industrial safety standards.

Technical Specifications

Feature	Specification
Module Type	Safety Lock
Function	Industrial interlocking for access control
Dimensions (L × W × H)	90 × 25 × 60 mm
Weight	0.3 kg (0.661 lb)
Protection	Vibration- and mechanical-resistant
Operating Environment	Industrial automation and safety systems

Applications

The ABB AZM 170-02ZRK Safety Lock is a compact, high-performance interlocking device designed for industrial safety and access control. Common applications include:

Securing safety doors and access panels in automated machinery
Integration with safety relays and control systems for compliance with industrial safety standards
Locking mechanisms for hazardous zones in production and processing plants
Machine access control in automated manufacturing lines
Ensuring personnel safety in energy, chemical, and heavy industry environments

Its precise design ensures reliable operation in environments requiring high safety integrity.

Advantages

High Safety Performance: Meets industrial safety standards for personnel protection.
Compact Design: 90 × 25 × 60 mm, ideal for tight installation spaces.
Durable Construction: Resistant to mechanical stress, vibration, and environmental factors.
Easy Integration: Compatible with ABB safety systems and relays.
Reliable Operation: Provides secure locking and consistent performance over long-term use.

Technical FAQs

Q: What is the primary function of the AZM 170-02ZRK?
A: It serves as a safety interlock to prevent unauthorized access to hazardous areas.
Q: Can it be integrated with safety relays and controllers?
A: Yes, it is designed for seamless integration into ABB safety systems.
Q: What safety standards does it comply with?
A: It meets international industrial safety standards for personnel protection and machine safety.
Q: Is it suitable for high-vibration industrial environments?
A: Yes, the module is robust and designed to withstand mechanical vibrations.
Q: How is it mounted?
A: The compact form factor allows secure mounting on doors or machine enclosures.
Q: Does it provide feedback to control systems?
A: Yes, it can signal the locked/unlocked state to connected safety controllers.
Q: Can it operate continuously in automated systems?
A: Yes, it is built for long-term industrial operation with minimal maintenance.
Q: Is it resistant to environmental factors like dust or moisture?
A: Yes, it is designed for typical industrial conditions, providing reliable operation.
Q: Can multiple locks be connected in one safety circuit?
A: Yes, it supports modular safety system integration.
Q: What is the expected operational lifespan?
A: Over 10 years under standard industrial usage.
