Brand:Allen Bradley PLC Item No.:Allen-Bradley 1783-US4T1F Product Origin:USA Product Dimensions:114.5 × 29.6 × 76.8 mm Product Weight:0.26 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

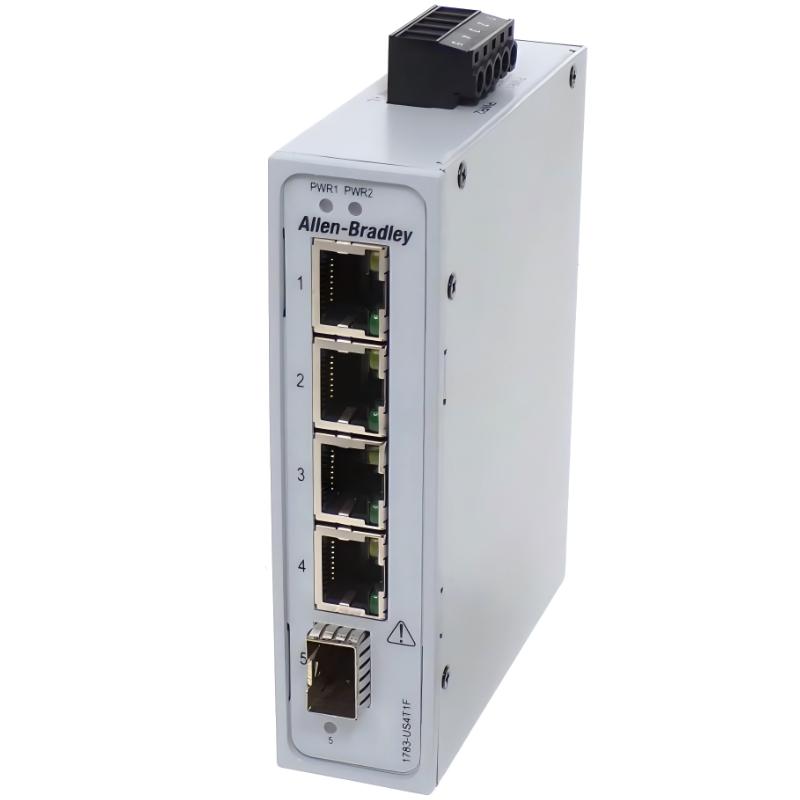

The Allen-Bradley 1783-US4T1F is a compact Stratix 2000 unmanaged industrial Ethernet switch module designed for mixed copper and fiber network architectures in factory automation systems. Developed by Rockwell Automation, it provides reliable, plug-and-play connectivity for industrial environments where stable communication is required without configuration complexity.
With a 4 copper + 1 fiber port design, this model is particularly effective for bridging machine-level Ethernet networks with fiber backbone infrastructure, making it a flexible choice for distributed control systems and OEM machinery.
1783-EMS08T – managed Stratix 2000 switch for advanced control
1783-ETAP – EtherNet/IP diagnostic tap module
Popular Allen-Bradley Models
1756-L81E ControlLogix Controller Module
1769-L33ER CompactLogix CPU Module
1756-EN2T EtherNet/IP Communication Module
1734-IB8 POINT I/O Input Module
1794-ACN Flex I/O Adapter Module
Applications
The 1783-US4T1F is widely used in:
Industrial automation machine networks
Hybrid copper-fiber Ethernet backbone systems
Packaging and production line communication
PLC, HMI, and drive integration networks
OEM equipment requiring fiber uplink connectivity
Factory floor distributed control architectures
Its built-in fiber port makes it especially valuable for extending network distance while maintaining industrial reliability.
Advantages
Hybrid copper + fiber architecture for flexible deployment
Plug-and-play operation with no configuration required
Industrial rugged design suitable for harsh environments
Stable Fast Ethernet performance for control systems

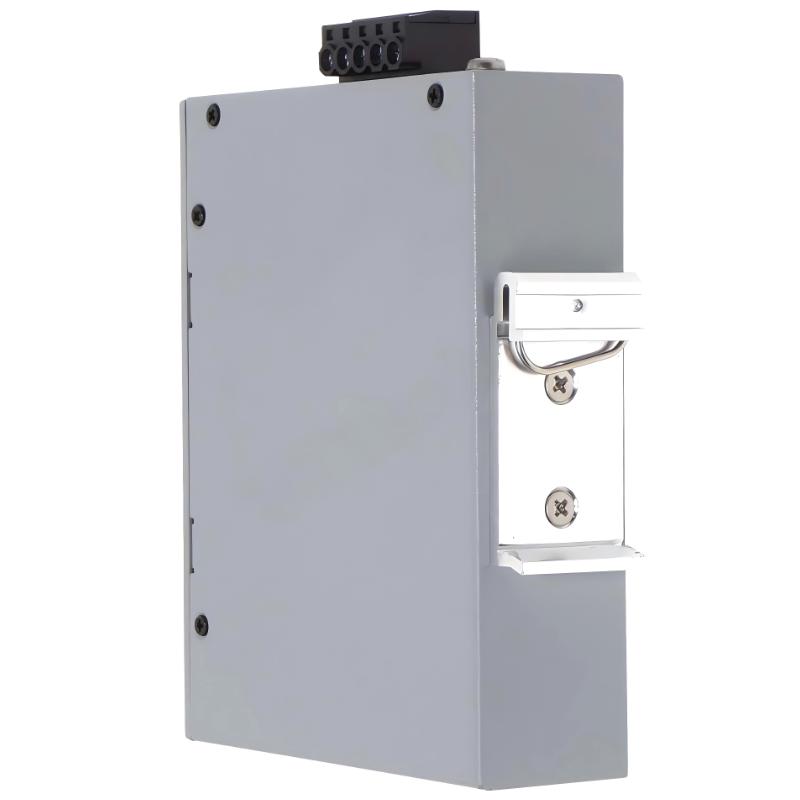

DIN rail mounting for efficient cabinet installation
Low power consumption for continuous operation
Strong compatibility within Rockwell Automation ecosystems
Built-in fiber uplink reduces need for external media converters
Technical FAQs
1. Is the 1783-US4T1F a managed switch?
No, it is an unmanaged industrial Ethernet switch.
2. How many ports does it have?
It has 5 ports: 4 RJ45 copper ports and 1 multimode fiber SFP port.
3. What type of fiber does it support?
100 Mbps multimode fiber via preinstalled SFP module.
4. Does it require configuration?
No configuration is required; it operates as plug-and-play.

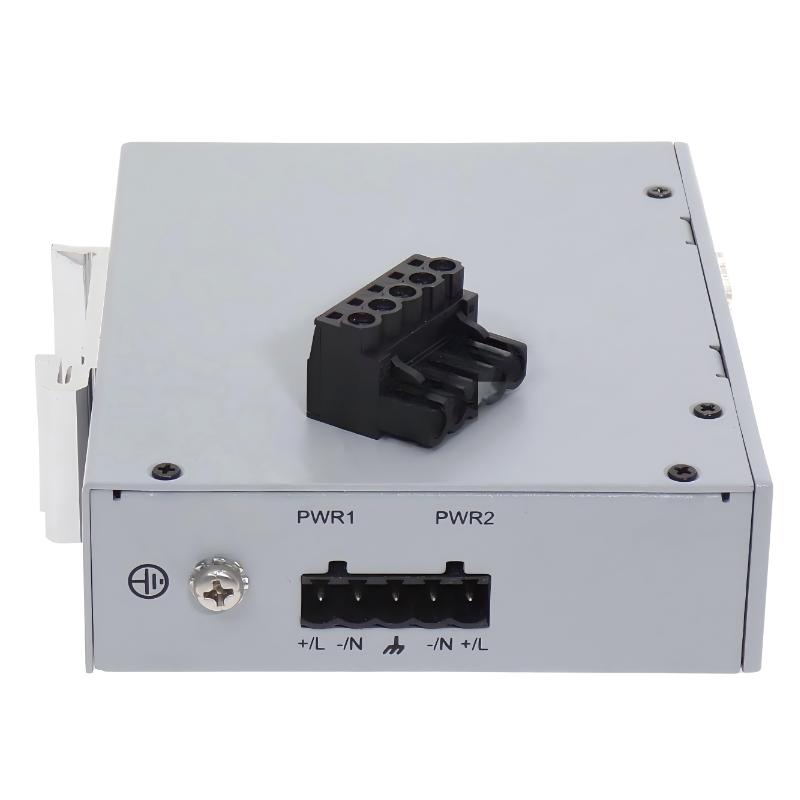

5. What is the power supply requirement?
12–48V DC or 18–30V AC SELV/Class 2 input.
6. What is the operating temperature range?
Typically -40°C to 70°C depending on installation conditions.
7. Can it be used in enterprise IT networks?
It is designed for industrial machine-level networks, not core IT switching.
8. What is the main benefit of the fiber port?
It enables long-distance transmission and noise immunity in industrial environments.
9. Is it suitable for outdoor installation?
No, it is intended for indoor industrial control cabinets only.
10. Why choose this model over copper-only switches?
It provides built-in fiber connectivity, reducing the need for external converters and simplifying network design.
