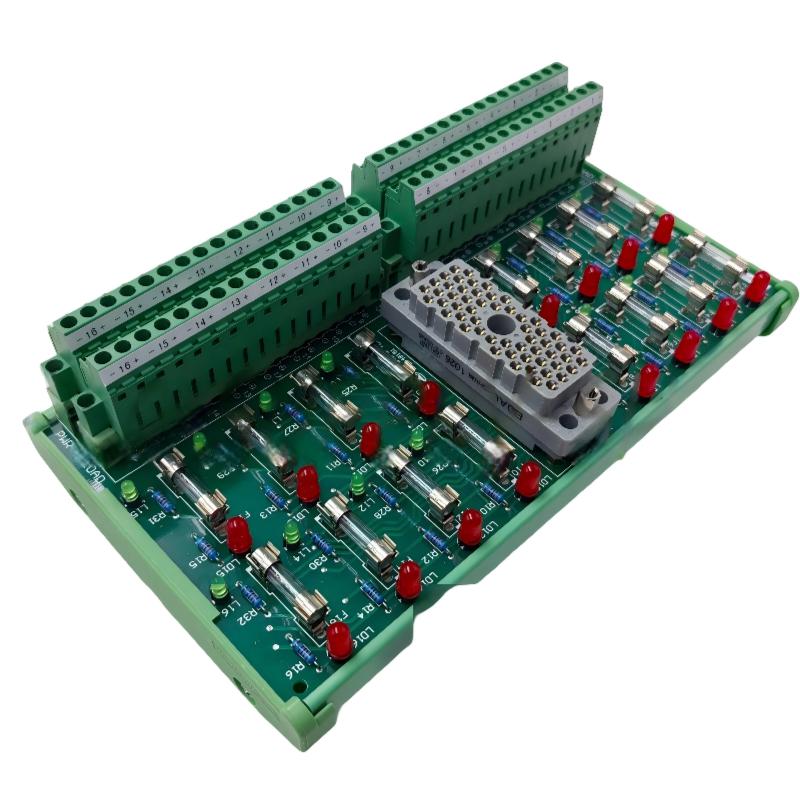

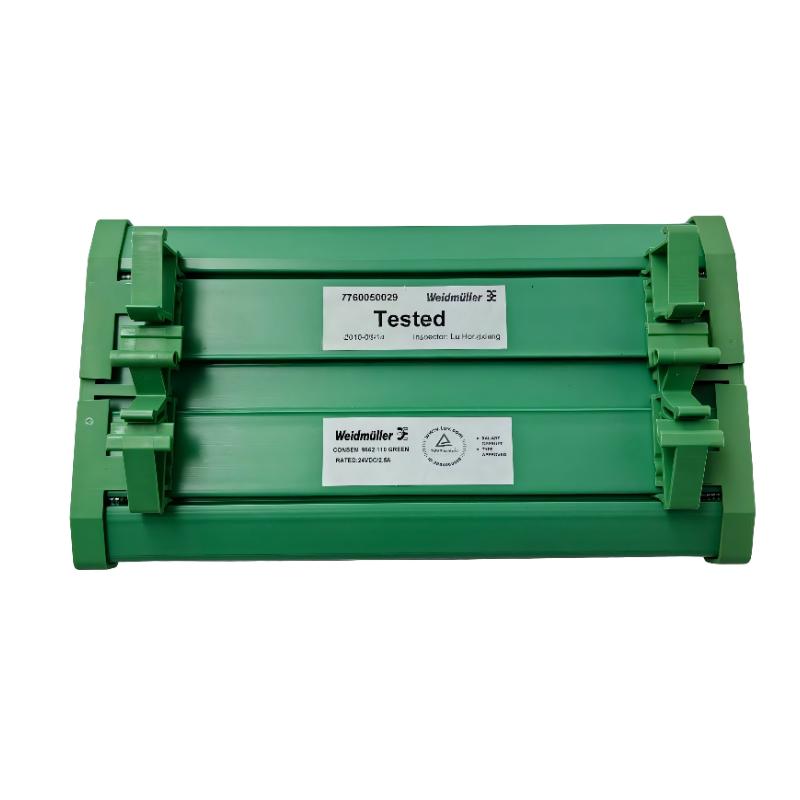

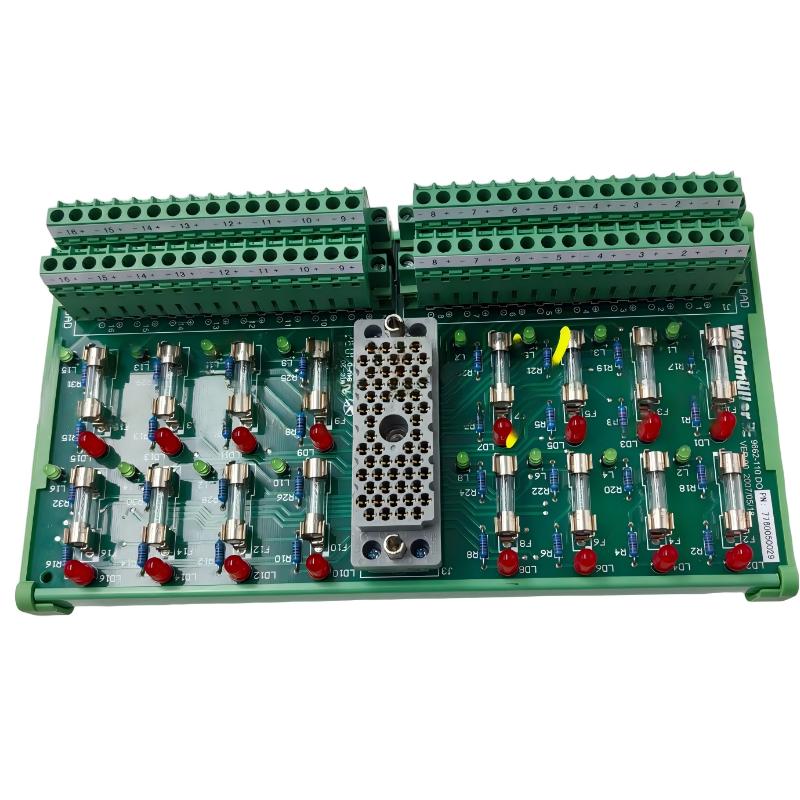

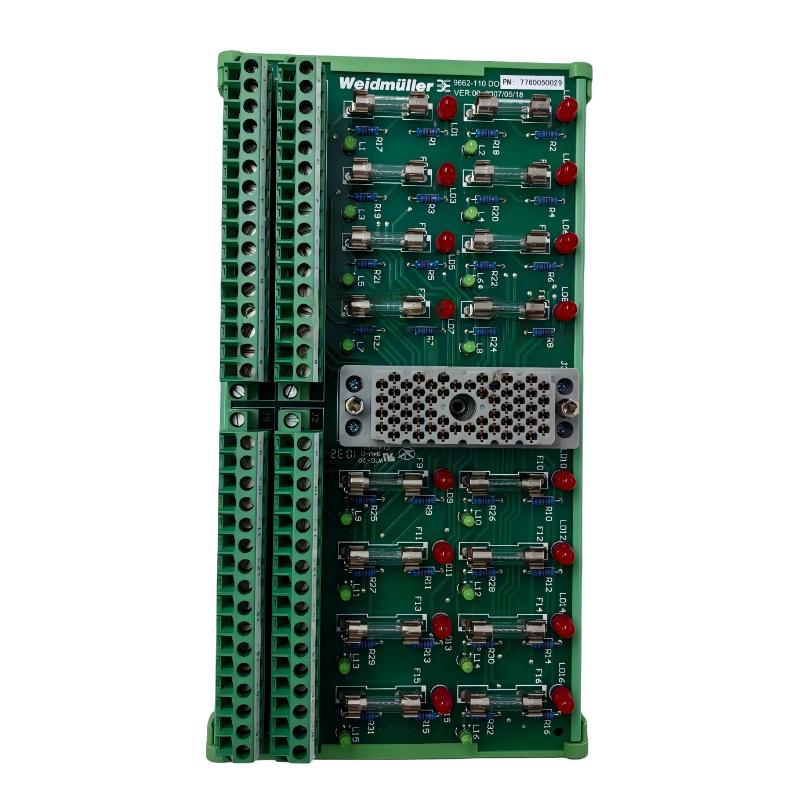

Woodward 9662-110 7760050029 Panel Field Termination

Applications

The Woodward 9662-110 Panel Field Termination is specifically designed to simplify wiring and connectivity in complex industrial control systems. Key applications include:

• Organizing field wiring for turbines, generators, and industrial engines.
• Providing a clean interface for sensors, actuators, and operator devices to connect to control panels.
• Streamlining maintenance and troubleshooting in power generation and industrial automation environments.
• Supporting retrofits or upgrades where clear, modular field connections are critical.
• Facilitating secure signal transmission in high-reliability industrial systems.

This module is ideal for engineers and technicians who need efficient, dependable field wiring solutions.

Advantages

• Simplified Field Wiring: Offers a structured interface to reduce installation errors.
• Compact and Lightweight: 200 × 160 × 40 mm, 0.8 kg – easy to integrate in panels.
• Industrial Durability: Resistant to vibration, mechanical stress, and industrial temperature ranges.
• Maintenance-Friendly: Modular layout enables quick inspection, testing, and replacement of field connections.
• Seamless System Integration: Works directly with Woodward controllers and actuators for reliable performance.

Technical FAQs

1. Which devices can this termination panel support?
   Compatible with Woodward controllers, actuators, and L-Series or UG MAS modules.
2. Does it simplify system troubleshooting?
   Yes, the organized design allows quick identification and testing of field connections.
3. What type of connections are supported?
   Screw terminals and modular connectors for both analog and digital signals.
4. Can it be mounted in standard panels?
   Yes, compact dimensions allow installation in control cabinets or enclosures.
5. Is it suitable for industrial environments?
   Yes, designed to withstand vibration, shock, and typical industrial temperature ranges.
6. Can it handle multiple devices simultaneously?
   Yes, supports connections for multiple sensors, actuators, and control devices.
7. Does it support retrofitting of older control systems?
   Yes, modular design allows integration into existing panels.
8. Is special tooling required for installation?
   No, standard hand tools are sufficient.
9. Does it assist in signal integrity?
   Yes, ensures reliable and interference-resistant connections between field devices and controllers.
10. Can it be used in both temporary and permanent setups?
    Yes, it is suitable for long-term installations as well as temporary testing or service applications.
