Brand:Allen Bradley PLC Item No.:Allen-Bradley 1783-US5T Product Origin:USA Product Dimensions:114.5 × 29.6 × 76.8 mm Product Weight:0.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

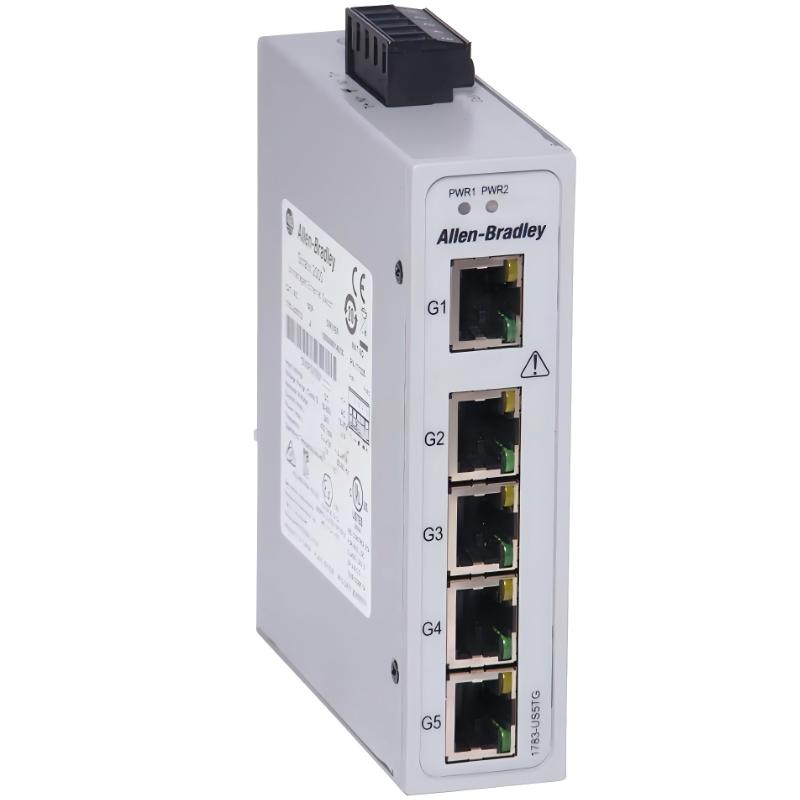

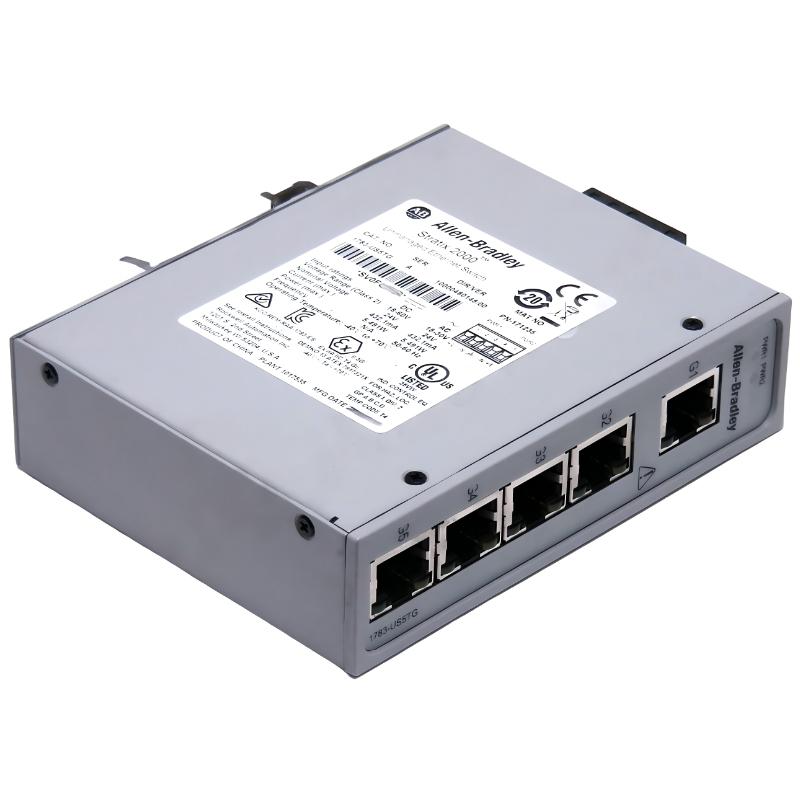

The Allen-Bradley 1783-US5T is a compact Stratix 2000 unmanaged industrial Ethernet switch module designed for reliable, plug-and-play connectivity in automation environments. Built by Rockwell Automation, it provides stable Fast Ethernet communication for machine-level networks where simplicity, durability, and predictable performance are more important than advanced configuration features.

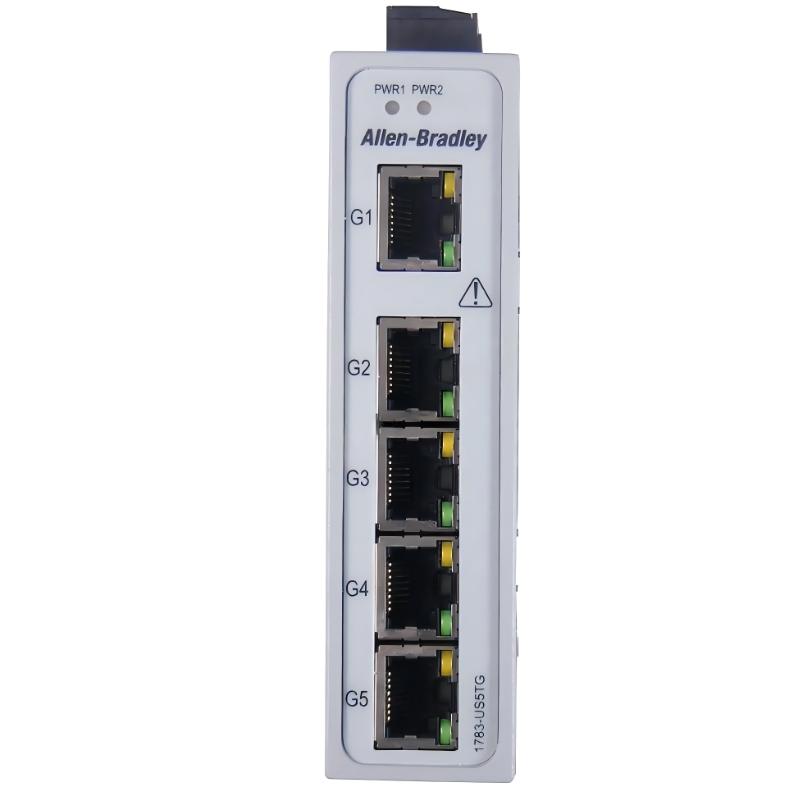

This 5-port switch is widely used in industrial control cabinets to connect PLCs, HMIs, drives, and remote I/O devices within compact automation systems.
1783-EMS08T – managed Stratix switch for advanced control
Popular Allen-Bradley Models
1756-L81E ControlLogix Controller Module
1769-L33ER CompactLogix CPU Module
1756-EN2T EtherNet/IP Communication Module
1734-IB8 POINT I/O Input Module
1794-ACN Flex I/O Adapter Module
Applications
The 1783-US5T is commonly deployed in:
Industrial machine Ethernet networking
Factory automation control systems
PLC, HMI, and drive communication networks
Packaging and assembly line systems
OEM machinery control cabinets
Small to mid-size distributed control architectures
Its compact 5-port design makes it ideal for space-limited control panels requiring reliable internal network distribution.
Advantages
True plug-and-play operation with no configuration required
Compact footprint for tight industrial control cabinets
Stable Fast Ethernet performance for automation traffic
Rugged industrial design for vibration and temperature resistance
DIN rail mounting for fast installation and replacement
Low power consumption for continuous 24/7 operation
Seamless integration with Rockwell Automation systems
Proven reliability in harsh industrial environments
Technical FAQs
1. Is the 1783-US5T a managed switch?
No, it is an unmanaged industrial Ethernet switch.
2. How many ports does it have?
It provides 5 RJ45 Fast Ethernet ports (10/100 Mbps).
3. Does it support gigabit Ethernet?
No, it operates at Fast Ethernet speeds only (10/100 Mbps).
4. What is the power input range?
12–48V DC or 18–30V AC.
5. What is its operating temperature range?
Typically -10°C to 60°C.
6. Does it require configuration?
No, it is plug-and-play.

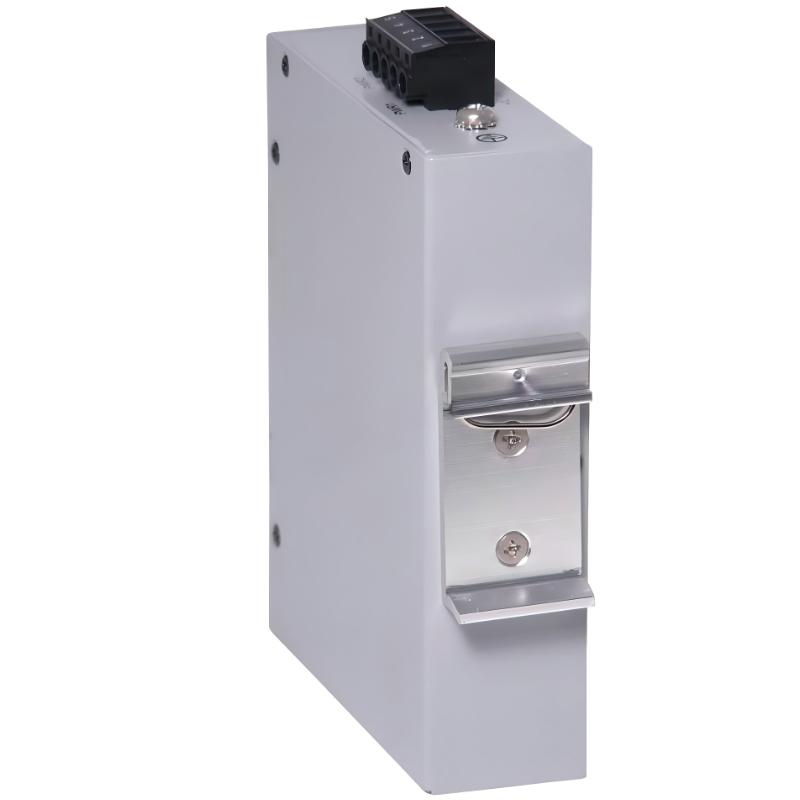

7. What type of mounting does it use?
Standard DIN rail mounting for industrial cabinets.
8. Can it be used in enterprise IT networks?
No, it is designed for industrial machine-level networking.
9. What is its main limitation?
Limited to Fast Ethernet (no gigabit support).
10. Why is it widely used despite being unmanaged?
Because it offers high reliability, simplicity, and stable deterministic communication for industrial control systems.
