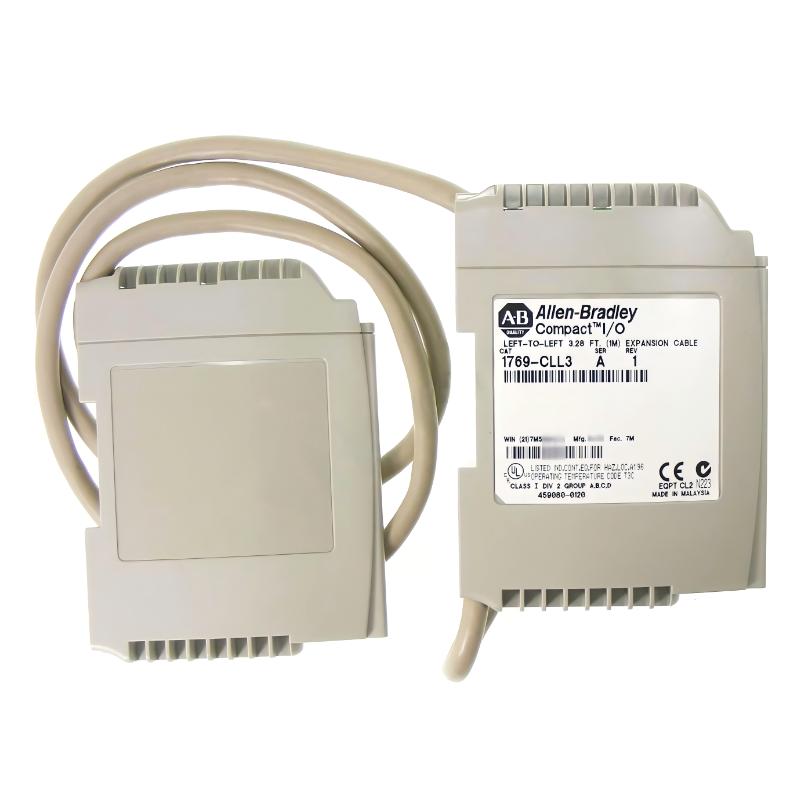

Allen Bradley 1769-CLL3 CompactLogix Compact I/O left-To-left Bus Extension Cable

Applications

The Allen Bradley 1769-CLL3 Bus Extension Cable is designed to expand and connect CompactLogix I/O modules efficiently. Typical applications include:

• Extending left-to-left Compact I/O module connections in automation systems
• Factory automation, process control, and distributed I/O installations
• Environments where modular I/O expansion and reliable communication are required
• Ensuring seamless connectivity between multiple CompactLogix I/O modules

This cable ensures high-speed, dependable data transmission across connected modules.

Advantages

• Reliable Connectivity: Maintains stable communication between connected I/O modules
• Compact Design: Cable length of 1 meter allows flexible installation within control panels
• Easy Installation: Simple plug-and-play connection between left-side I/O modules
• Industrial-Grade Performance: Built for continuous 24/7 operation in harsh conditions
• Efficient Expansion: Supports modular growth of CompactLogix I/O systems

Technical FAQs

1. What is the primary function of this cable?
   It extends the left-to-left connection between Compact I/O modules for reliable data transfer.
2. Which modules is it compatible with?
   Compatible with Allen Bradley CompactLogix I/O modules.
3. What is the maximum supported length?
   This model has a fixed length of 1 meter; longer connections require additional cables.
4. Can it operate in industrial environments?
   Yes, designed for vibration, temperature variations, and industrial stress.
5. Is it shielded for noise protection?
   Yes, designed to minimize interference for reliable signal transmission.
6. How is it installed?
   Plug-and-play connection between left-side I/O modules.
7. Can it be used in retrofit systems?
   Yes, compatible with existing CompactLogix I/O installations.
8. Does it require maintenance?
   Minimal; periodic inspection for wear or loose connections is recommended.
9. Is it suitable for continuous operation?
   Yes, engineered for 24/7 industrial use.
10. Does it support high-speed data transfer?
    Yes, designed to maintain fast communication between connected modules.
