ABB SDCS-PIN-3B Power Interface Board for Industrial Drive Control Systems
ABB SDCS-PIN-3B Power Interface Board for Industrial Drive Control Systems
0.0
Points
Brand:ABB PLC Item No.:ABB SDCS-PIN-3B Product Origin:Sweden Product Dimensions:160 × 80 × 50 mm Product Weight:0.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

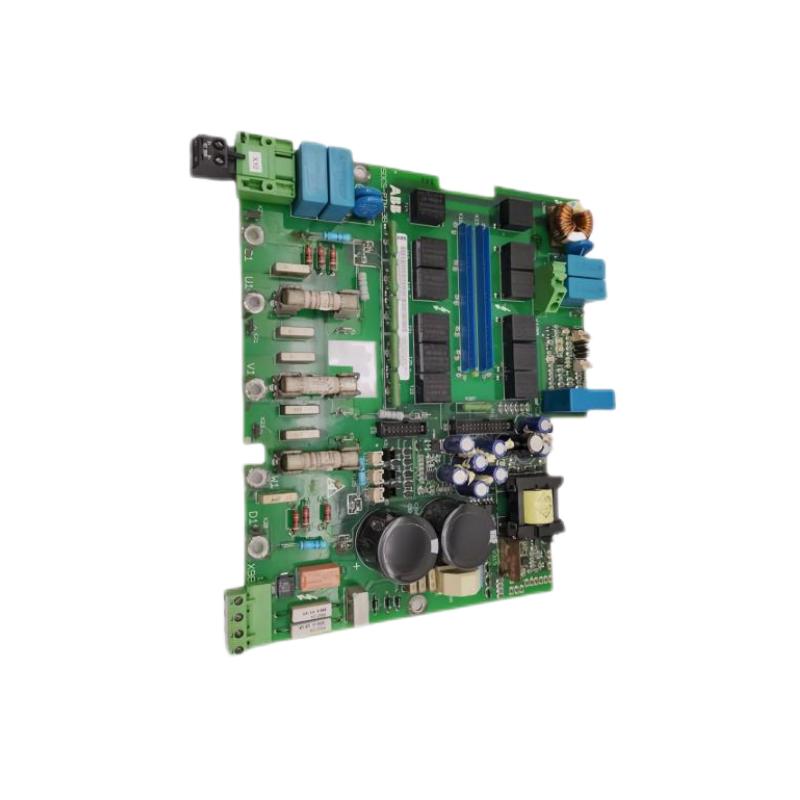

The ABB SDCS-PIN-3B Power Interface Board is a critical component designed for ABB industrial drive control platforms. Built to support reliable power routing and signal interfacing, this board plays an important role in maintaining stable communication between control electronics and power sections inside drive cabinets.
Engineered for demanding industrial environments, the SDCS-PIN-3B ensures consistent performance in systems that require dependable power interface functionality. It integrates seamlessly with ABB SDCS drive control architecture, enabling efficient interaction between control boards, sensors, and automation equipment.
Thanks to its compact structure and rugged design, the module is widely deployed in heavy-duty industrial applications such as motor drive systems, power conversion platforms, and process automation installations. It helps maintain system reliability while supporting high-performance industrial operations.
Technical Specifications
Parameter
Specification
Model
SDCS-PIN-3B
Manufacturer
ABB
Module Type
Power Interface Board
System Compatibility
ABB SDCS Drive Control Systems
Input Voltage
24 V DC
Output Voltage
24 V DC
Mounting Type
Panel or DIN Rail
Operating Temperature
-10°C to +60°C
Protection Class
Industrial Grade / IP20
Current Handling
Up to 3 A depending on application
Dimensions (L × W × H)
160 × 80 × 50 mm
Weight
0.7 kg
The module provides stable power distribution and communication interfacing within drive control systems, ensuring reliable operation in industrial environments.
Recommended Related Models
The following modules are commonly used together with the SDCS-PIN-3B within ABB drive control systems:
Model
Description
SDCS-PIN-3A
Power interface board for SDCS drive systems
SDCS-PIN-11
Control interface module
SDCS-PIN-205
High-performance interface board
SDCS-IOB-3
Drive system I/O interface board
SDCS-MEM-8
Memory expansion board
Popular ABB Industrial Modules
Many industrial automation systems integrate these widely used ABB modules:
Model
Module Type
PM590-ETH
PLC CPU Module
CI840A
Communication Interface Module
AI830A
Analog Input Module
SB822
Redundant Power Supply Module
PP865A
Industrial Operator Panel
Typical Applications
The SDCS-PIN-3B board is deployed in various industrial sectors where reliable power interface and drive control integration are required.
Common applications include:
Industrial motor drive systems
DC drive control cabinets
Metallurgy and rolling mill automation
Power generation equipment
Pump and compressor control systems
Heavy manufacturing production lines
Process automation systems
Its stable power interface capability makes it suitable for environments where continuous system availability is critical.
Core Advantages
Stable Power Interface
The SDCS-PIN-3B ensures reliable power routing between critical drive components, improving overall system stability.
Industrial Reliability
Designed to withstand harsh industrial conditions, the board operates consistently within wide temperature ranges.
Seamless System Integration
Fully compatible with ABB SDCS drive architecture, allowing smooth integration into existing automation systems.
Compact Installation Design
Its compact board layout allows efficient installation within control cabinets and drive racks.
Proven Automation Technology
Based on ABB’s trusted drive control platform, the module delivers dependable performance for long-term industrial operation.
Technical FAQs
1. What is the primary function of the SDCS-PIN-3B module?
It provides power interface and internal signal routing within ABB SDCS drive control systems.
2. Which systems typically use this board?
It is commonly installed in ABB DC drive and industrial motor control systems.
3. What power supply does the module require?
The module generally operates using a 24 V DC supply.
4. Can it be mounted on a DIN rail?
Yes, the module supports panel or DIN-rail mounting depending on system configuration.
5. What operating temperature range does it support?
The board operates reliably between approximately –10°C and +60°C.
6. Is the SDCS-PIN-3B compatible with other SDCS boards?
Yes, it works alongside other boards such as SDCS-PIN-11 and SDCS-IOB-3.
7. Is the module suitable for heavy industrial environments?
Yes, it is designed for demanding applications such as drive control cabinets and process automation systems.
8. Does the module require complex configuration?
In most installations it integrates directly into the SDCS system with minimal setup.
9. What industries typically use this module?
Industries include power generation, metal processing, manufacturing automation, and energy systems.
10. What are the main benefits of using the SDCS-PIN-3B?
Stable power interfacing, reliable drive system operation, and seamless integration with ABB control platforms.
