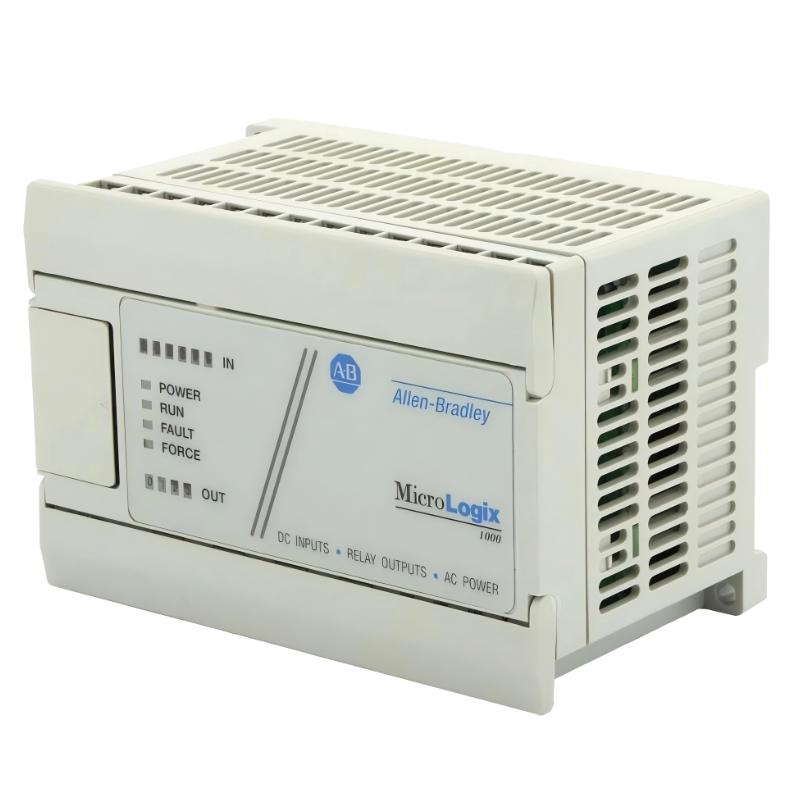

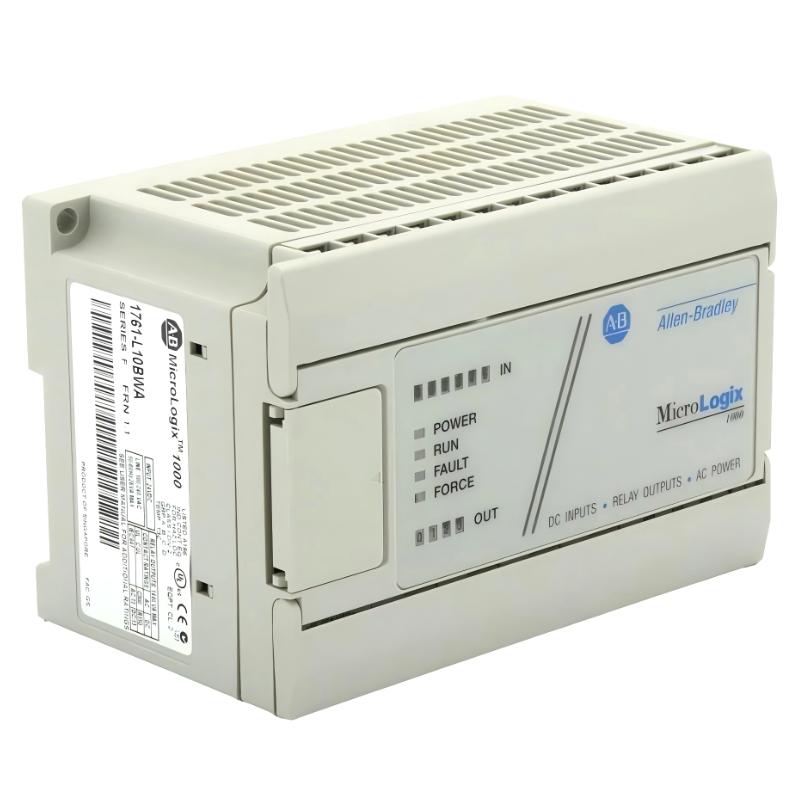

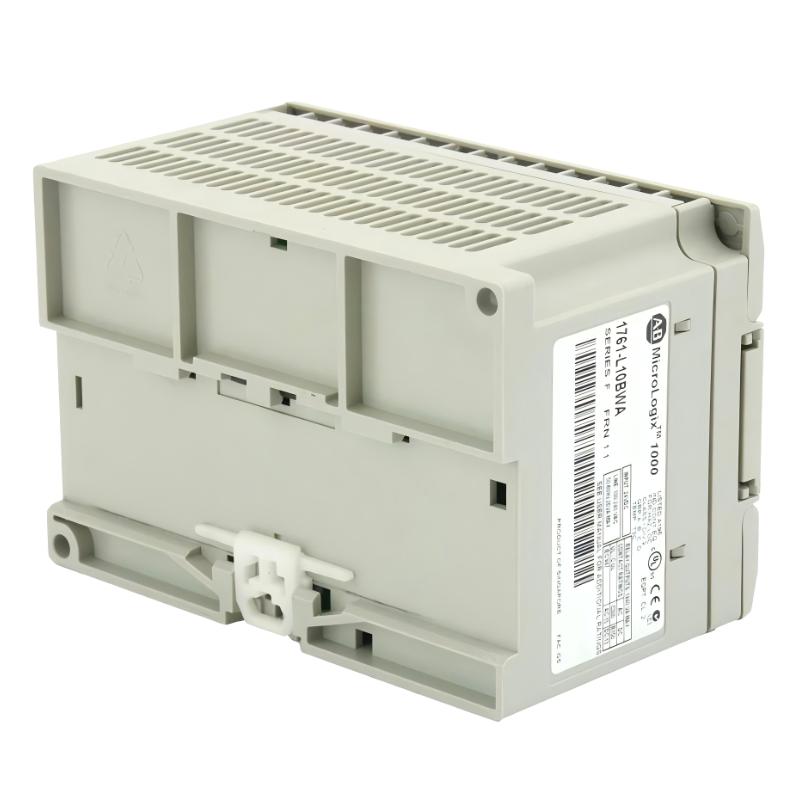

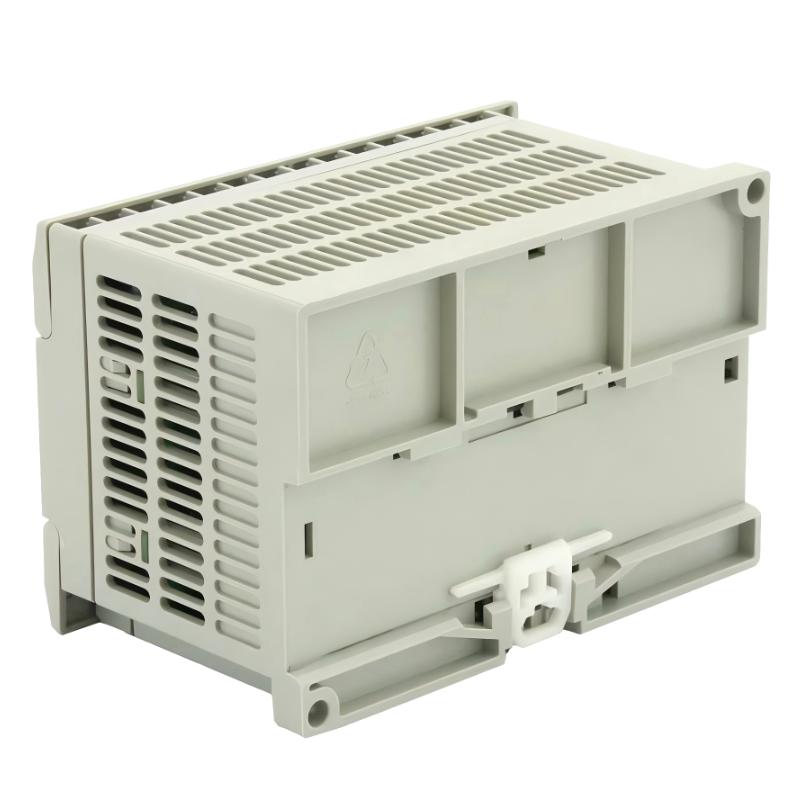

Allen Bradley 1761-L10BWA MicroLogix 1000 Programmable Controller

Typical Application Scenarios

• Small-scale industrial automation systems requiring compact PLC control solutions

• Basic machine control applications such as packaging, conveyors, and sorting equipment

• OEM-built machines with limited I/O requirements and simple logic sequences

• Educational and training setups for PLC programming and industrial automation learning

• Standalone control systems in light manufacturing environments

• Retrofit projects replacing relay-based control systems with PLC logic

• Simple process automation tasks requiring reliable digital I/O handling

• Compact control panels where space and cost efficiency are priorities

Key Advantages

• Compact all-in-one PLC design reduces cabinet space requirements significantly

• Integrated digital I/O simplifies wiring and system configuration

• Reliable relay output structure supports a wide range of industrial loads

• Easy integration into MicroLogix programming environment

• Stable AC power operation supports industrial-grade reliability

• Cost-effective solution for entry-level automation systems

• Simple architecture reduces commissioning and troubleshooting time

• Durable design suitable for long-term industrial operation

Technical FAQs

1. What is the primary function of the 1761-L10BWA?
It is a MicroLogix 1000 programmable controller used for basic industrial automation and machine control tasks.

2. How many I/O points does it support?
It supports a total of 10 I/O points with a combination of digital inputs and relay outputs.

3. What type of inputs does the controller use?
It uses 24V DC digital inputs for field signal acquisition.

4. What type of outputs are provided?
The controller provides relay outputs suitable for switching AC or DC loads.

5. Is the controller suitable for complex automation systems?
No. It is designed for small to medium standalone control applications.

6. Does it support communication functions?
Yes. It includes serial communication for programming and data exchange.

7. Is it still actively manufactured?
No. The MicroLogix 1000 series is discontinued but still widely used in legacy systems.

8. Can it be used for industrial training purposes?
Yes. It is commonly used in educational and training environments.

9. What makes it suitable for small machines?
Its compact size, integrated I/O, and simple programming make it ideal for basic machine control.

10. Does it require external I/O modules?
Not for basic use, as it already includes built-in digital inputs and outputs.
