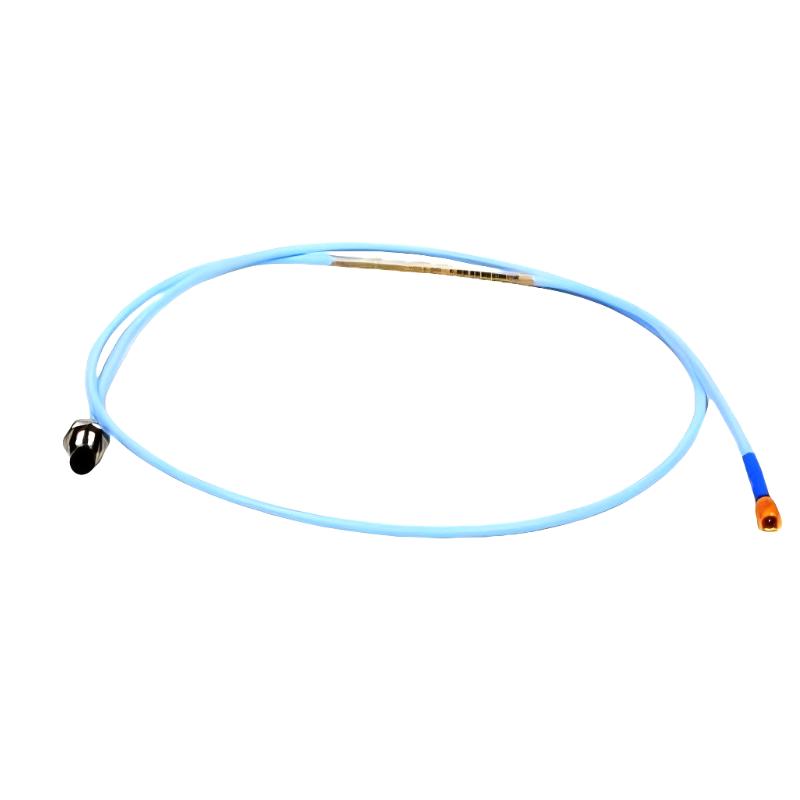

The Bently Nevada 330101-10-40-10-02-05 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for precise shaft vibration and position monitoring in rotating machinery such as turbines, compressors, pumps, and generators.
It uses eddy current sensing technology and operates as a non-contact measurement element within a complete system consisting of a probe, extension cable, and Proximitor sensor. This model is widely applied in industrial condition monitoring and machinery protection systems where high accuracy, stability, and long-term reliability are essential.
The configuration code defines key parameters such as unthreaded length, case length, total cable length, connector type, and hazardous-area approval level. According to the 3300 XL coding structure, the “40” segment typically represents a 4.0-inch case length, and the “10-02-05” segment indicates a 1.0 m cable, ClickLoc connector, and CSA/ATEX/IECEx approval.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-10-40-10-02-05 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System 구성 | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 1.0 in (code 10) |
| Case Length Option | 4.0 in (code 40) |
| Total Cable Length | 1.0 m (code 10) |
| Connector Type | Miniature ClickLoc coaxial connector (code 02) |
| Agency Approval | CSA / ATEX / IECEx (code 05) |
| Operating Temperature | -40°C to +85°C (typical 3300 XL range) |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Probe Assembly Length | Configuration-dependent |
| Cable Length | ~1.0 m |
| Weight | ~0.2–0.4 kg |
| Housing Material | Stainless steel probe body |
| Cable Type | Shielded coaxial cable |
