Introduction

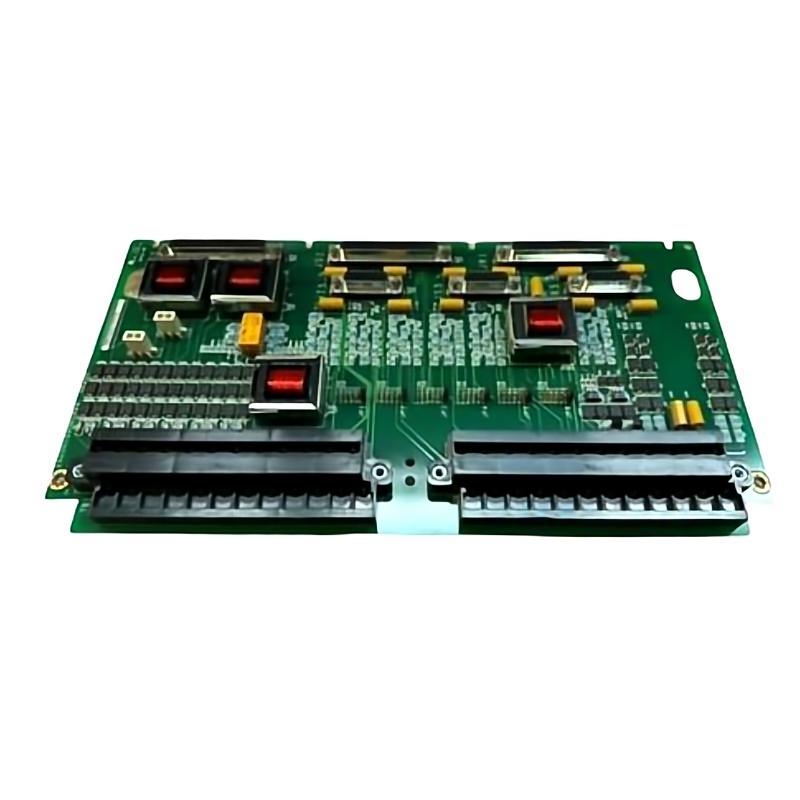

The GE IS200PAICH1B Turbine Protection Board delivers high-performance turbine monitoring and protective control for industrial environments. Designed for reliability, rapid fault detection, and seamless integration, it ensures turbines operate safely and efficiently. Its compact design simplifies installation in existing control panels, making it a versatile solution for modern turbine protection systems.

Technical Specifications

Parameter	Specification
Dimensions (L x W x H)	150 x 50 x 100 mm
Weight	0.4 kg (0.88 lb)
Power Supply	24V DC ±10%
Input Channels	8 digital / 4 analog
Output Channels	4 relay / 2 analog
Operating Temperature	-20°C to 70°C
Humidity	5% – 95% non-condensing
Response Time	< 10 ms
Mounting	DIN rail or panel mount
Compliance	IEC 61508, ISO 9001

Applications

The GE IS200PAICH1B Turbine Protection Board is engineered to deliver precise, real-time protection for industrial turbines across a variety of settings. Its primary applications include:

Steam, gas, and combined-cycle turbines

Industrial generators and turbine-driven compressors

Integration with plant automation and SCADA systems

Emergency shutdown systems and protective relay functions

Environments requiring high-reliability and low-maintenance turbine protection

Compact yet robust, it seamlessly fits into control cabinets, making it ideal for modernizing turbine protection infrastructure.

Advantages

Rapid Fault Response: Detects and isolates issues in milliseconds to prevent turbine damage.

High Durability: Designed to operate reliably in high-temperature, high-vibration industrial environments.

Space-Saving Design: 150 x 50 x 100 mm footprint optimizes panel installation.

Flexible Integration: Compatible with GE and third-party turbine control systems.

Enhanced Safety: Redundant protection channels ensure continuous operation under fault conditions.

Long-Term Reliability: Low maintenance requirements with extended service life.

Technical FAQs

Q: What types of turbine faults are detected?
A: Overspeed, overtemperature, vibration anomalies, electrical imbalances, and sensor failures.
Q: Can the board operate in high-vibration environments?
A: Yes, it is engineered to meet industrial vibration and shock standards.
Q: How does it interface with SCADA systems?
A: Through digital and analog outputs that are fully compatible with standard communication protocols.
Q: What is the response time for protective actions?
A: Typically under 10 milliseconds for rapid fault isolation.
Q: Is it compatible with legacy turbine models?
A: Yes, backward compatibility is maintained via standard I/O configurations.
Q: Does it support redundancy?
A: Yes, critical sensor inputs can be dual-channeled to ensure protection if one input fails.
Q: Are there diagnostic capabilities?
A: Yes, onboard diagnostics include fault logging, alarm reporting, and status monitoring.
Q: Can it operate alongside other protection modules?
A: Absolutely, it integrates into multi-layered turbine protection architectures.
Q: What type of power supply does it require?
A: 24V DC industrial power input with built-in surge protection.
Q: How is firmware updated?
A: Via secure, field-accessible programming ports with version control.
