Introduction

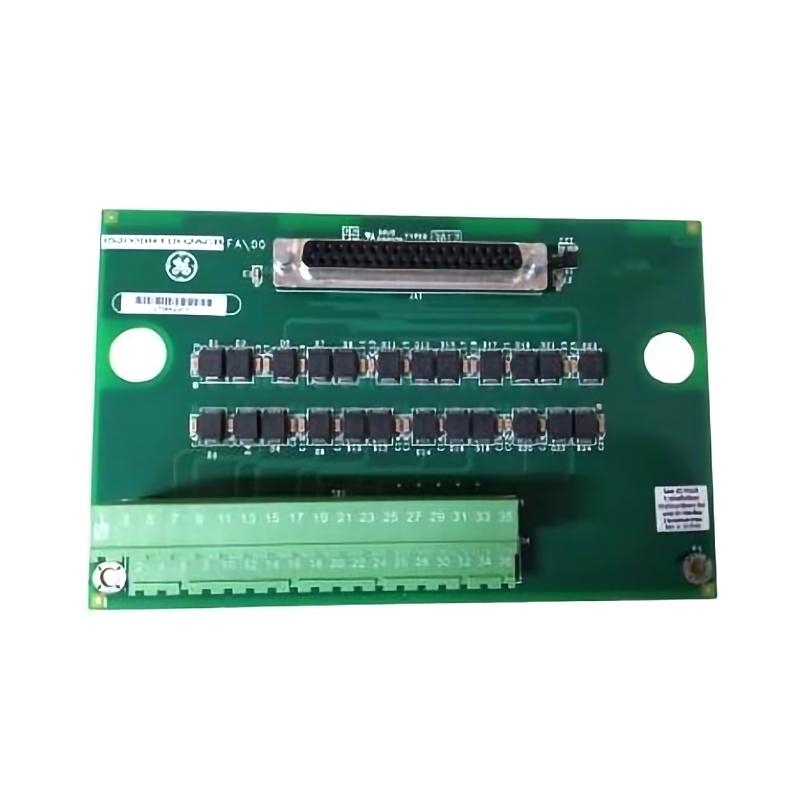

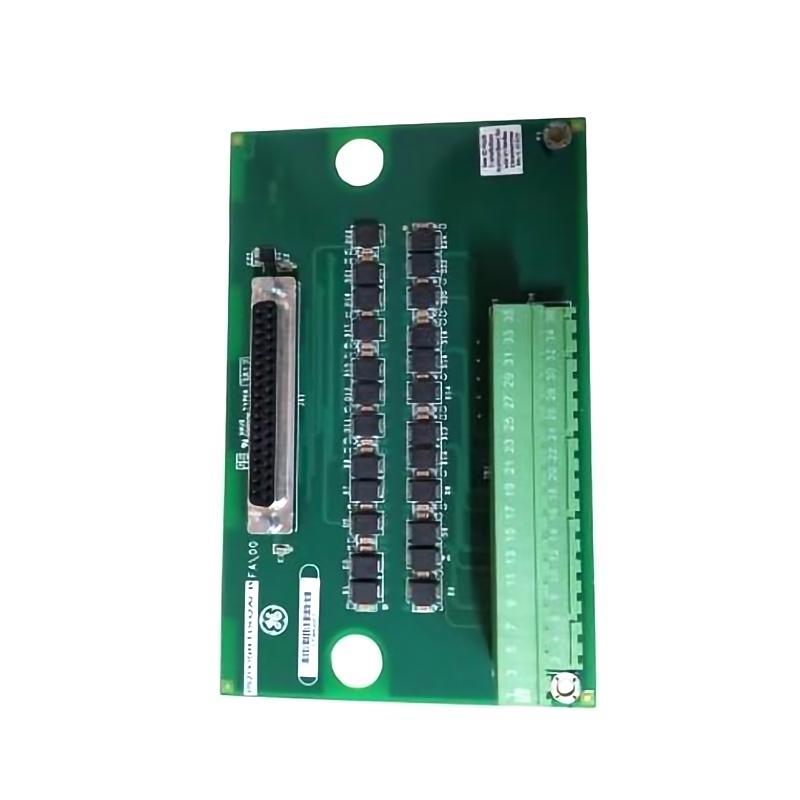

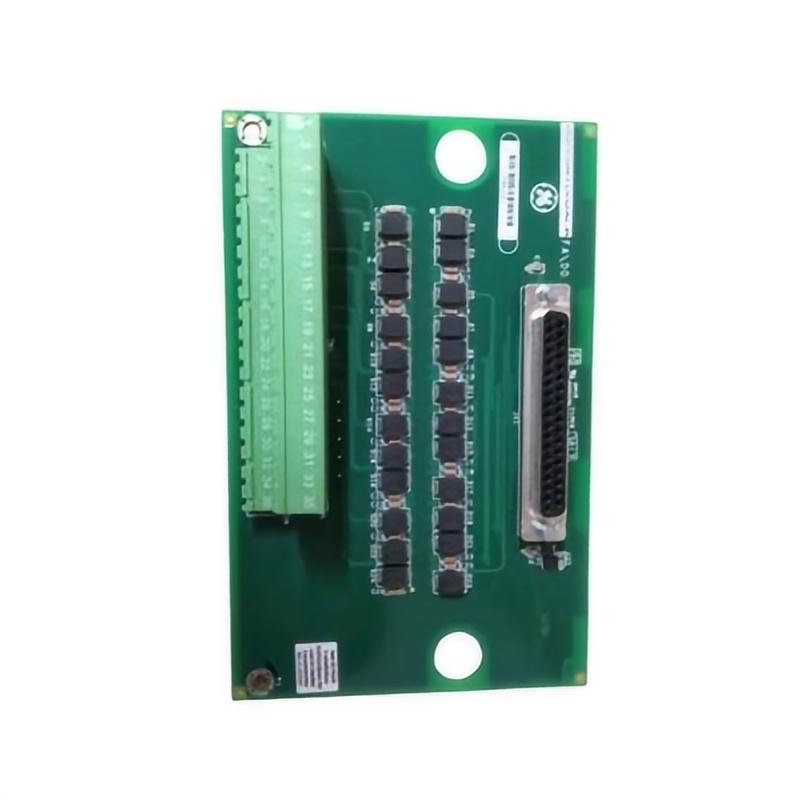

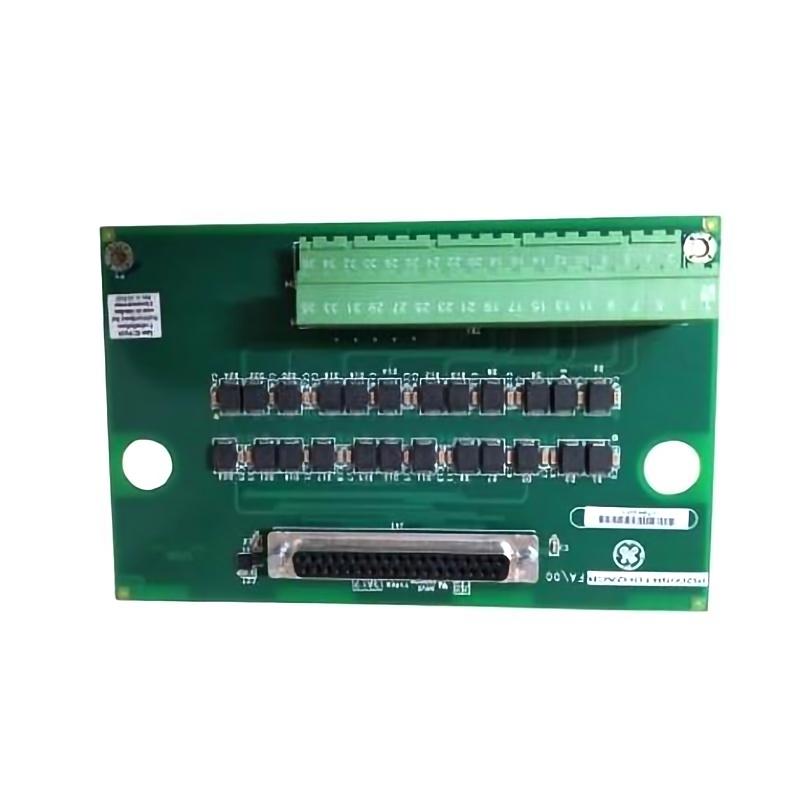

The GE IS200PRTDH1A RTD Terminal Block provides a reliable, precise interface for connecting multiple RTD sensors in industrial systems. Designed for durability, ease of use, and seamless integration, it ensures accurate temperature monitoring while simplifying wiring and maintenance. Its robust design makes it a cornerstone component for turbine protection, process control, and automation systems.

Technical Specifications

Parameter	Specification
Dimensions (L x W x H)	260 × 120 × 35 mm
Weight	0.8 kg (1.76 lb)
Sensor Support	2-wire, 3-wire, 4-wire RTDs
Wire Gauge	Up to 2.5 mm²
Operating Temperature	-20°C to 70°C
Humidity	5% – 95% non-condensing
Mounting	DIN rail or panel mount
Insulation	Electrically isolated terminals
Compliance	IEC 61508, ISO 9001

Applications

The GE IS200PRTDH1A RTD Terminal Block is designed to facilitate accurate temperature measurement and sensor integration in industrial systems. Typical applications include:

Steam, gas, and combined-cycle turbines for temperature monitoring
Industrial boilers and heat exchangers
Integration with turbine protection and control boards
High-precision SCADA and DCS temperature acquisition
Facilities requiring reliable RTD connectivity and robust signal transmission

Its sturdy construction ensures reliable operation in harsh industrial environments while simplifying sensor wiring and maintenance.

Advantages

High Precision Connectivity: Ensures accurate RTD signal transmission for reliable monitoring.
Durable Industrial Design: Withstands vibration, temperature extremes, and humidity variations.
Large Capacity: Supports multiple RTD inputs in a compact yet accessible footprint.
Easy Integration: Compatible with GE turbine protection and control systems as well as third-party setups.
Maintenance-Friendly: Clear labeling and accessible terminals reduce wiring errors and downtime.
Long-Term Reliability: Designed for consistent performance in continuous industrial operation.

Technical FAQs

Q: What type of sensors can be connected?
A: Supports 2-wire, 3-wire, and 4-wire RTD sensors.
Q: What is the maximum wire gauge supported?
A: Compatible with wires up to 2.5 mm².
Q: Can it handle high-temperature environments?
A: Yes, rated for continuous operation up to 70°C.
Q: Is it suitable for high-vibration environments?
A: Yes, industrial-grade construction ensures stable operation under vibration.
Q: How is electrical isolation handled?
A: Each terminal is electrically isolated to prevent cross-talk between sensors.
Q: Does it integrate with GE turbine protection boards?
A: Yes, it is fully compatible with GE turbine control and protection systems.
Q: Can multiple blocks be connected in series?
A: Yes, they can be linked to expand RTD input capacity.
Q: Are diagnostic checks supported?
A: Yes, it supports RTD signal verification via standard system diagnostics.
Q: What mounting options are available?
A: Panel or DIN rail mounting is supported.
Q: Is maintenance easy?
A: Yes, clearly labeled terminals and modular design simplify installation and servicing.
