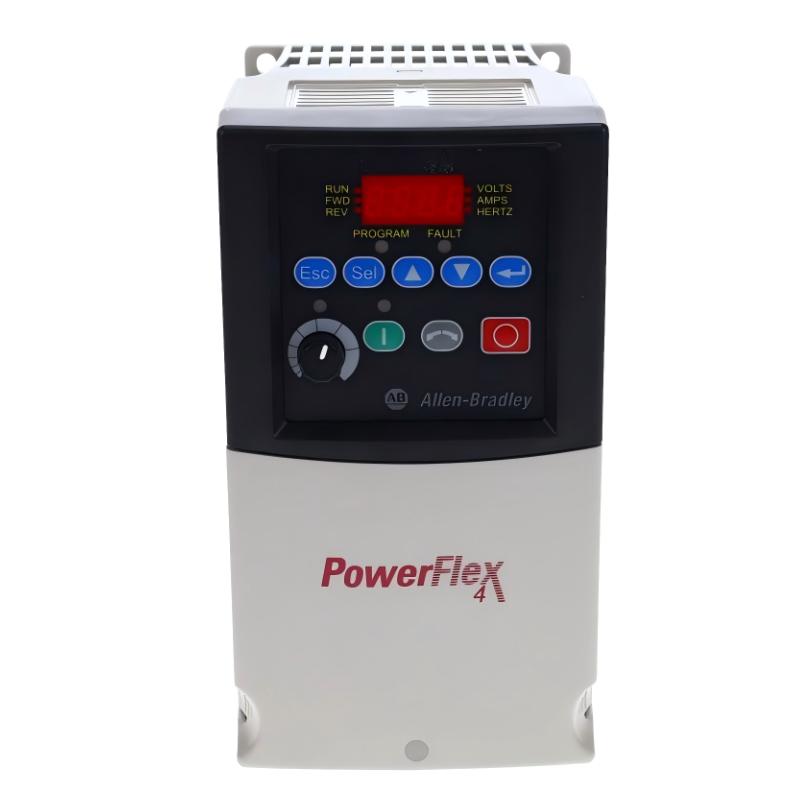

The Allen-Bradley 22A-D8P7N104 is a PowerFlex 4 series AC drive module designed for robust and efficient speed control of 3-phase AC motors up to 5 HP (3.7 kW). It provides stable V/Hz scalar control, making it a dependable solution for standard industrial applications such as conveyors, pumps, fans, mixers, and OEM machinery where consistent performance and easy setup are essential.
This model operates in the 480V industrial voltage class and is widely adopted in factory automation environments requiring compact yet powerful motor control. Its straightforward keypad interface and RS-485 communication support make it suitable for both standalone systems and integrated PLC-controlled architectures.
Although officially discontinued (effective June 30, 2025), it continues to see strong demand in maintenance and retrofit markets due to its proven durability and large installed base.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 4 |
| Product Type | AC Drive Module |
| Input Voltage | 380–480V AC |
| Input Phase | 3-phase |
| Output Voltage | 0–460V AC (3-phase output) |
| Output Current | 8.7 A |
| Output Power | 3.7 kW (5 HP) |
| Control Method | V/Hz scalar control |
| Communication | RS-485 |
| User Interface | LED display + fixed keypad |
| Brake Function | Integrated brake IGBT |
| Protection Features | Overload, overvoltage, short-circuit protection |
| Mounting Type | Panel mount (Frame B) |
| Enclosure Rating | IP20 (open type) |
| Frequency Range | 0–400 Hz |
The drive is engineered for stable torque delivery across a wide speed range, making it suitable for both constant and variable load applications.
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × L) | 213 × 136 × 100 mm |
| Weight | ~2.1–4.0 kg (variant dependent) |
Its Frame B structure improves thermal dissipation and supports higher power density while still maintaining a compact cabinet footprint.
Recommended Related Models
- 25A-D010N104 – Next-generation replacement drive
- 22A-D6P0N104 – 3 HP PowerFlex 4 variant
- 22A-A8P0N114 – Lower voltage class alternative
- 22B series PowerFlex 40 drives – Enhanced control performance upgrade
- 2198-H070-ERS – Servo system alternative for precision motion control
Popular Allen-Bradley Models
- 22A-D8P7N104
- 22A-D6P0N104
- 22A-A8P0N114
- 22B-D series PowerFlex 40
- 25A series PowerFlex drives
The PowerFlex family remains one of the most widely installed industrial VFD platforms globally due to its simplicity, reliability, and long lifecycle support.
