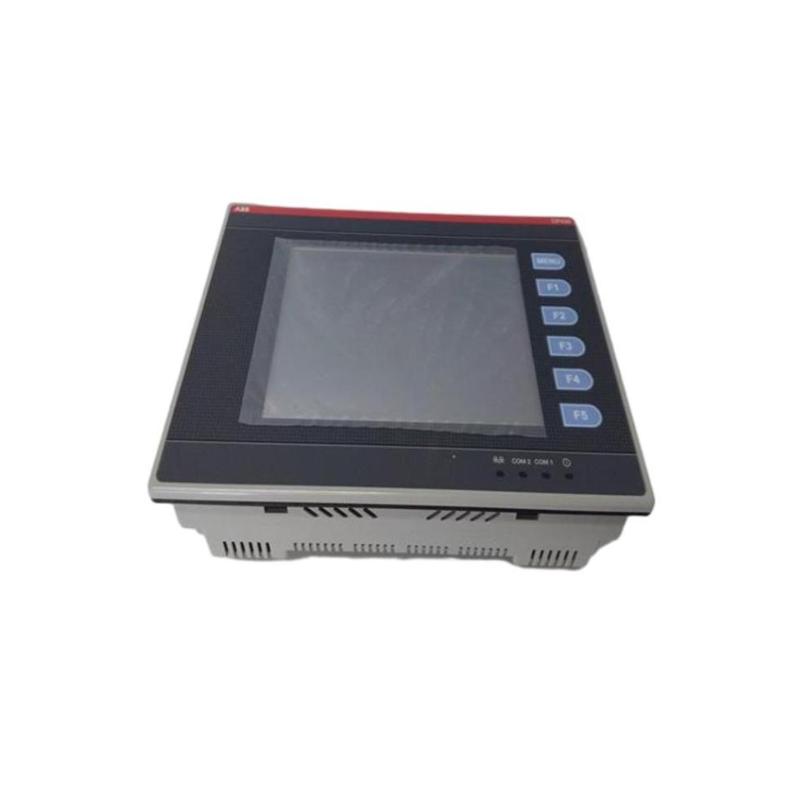

Name: ABB CP430T-ETH Communication Processor Module with Ethernet Connectivity for Advanced Industrial Control and Networking Solutions
Brand: ABB PLC
SKU: 2517
Availability: InStock
Rating: 5.0 (1 reviews)

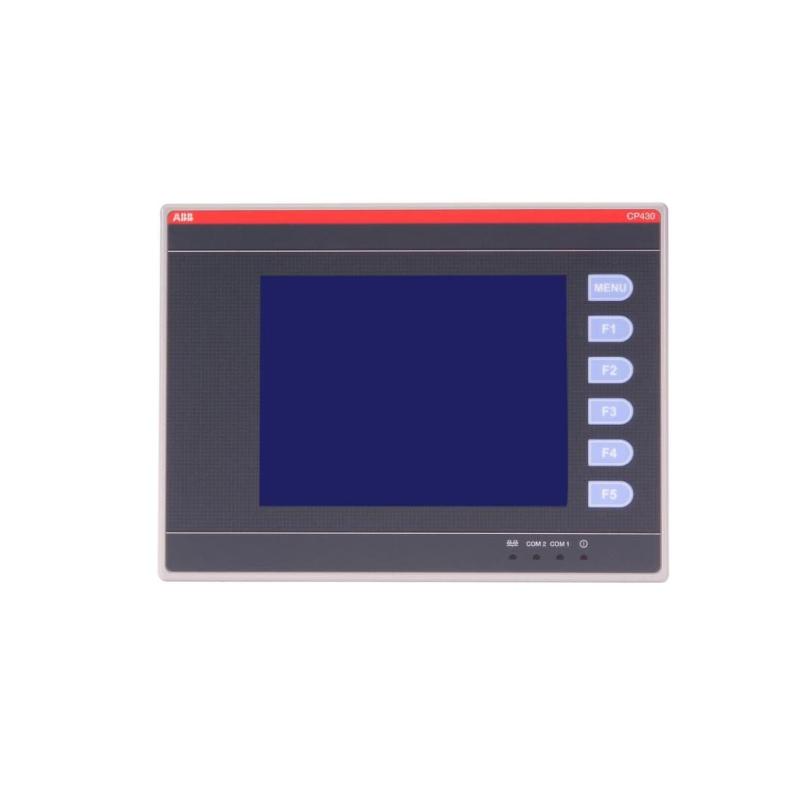

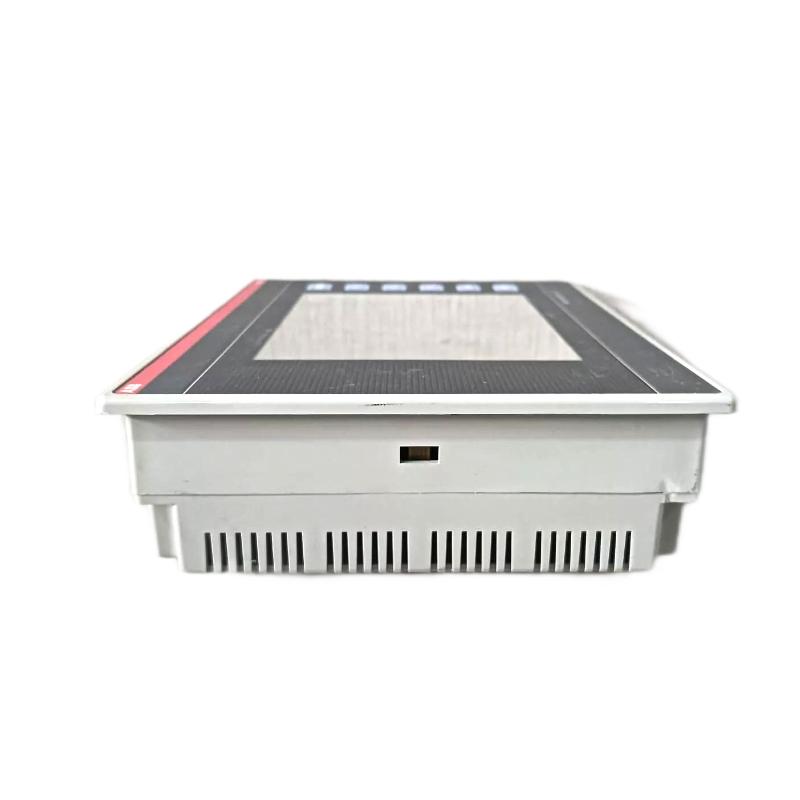

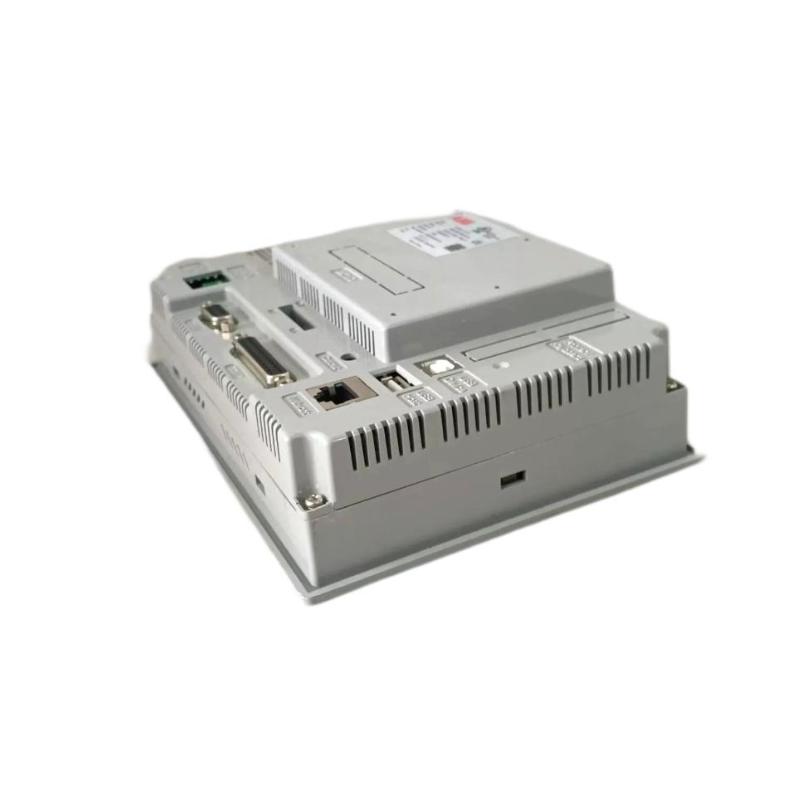

CP430T-ETH 1SBP260196R1001 (1) CP430T-ETH 1SBP260196R1001 (4) CP430T-ETH 1SBP260196R1001 (3) CP430T-ETH 1SBP260196R1001 (2)

The ABB CP430T-ETH Communication Processor Module is designed to offer advanced communication capabilities for industrial automation systems, enabling seamless connectivity and real-time data exchange over Ethernet networks. With its high-performance processing power and integrated Ethernet ports, this module is ideal for environments that demand fast, reliable, and scalable communication. The CP430T-ETH is widely used in process control, factory automation, and data acquisition applications, providing robust support for network integration and system expansion. This processor module offers the ideal balance of performance, security, and flexibility to enhance the communication infrastructure in industrial environments.

Technical Specifications

Model: CP430T-ETH
Module Type: Communication Processor
Processor: ARM Cortex-A9, 1.2 GHz
Ethernet Ports: 2 x 10/100/1000 Mbps (Gigabit Ethernet)
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Power Supply: 24V DC
Weight: 0.45 kg (0.99 lbs)
Dimensions:
- Height: 10.5 cm (4.13 in)
- Width: 12.9 cm (5.08 in)
- Depth: 6.6 cm (2.60 in)

Recommended Related Models

ABB CP440: Advanced Communication Processor with additional network options
ABB CP420: Communication Processor ideal for simpler network environments
ABB CI830: Ethernet Communication Interface for high-performance network communication
ABB 01-CTU-ETH: Ethernet Communication Unit for extended industrial network reach

Popular ABB Models

ABB AC500: Modular PLC for customizable and scalable automation solutions
ABB AC500-eCo: Cost-effective, compact PLC ideal for small-to-medium industrial applications
ABB S500 I/O: Flexible and scalable I/O system for distributed automation tasks
ABB CP650: High-performance communication processor with integrated web interface

Applications

The ABB CP430T-ETH Communication Processor Module is suitable for a wide range of industrial applications, including:

Industrial Automation: Enables efficient communication between PLCs, HMIs, sensors, and other devices in automation networks.
Process Control: Facilitates real-time communication for monitoring and controlling processes in industries such as chemical, power, and water treatment.
Data Acquisition: Integrates with sensor networks to collect data from remote devices for processing, monitoring, and control.
Factory Networking: Supports high-speed communication between systems, enabling seamless interaction across multiple factory devices and control units.
Remote Monitoring: Provides secure access to remote systems, reducing the need for on-site troubleshooting and maintenance.

Advantages

Dual Ethernet Ports: Two high-speed Ethernet ports provide redundancy and increased bandwidth, enhancing network reliability.

Flexible Integration: Compatible with ABB PLCs and third-party devices, providing a versatile solution for industrial networks.

Real-Time Data Exchange: Facilitates rapid communication and data exchange, ensuring timely responses in mission-critical control systems.

Compact and Durable: Small footprint and rugged design ensure that the module fits into tight spaces while being durable enough for industrial environments.

Low Power Consumption: The module operates efficiently with minimal power requirements, making it suitable for continuous operation.

High Security: Integrated security protocols ensure safe data transmission, reducing the risk of data breaches.

Easy Configuration: Simplified setup with ABB’s intuitive software tools, reducing the complexity of network configuration.

Scalability: The CP430T-ETH can easily scale as part of larger automation systems, accommodating increased communication needs.

Wide Temperature Range: Designed for reliable operation in a broad range of industrial temperature environments.

Long-Term Reliability: Built for long-term use with minimal maintenance, reducing the total cost of ownership.

Technical FAQs

What is the maximum throughput supported by the CP430T-ETH?
The CP430T-ETH supports up to 1 Gbps data transfer per Ethernet port, ensuring efficient and fast communication across networks.
Is the CP430T-ETH module compatible with existing ABB automation systems?
Yes, the module is fully compatible with ABB’s AC500 PLC series and other automation products, allowing seamless integration.
Can I use the CP430T-ETH in outdoor environments?
While the module is designed for industrial use, it should be housed in a protective enclosure if used outdoors or in extreme environmental conditions.
How do I configure the CP430T-ETH for my network?
Configuration is done through ABB’s Control Builder or System 800xA software, which provides an easy-to-use interface for setup and management.
What Ethernet protocols are supported by the CP430T-ETH?
The CP430T-ETH supports Ethernet/IP, Modbus TCP, and other industry-standard communication protocols, ensuring broad compatibility.
How can I monitor the status of the CP430T-ETH remotely?
The module supports remote diagnostics and monitoring through ABB’s software tools, allowing users to check system health and performance remotely.
What security features does the CP430T-ETH offer?
The module includes encryption and authentication features to ensure secure communication between devices and networks.
What is the power consumption of the CP430T-ETH?
The module has a low power consumption of approximately 5W, making it energy-efficient for continuous operation.
Is there a warranty on the CP430T-ETH?
Yes, the CP430T-ETH comes with a standard 1-year warranty from the date of purchase.
Can the CP430T-ETH be used in high-availability systems?
Yes, the dual Ethernet ports allow for network redundancy, which is crucial for high-availability industrial systems.
