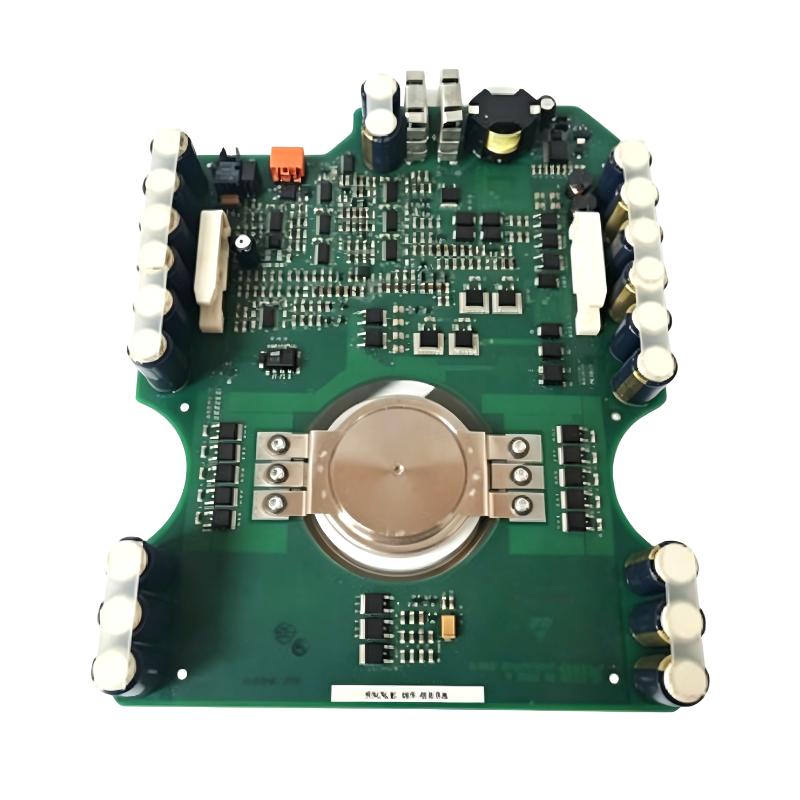

ABB 5SHX 0660F0002 3BHB018104R0001 IGCT Module

Applications

• Medium-voltage AC drive systems used in heavy industrial power control

• High-power motor drives in steel mills, mining, cement, and oil & gas facilities

• HVDC and STATCOM power conversion systems for grid stability and transmission

• Industrial converters requiring high-efficiency switching and low conduction losses

• Large-scale renewable energy integration systems (wind and utility-scale converters)

• ACS5000 series drive platforms for mission-critical energy and infrastructure operations

• High-reliability power electronics systems operating under continuous heavy load

Key Advantages

• Integrated Gate-Commutated Thyristor (IGCT) technology for ultra-high power switching

• Very low conduction losses, improving overall system energy efficiency

• High current handling capability suitable for megawatt-class industrial drives

• Robust press-pack design enabling excellent thermal and mechanical stability

• Designed for long service life in continuous-duty industrial environments

• Strong short-circuit withstand capability for demanding grid and motor applications

• Optimized for ABB medium-voltage drive ecosystems such as ACS5000

Technical FAQs

1. What is the main function of this IGCT module?
It acts as a high-power semiconductor switching device for medium-voltage converters and industrial drives.

2. Which systems commonly use this module?
It is mainly used in ABB ACS5000 drive systems and similar medium-voltage power conversion platforms.

3. What is IGCT technology?
IGCT (Integrated Gate-Commutated Thyristor) is a high-power switching technology combining low losses with fast turn-off capability.

4. What industries typically use this module?
It is widely used in power generation, mining, metallurgy, and heavy industrial automation.

5. Does it support high current operation?
Yes, it is designed for very high current and voltage industrial applications.

6. Is it suitable for continuous operation?
Yes, it is built for continuous-duty operation in harsh industrial environments.

7. What makes it different from standard IGBT modules?
It offers lower conduction losses and higher power handling, but requires specialized drive systems.

8. Does it require liquid cooling?
Many systems using this module employ advanced cooling such as liquid or forced-air solutions depending on design.

9. Is it used in modern industrial systems?
Yes, it is still widely used in high-power ABB drive platforms.

10. What happens if the module fails?
The power conversion stage of the drive system will shut down or trigger protection faults.
