Brand:Allen Bradley PLC Item No.:1606-XLE120E Product Origin:USA Product Dimensions:124 x 32 x 117 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

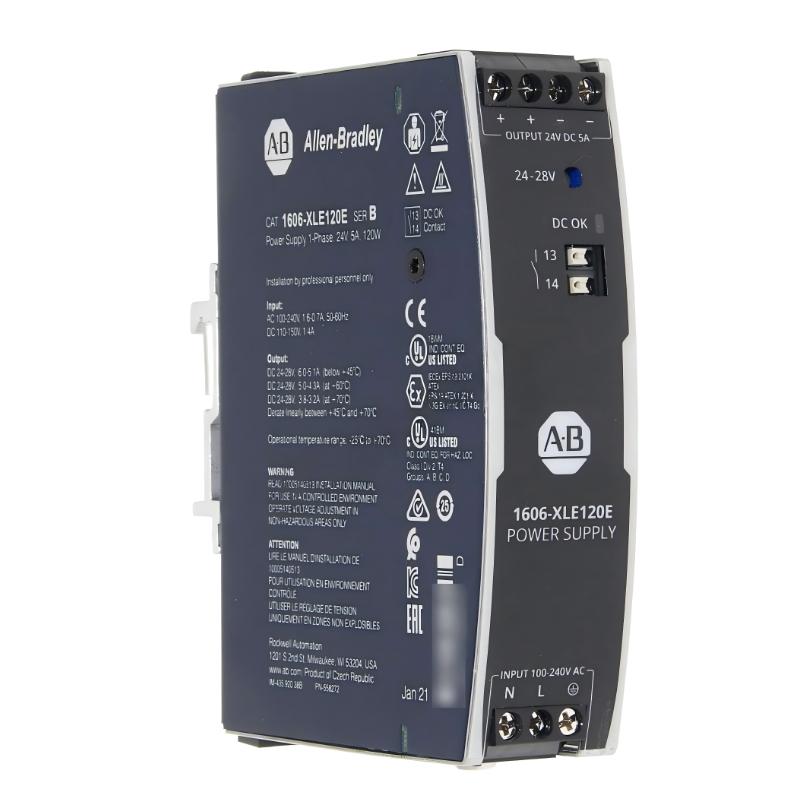

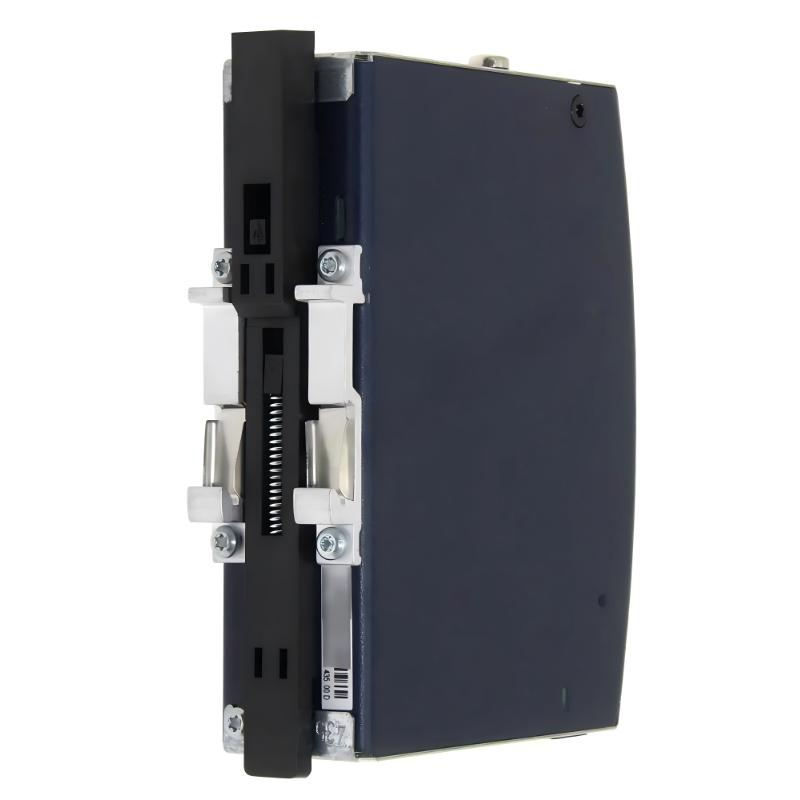

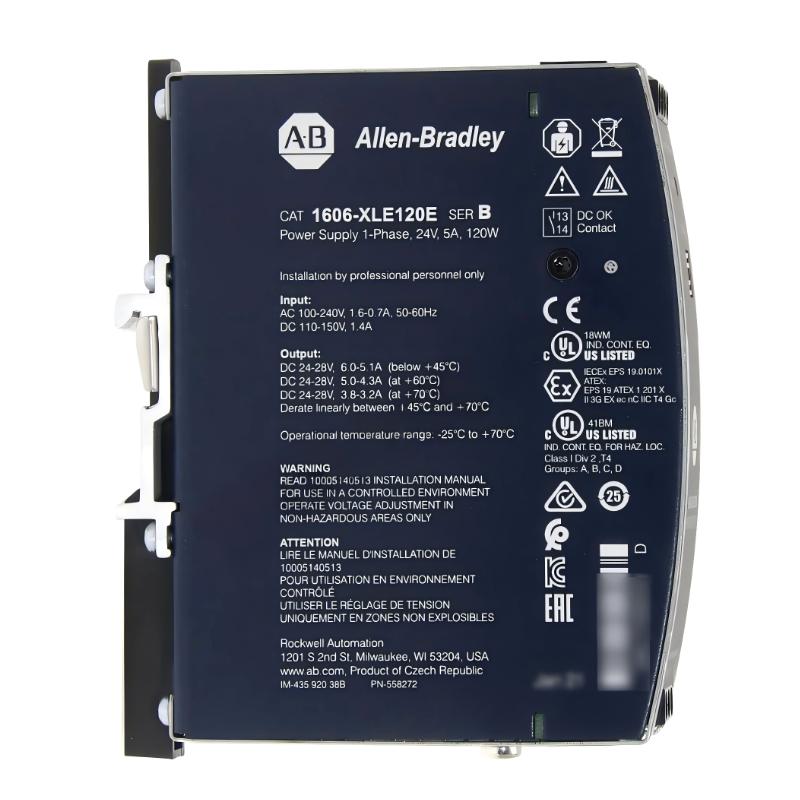

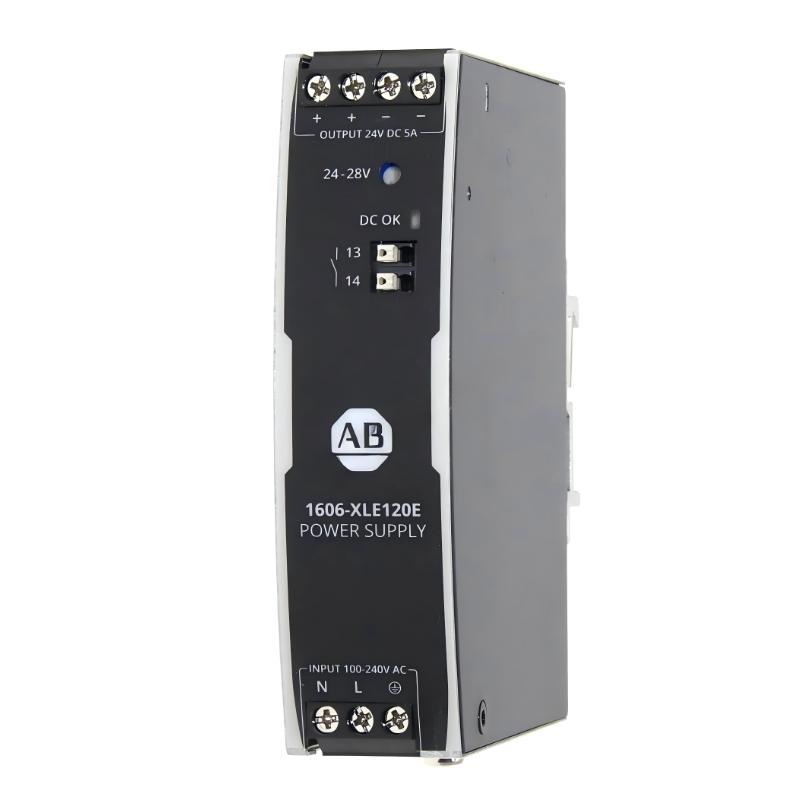

The Allen-Bradley 1606-XLE120E is a compact industrial switched-mode power supply designed to provide reliable 24VDC power for automation systems. It is widely used in control cabinets to supply PLC processors, I/O modules, sensors, and other low-voltage industrial devices.
Technical Specifications
Parameter
Specification
Product Name
Allen-Bradley 1606-XLE120E Power Supply
Manufacturer
Rockwell Automation (Allen-Bradley)
Product Type
Switched Mode Power Supply
Output Voltage
24V DC (adjustable range approx. 24–28V)
Output Power
120 W
Output Current
Up to 5 A
Input Voltage
100–240V AC (wide range)
Mounting Type
DIN Rail
Efficiency
High efficiency (approx. 90%+)
Dimensions
124 × 32 × 117 mm
Weight
0.5 kg
Recommended Related Models
Model Number
Product Name
1606-XLE240E
Allen-Bradley 24VDC Power Supply 240W
1606-XL120E
Essential Power Supply Series
SE3008 KJ2005X1-SQ1
Power Control Module
VE4050E1C0 KJ4001X1-BE1
I/O Interface Carrier
Popular Related Models
Model Number
Product Name
SE3007 KJ2005X1-BK1
DeltaV SX Controller Module
VE4003S2B7
Analog Input Module
VE4002S1T2B5
Output Module with Terminal Blocks
VE4002S1T2B4
Discrete Input Card
Applications
• 24VDC power supply for PLC systems, including Allen-Bradley ControlLogix™ and CompactLogix™ architectures.
• Industrial automation control panels supplying sensors, relays, and I/O modules.
• Manufacturing equipment requiring stable low-voltage DC power distribution.
• Process control systems in oil and gas, chemical, and petrochemical plants.
• Powering HMI panels, field devices, and industrial communication modules.
• Water treatment and utility automation systems requiring reliable DC bus power.
• Machine building applications with compact DIN-rail power distribution needs.
• General-purpose industrial control cabinets with 24VDC auxiliary power requirements.
Key Advantages
• Provides stable 24VDC output with up to 120W power capacity.
• High efficiency switching design reduces heat generation inside control cabinets.
• Wide input voltage range supports global industrial power standards.
• Built-in power reserve capability supports short-term load peaks.
• Reliable operation in continuous industrial environments (24/7 duty).
• Integrated DC-OK status relay enables system diagnostics and monitoring.
• Rugged design ensures long service life in industrial applications.
Technical FAQs
Q1: What is the main function of the 1606-XLE120E power supply?
A: It converts AC input voltage into a stable 24VDC output used to power PLC systems and industrial automation devices.
Q2: What is its output rating?
A: It provides up to 120W power at 24VDC with approximately 5A output current.
Q3: What input voltage does it support?
A: It supports a wide industrial AC input range typically from 100–240V AC.
Q4: Can it be used with ControlLogix or CompactLogix systems?
A: Yes, it is commonly used to power Allen-Bradley PLC racks and I/O modules.
Q5: Is it suitable for continuous operation?
A: Yes, it is designed for 24/7 industrial duty cycles.
Q6: Does it provide protection features?
A: Yes, it includes overload protection, inrush current limiting, and DC-OK status signaling.
Q7: Can it be mounted in a control cabinet?
A: Yes, it is designed for DIN-rail mounting inside electrical enclosures.
Q8: Does it support multiple devices simultaneously?
A: Yes, it can power multiple low-voltage industrial devices as long as total load is within 120W.
Q9: Is it energy efficient?
A: Yes, it has high conversion efficiency typical of modern switched-mode power supplies.
Q10: What is the main benefit of this power supply?
A: It delivers stable, compact, and reliable 24VDC power for industrial automation systems.
