The Emerson VE6015P4 is a DeltaV industrial Fast Ethernet switch module designed to provide stable and deterministic communication within distributed control system (DCS) networks. As part of the DeltaV M-series communication infrastructure, it delivers reliable 10/100 Mbps copper Ethernet switching for industrial automation environments that require high availability, real-time data exchange, and strong electromagnetic immunity.
The “P4” variant represents the final configuration revision within the VE6015P series family, typically used for regional or hardware packaging differences while maintaining the same core switching architecture as VE6015P1–P3. It is widely deployed in process industries where control network stability directly impacts production continuity, safety systems, and operational efficiency.
In modern DeltaV architectures, the VE6015P4 is commonly used in hybrid Ethernet networks, working alongside fiber switches and media converters to build scalable and fault-tolerant plant communication systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE6015P4 |
| Product Type | Industrial Fast Ethernet Switch Module |
| System Platform | DeltaV Distributed Control System |
| Network Type | 10/100BASE-TX Ethernet |
| Data Rate | 10/100 Mbps auto-negotiation |
| Switching Layer | Layer 2 Ethernet switching |
| Port Configuration | Multi-port copper switch (system dependent architecture) |
| Network Media | RJ45 copper Ethernet |
| Communication Role | DeltaV control network distribution |
| Power Supply | 24 VDC system power |
| Power Consumption | ~8–15 W typical industrial design |
| Redundancy Support | System-level redundancy via DeltaV architecture |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5%–95% non-condensing |
| EMC Immunity | Industrial-grade electromagnetic resistance |
| Mounting Type | DIN rail / control cabinet installation |
| Status Indicators | Link / Activity LEDs per port |
| Network Features | Auto MDI/MDI-X, full/half duplex support |
| Dimensions (H × W × D) | ~130 mm × 160 mm × 110 mm |
| Weight | ~1.2–1.8 kg |
Recommended System Integration Modules
For a complete DeltaV communication architecture, VE6015P4 is typically deployed alongside:
| Module | Function |
|---|---|
| VE6015P1 | Base copper Ethernet switch variant |
| VE6015P2 | Intermediate configuration revision |
| VE6015P3 | Prior revision variant |
| VE6014 Series | Fiber-optic Ethernet backbone switches |
| VE6017 Series | Advanced managed industrial switches |
| VE6018 Series | High-density switching platforms |

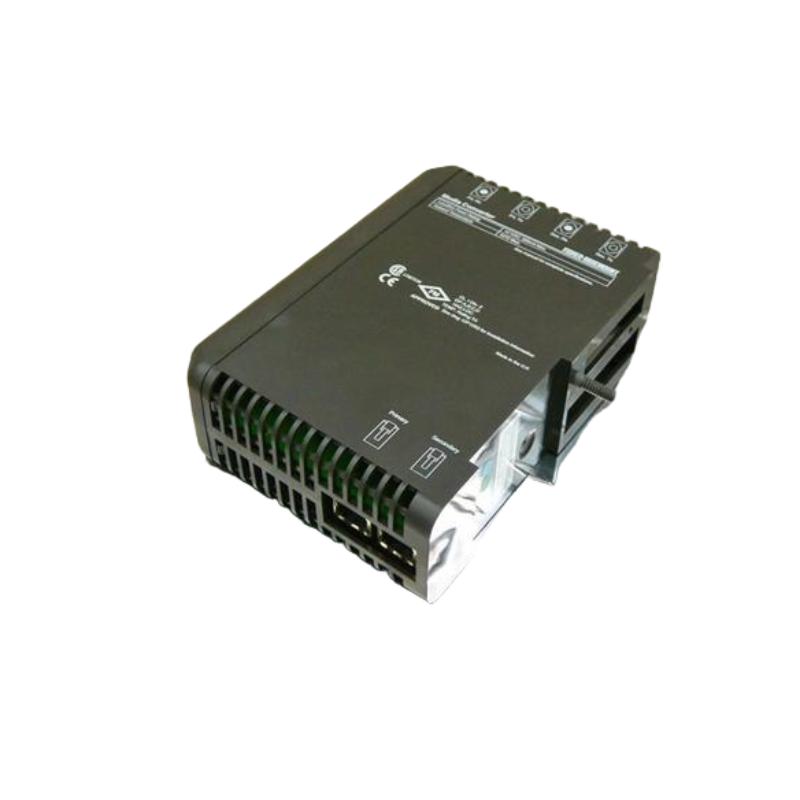

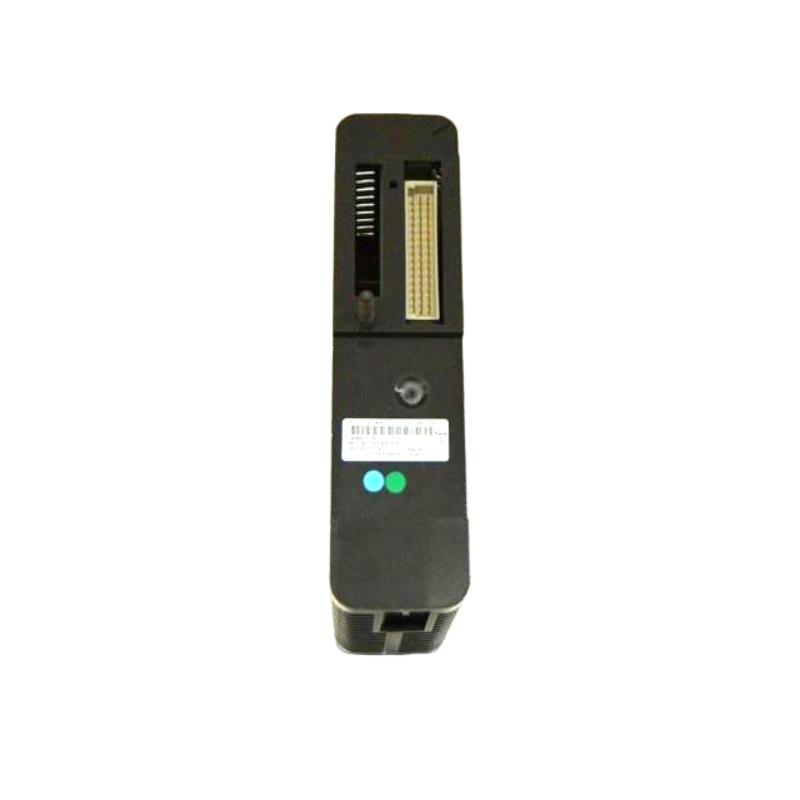

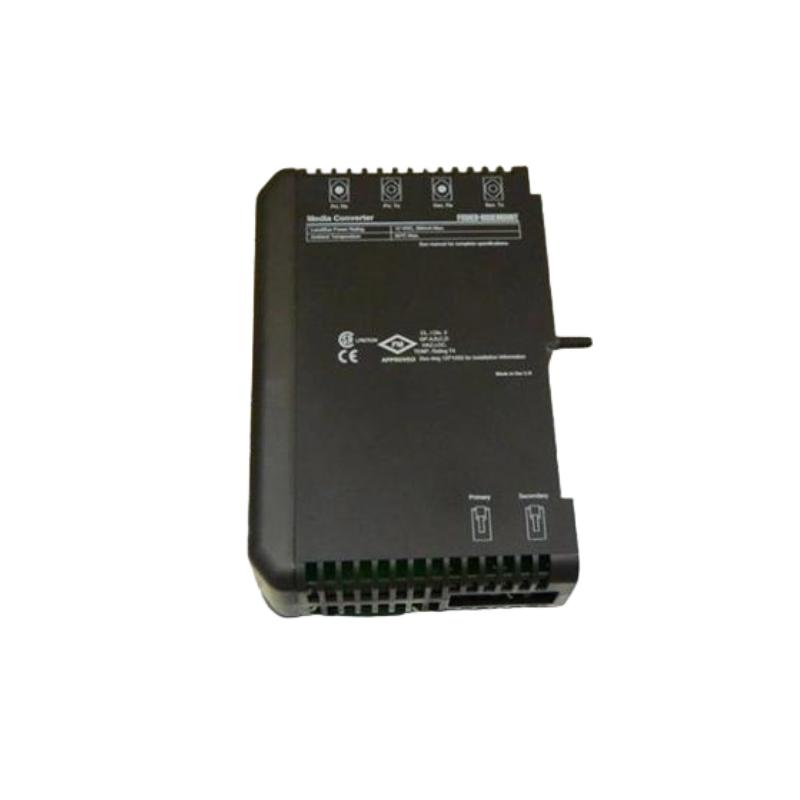

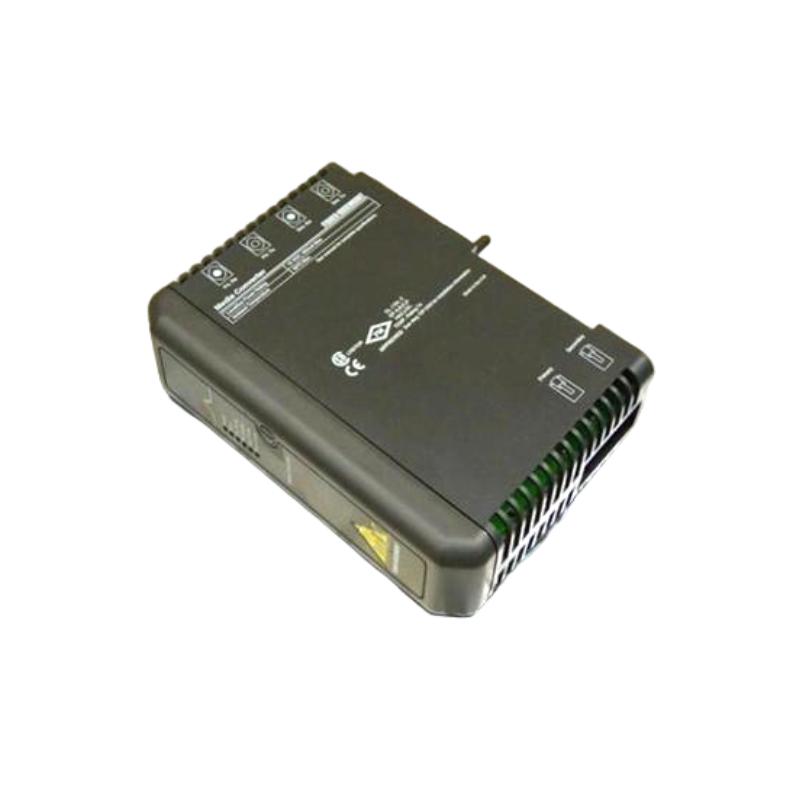

| VE6006 | Fiber-to-copper media converter module |
| VE6001P1 | Legacy Ethernet hub module |
| VE4070 | System interface and carrier module |
These modules collectively form a scalable hybrid copper-fiber DeltaV communication infrastructure.
Popular Emerson DeltaV Communication Modules
Within Emerson’s DeltaV ecosystem, VE6015P4 belongs to the copper Ethernet switching family:
- VE6015P1 / P2 / P3 / P4 Fast Ethernet Switch Variants
- VE6017 Series Industrial Managed Switch Modules
- VE6018 High-performance Fiber Switch Systems
- VE6014 Series Fiber Optic Ethernet Switch Modules
- VE6006 Media Converter Module
- VE6001P1 Legacy Ethernet Hub Module
- VE4070 System Interface Modules
- VE6021 Advanced Network Backbone Switches
These components are designed to ensure stable, deterministic communication across industrial automation systems.
