Brand:ABB PLC Item No.:PM5012‑T‑ETH Product Origin:Sweden (SE) Product Dimensions:135 × 74 × 82 mm Product Weight:0.225 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

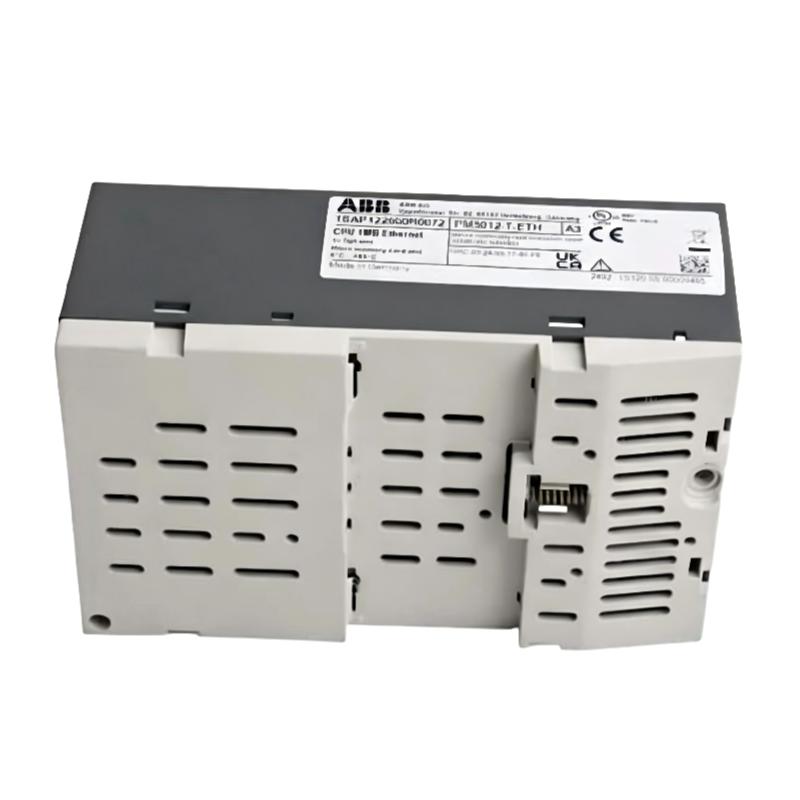

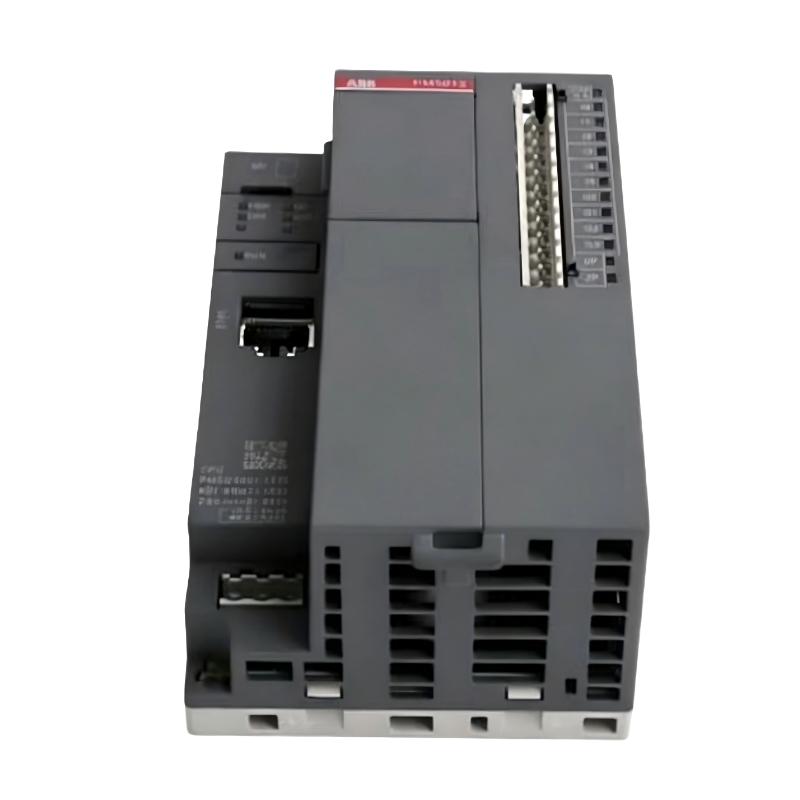

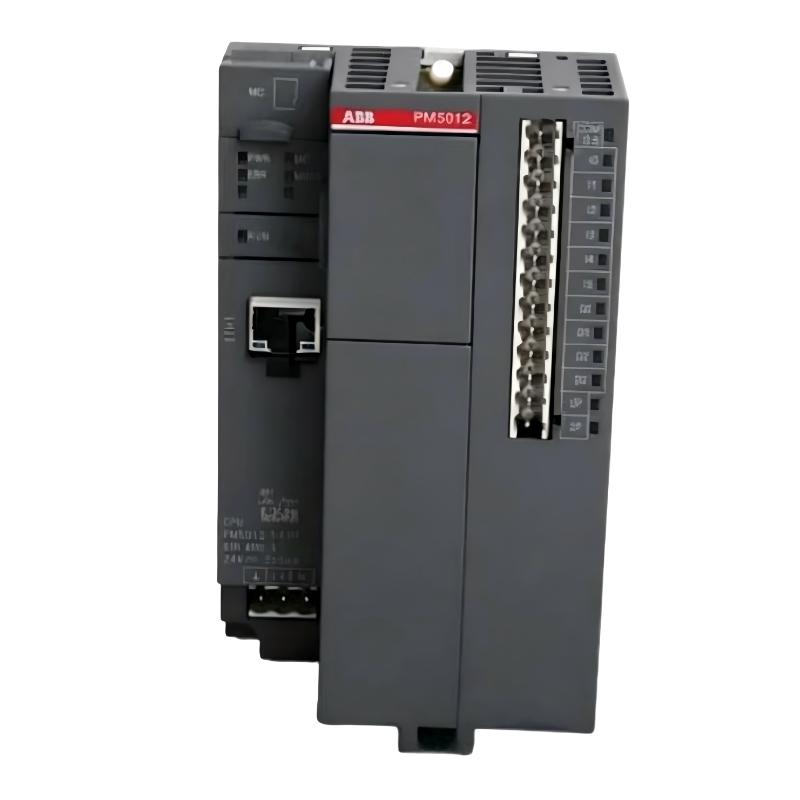

The ABB PM5012-T-ETH 1SAP122600R0072 is a compact processor module designed for the AC500-eCo automation platform. It integrates processing capability, digital I/O, and Ethernet communication into a single unit, making it suitable for efficient machine-level automation.
Technical Specifications
Parameter
Description
Model
PM5012-T-ETH
Order Code
1SAP122600R0072
Series
ABB AC500-eCo
Processor Type
PLC Processor Module
Memory
1 MB
Digital Inputs
6 × 24 V DC
Digital Outputs
4 × Transistor 24 V DC
Communication
Ethernet
Expansion Slots
1 option slot
Supply Voltage
24 V DC
Dimensions
135 × 74 × 82 mm
Weight
0.225 kg
Recommended Related Models
Model
Product Name
PM554-ETH
ABB AC500 PLC CPU Module
PM573-ETH
ABB AC500 High Performance CPU Module
PM5112-ETH
ABB AC500 Compact Processor Module
PM5022-ETH
ABB AC500-eCo Extended CPU Module
Popular Related Models
Model
Product Name
PM5012-T-ETH
ABB AC500-eCo Processor Module
PM554-ETH
ABB AC500 Standard PLC CPU
PM573-ETH
ABB High Performance PLC Processor
PM590-ETH
ABB AC500 Advanced CPU Module
Applications
• Compact PLC-based machine automation
Used in small to mid-sized industrial machines requiring integrated logic control, I/O handling, and communication in a single processor unit.
• OEM equipment control systems
Commonly deployed in packaging machines, conveyors, assembly systems, and light industrial automation equipment.
• Distributed control system integration
Works as a processing node in decentralized automation architectures using Ethernet communication.
• Retrofit of legacy control panels
Suitable for upgrading older relay-based or basic PLC systems to modern programmable control platforms.
• Small process automation systems
Applied in HVAC control, utility systems, and simple production line management.
Key Advantages
• Integrated PLC architecture
Combines CPU, digital I/O, and Ethernet communication in a compact processor module for simplified system design.
• Built-in Ethernet connectivity
Enables easy integration into industrial networks for programming, monitoring, and data exchange.
• Efficient memory and processing capability
Provides stable performance for standard machine control and logic execution tasks.
• Compact industrial design
Space-saving form factor suitable for dense control cabinet installations.
• Expandable system capability
Supports modular extension within the ABB AC500-eCo automation platform.
Technical FAQs
Q1: What is the main function of this processor module?
It executes PLC control programs and manages I/O and communication in automation systems.
Q2: Does it include built-in I/O?
Yes, it includes integrated digital inputs and transistor outputs.
Q3: What communication interface is available?
It features built-in Ethernet communication.
Q4: What type of applications is it suitable for?
It is designed for compact machine automation and OEM equipment control.
Q5: Can it be expanded with additional modules?
Yes, it supports expansion within the AC500-eCo system architecture.
Q6: Is it suitable for large-scale plant control?
No, it is intended for small to medium automation systems.
Q7: What type of outputs does it use?
It uses transistor-type digital outputs.
Q8: Does it require separate power modules?
It operates as part of a modular PLC system with defined power configuration.
Q9: Can it support remote monitoring?
Yes, Ethernet connectivity enables remote access and diagnostics.
Q10: Is it suitable for continuous industrial operation?
Yes, it is designed for 24/7 industrial environments.
