Brand:ABB PLC Item No.:PM5032‑R‑ETH Product Origin:Sweden (SE) Product Dimensions:135 × 74 × 82 mm Product Weight:0.268 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

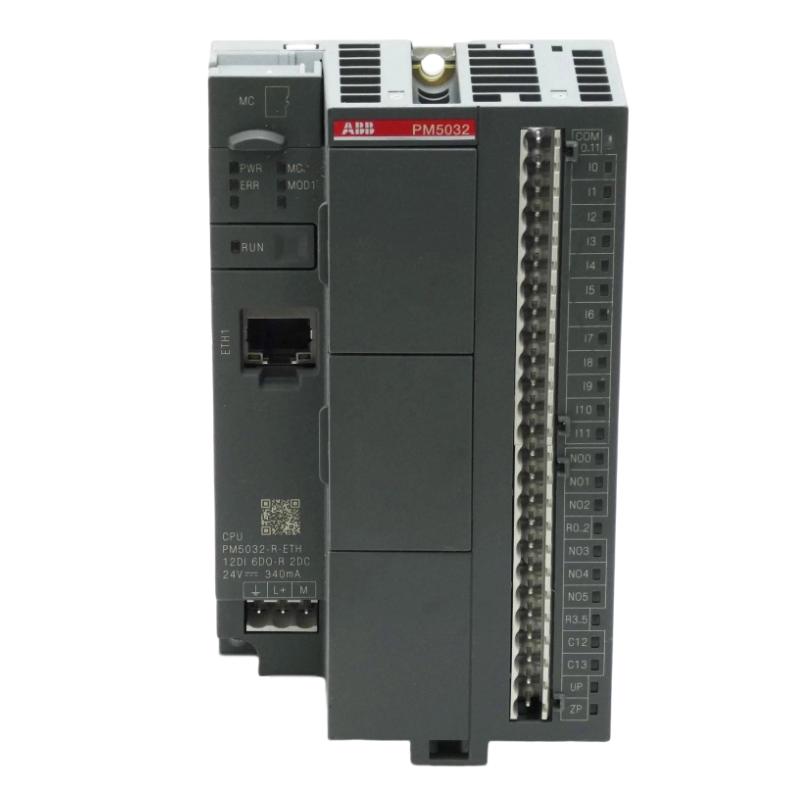

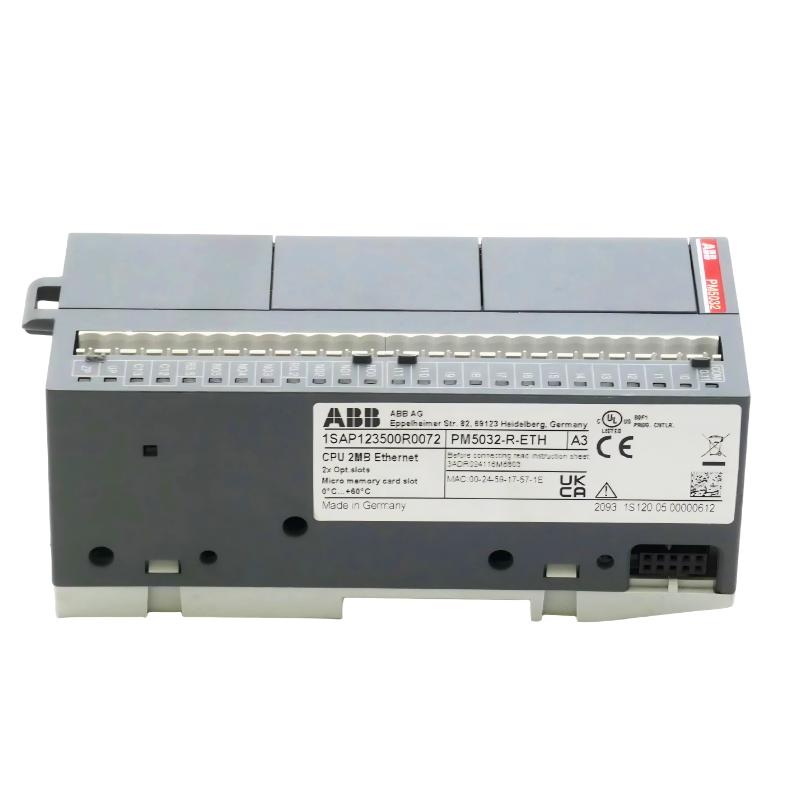

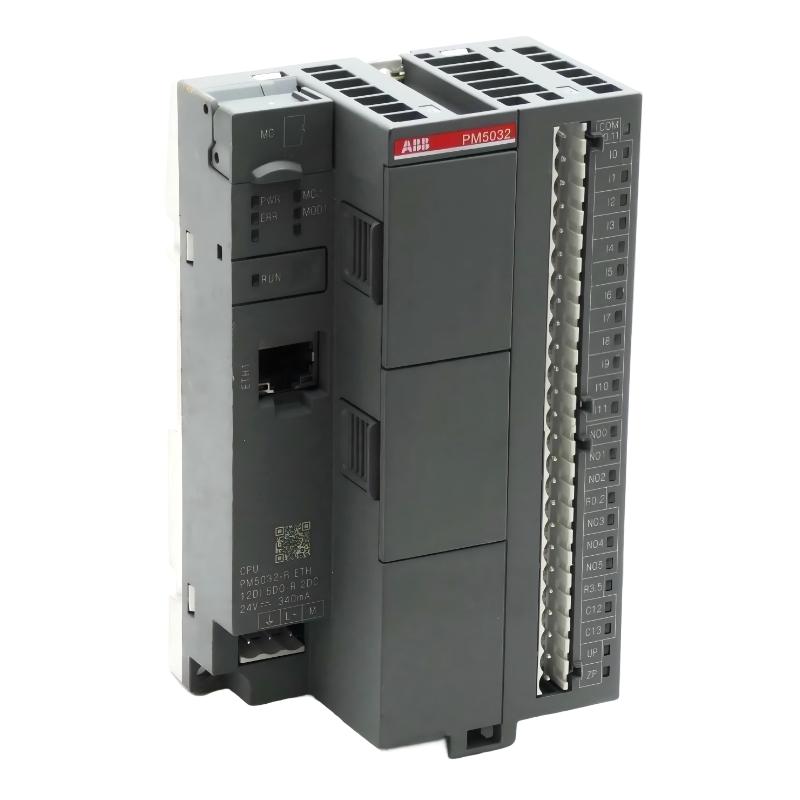

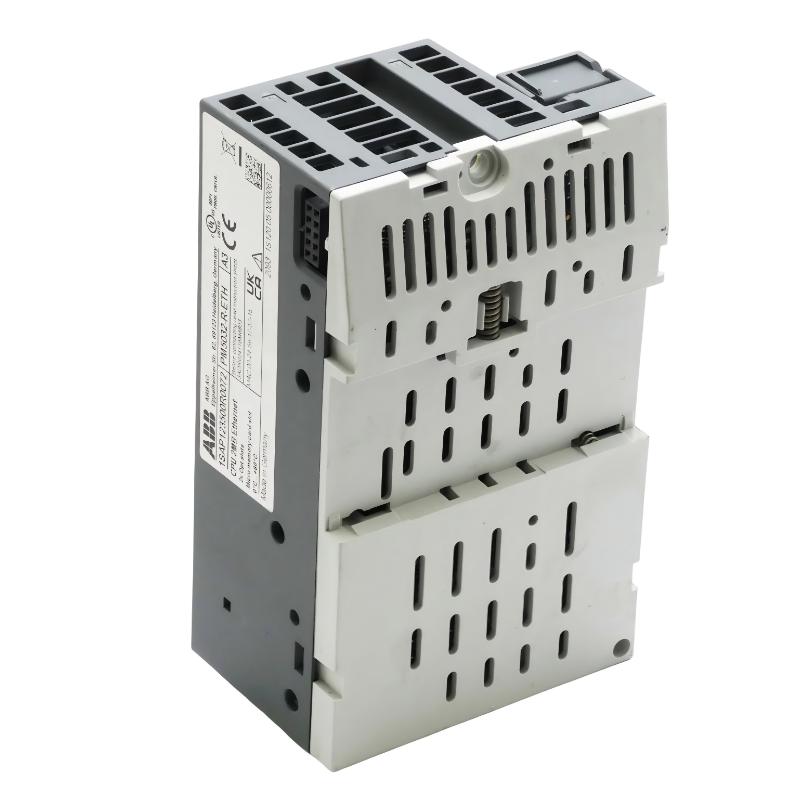

The ABB PM5032-R-ETH 1SAP123500R0072 is a compact processor module designed for the AC500-eCo automation platform. It integrates processing capability, digital I/O, and Ethernet communication into a single unit, making it suitable for efficient machine-level automation applications.
Technical Specifications
Parameter
Description
Model
PM5032-R-ETH
Order Code
1SAP123500R0072
Series
ABB AC500-eCo
Processor Type
PLC Processor Module
Memory
2 MB
Digital Inputs
12 × 24 V DC
Digital Outputs
6 × Relay
Additional I/O
2 × configurable 24 V DC
Communication
Ethernet
Expansion Slots
2 option slots
Supply Voltage
24 V DC
Dimensions
135 × 74 × 82 mm
Weight
0.268 kg
Recommended Related Models
Model
Product Name
PM5012-T-ETH
ABB AC500-eCo Processor Module
PM5112-ETH
ABB AC500 Compact CPU Module
PM554-ETH
ABB AC500 Standard PLC CPU Module
PM573-ETH
ABB AC500 High Performance Processor
Popular Related Models
Model
Product Name
PM5032-R-ETH
ABB AC500-eCo Processor Module
PM5012-T-ETH
ABB Compact Ethernet PLC Module
PM554-ETH
ABB Standard AC500 CPU
PM590-ETH
ABB Advanced PLC Processor Module
Applications
• Compact machine automation systems
Used in small to mid-sized industrial machines requiring integrated logic control, I/O processing, and communication in a single PLC module.
• OEM equipment control platforms
Common in packaging machines, conveyors, assembly systems, and light industrial automation equipment.
• Distributed automation architecture
Acts as a control node in decentralized systems using Ethernet-based industrial communication.
• Retrofit of legacy control systems
Replaces relay logic or older PLC platforms with a modern programmable controller without major panel redesign.
• Small process and utility automation
Suitable for HVAC systems, water treatment units, and simple production line control applications.
Key Advantages
• Integrated PLC architecture
Combines CPU, digital I/O, and Ethernet communication into one compact processor module.
• High processing performance for compact systems
Supports stable execution of standard automation logic with efficient cycle performance.
• Built-in Ethernet communication
Enables seamless connection to industrial networks for programming, monitoring, and data exchange.
• Flexible expansion capability
Supports modular extension for additional I/O and functional requirements.
• Industrial-grade compact design
Space-saving form factor suitable for dense control cabinet installations.
Technical FAQs
Q1: What is the main function of this module?
It serves as a PLC processor handling logic execution, I/O control, and communication.
Q2: Does it include built-in I/O?
Yes, it includes integrated digital inputs and relay outputs.
Q3: What communication interface does it support?
It features built-in Ethernet for industrial networking.
Q4: What system is it part of?
It belongs to the ABB AC500-eCo PLC platform.
Q5: Can it be expanded with additional modules?
Yes, it supports modular expansion within the AC500 system.
Q6: Is it suitable for large-scale automation plants?
No, it is designed for small to medium automation systems.
Q7: What type of outputs does it use?
It uses relay-based digital outputs.
Q8: Does it support remote access?
Yes, Ethernet communication enables remote monitoring and diagnostics.
Q9: Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.
Q10: What programming environment is used?
It is typically programmed using ABB Automation Builder.
