Brand:ABB PLC Item No.:PM5032‑T‑ETH Product Origin:Sweden (SE) Product Dimensions:135 × 74 × 82 mm Product Weight:0.251 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

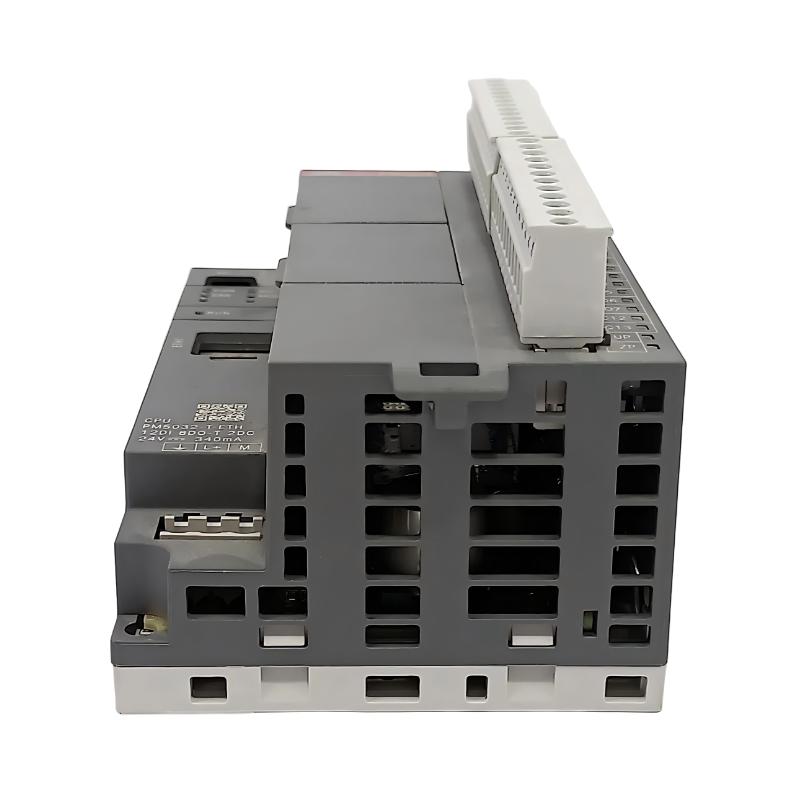

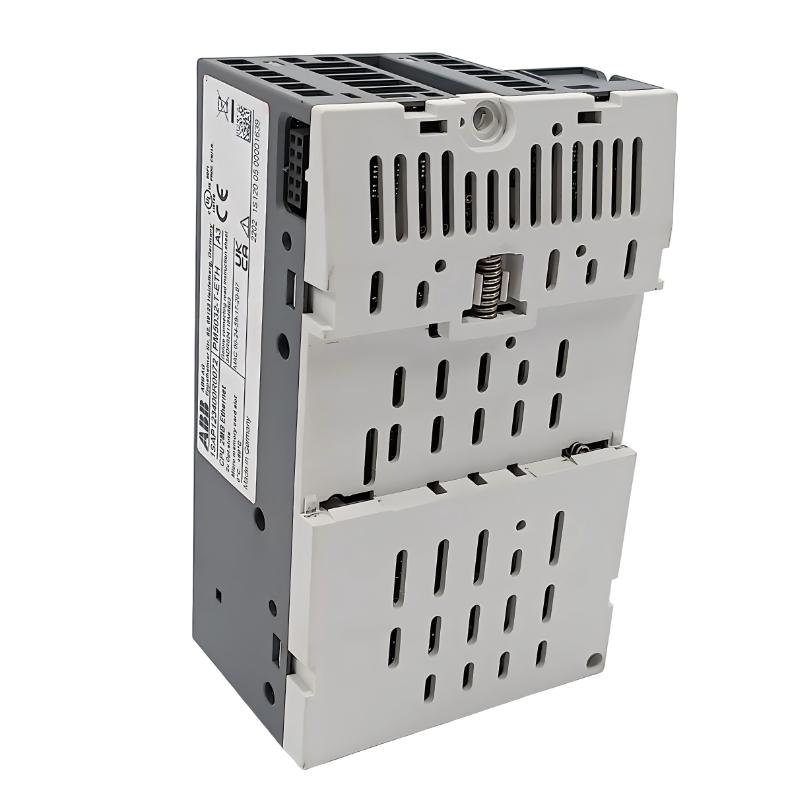

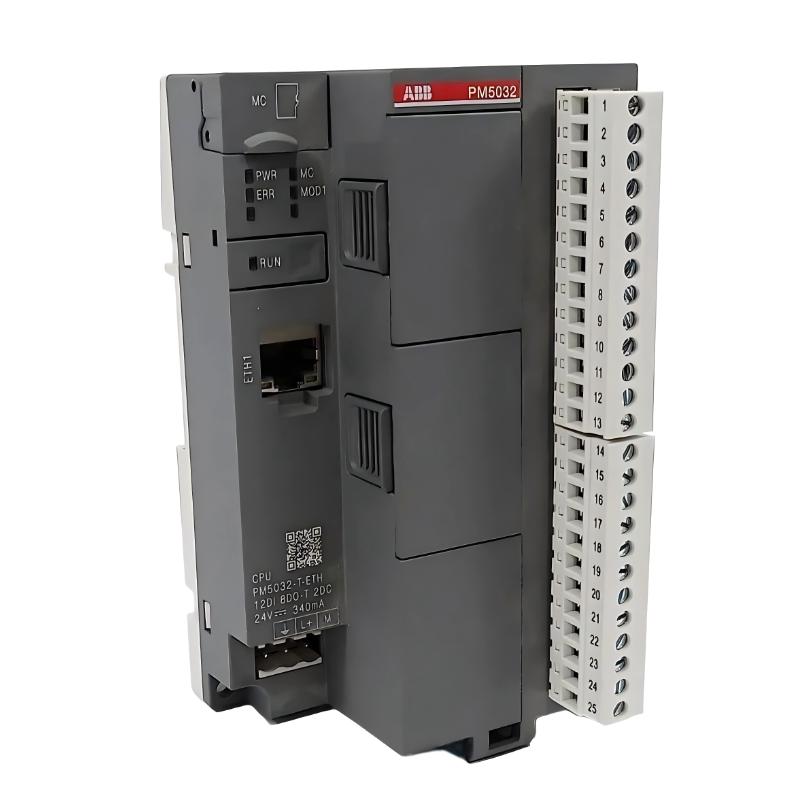

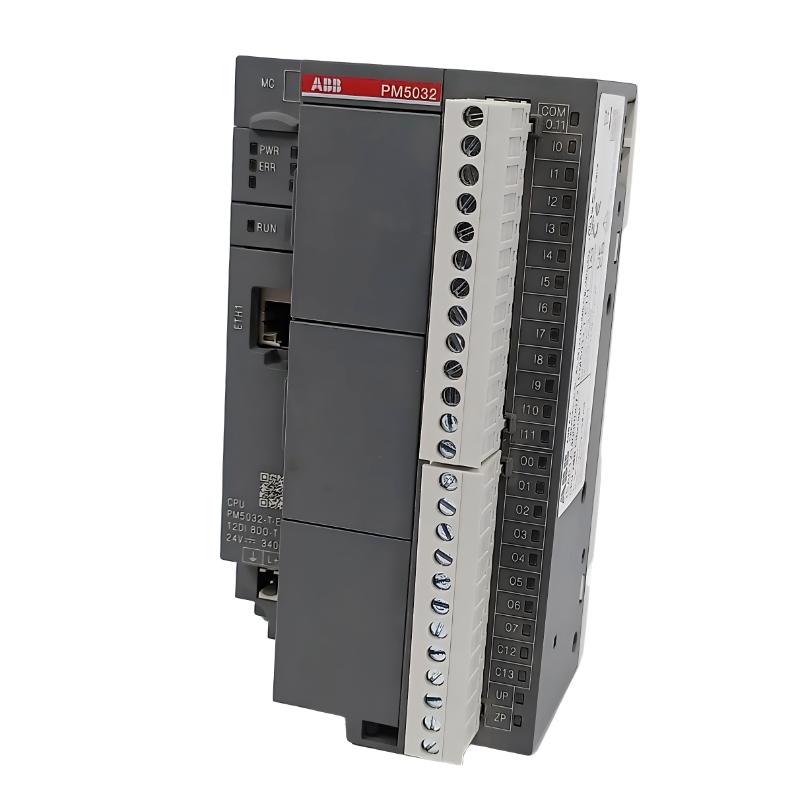

The ABB PM5032-T-ETH 1SAP123400R0172 is a compact processor module designed for the AC500-eCo automation platform. It integrates processing capability, digital I/O, and Ethernet communication into a single device, enabling efficient machine-level automation in industrial environments.
Technical Specifications
Parameter
Description
Model
PM5032-T-ETH
Order Code
1SAP123400R0172
Series
ABB AC500-eCo
Processor Type
PLC Processor Module
Memory
2 MB
Digital Inputs
12 × 24 V DC
Digital Outputs
8 × Transistor 24 V DC
Configurable I/O
2 × 24 V DC
Communication
Ethernet
Expansion Slots
2 option slots
Supply Voltage
24 V DC
Dimensions
135 × 74 × 82 mm
Weight
0.251 kg
Recommended Related Models
Model
Product Name
PM5012-T-ETH
ABB AC500-eCo Processor Module
PM5032-R-ETH
ABB AC500-eCo Relay Output Processor Module
PM5112-ETH
ABB AC500 Compact PLC CPU Module
PM554-ETH
ABB AC500 Standard PLC Processor
Popular Related Models
Model
Product Name
PM5032-T-ETH
ABB AC500-eCo Transistor Output Processor Module
PM5012-T-ETH
ABB AC500-eCo Compact CPU Module
PM554-ETH
ABB AC500 Standard PLC CPU Module
PM573-ETH
ABB High Performance PLC Processor Module
Applications
• Compact machine automation systems
Used in small to mid-sized industrial machines requiring integrated logic control, I/O handling, and communication in a single PLC processor.
• OEM equipment control platforms
Common in packaging machines, conveyors, assembly systems, and light industrial automation applications.
• Distributed automation networks
Acts as a control node in decentralized systems using Ethernet-based industrial communication.
• Retrofit of legacy control systems
Replaces older relay logic or basic PLC systems with a modern programmable controller.
• Utility and process automation
Suitable for HVAC systems, water treatment units, and general-purpose industrial control tasks.
Key Advantages
• Integrated PLC architecture
Combines CPU, digital inputs, digital outputs, and Ethernet communication in one compact module.
• Built-in Ethernet communication
Enables fast integration into industrial networks for programming, monitoring, and diagnostics.
• Efficient control performance
Provides stable execution of standard automation logic with optimized processing time.
• Flexible system expansion
Supports additional modules for extended I/O and functionality within the AC500-eCo platform.
• Compact industrial design
Space-saving structure ideal for dense control cabinet installations.
Technical FAQs
Q1: What is the main function of this module?
It acts as a PLC processor responsible for logic execution, I/O control, and communication.
Q2: Does it include built-in I/O?
Yes, it integrates digital inputs and transistor outputs.
Q3: What communication interface is available?
It supports built-in Ethernet communication.
Q4: What system platform does it belong to?
It belongs to the ABB AC500-eCo PLC family.
Q5: Can it be expanded with additional modules?
Yes, it supports modular expansion within the AC500 architecture.
Q6: Is it suitable for large-scale plant automation?
No, it is designed for small to medium automation systems.
Q7: What type of outputs does it use?
It uses transistor-based digital outputs.
Q8: Can it support remote monitoring?
Yes, Ethernet connectivity allows remote access and diagnostics.
Q9: Is it suitable for continuous industrial operation?
Yes, it is designed for 24/7 industrial environments.
Q10: What programming software is used?
It is typically programmed using ABB Automation Builder.
