Brand:ABB PLC Item No.:PM5052-R-ETH Product Origin:Sweden (SE) Product Dimensions:135 × 74 × 82 mm Product Weight:0.273 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

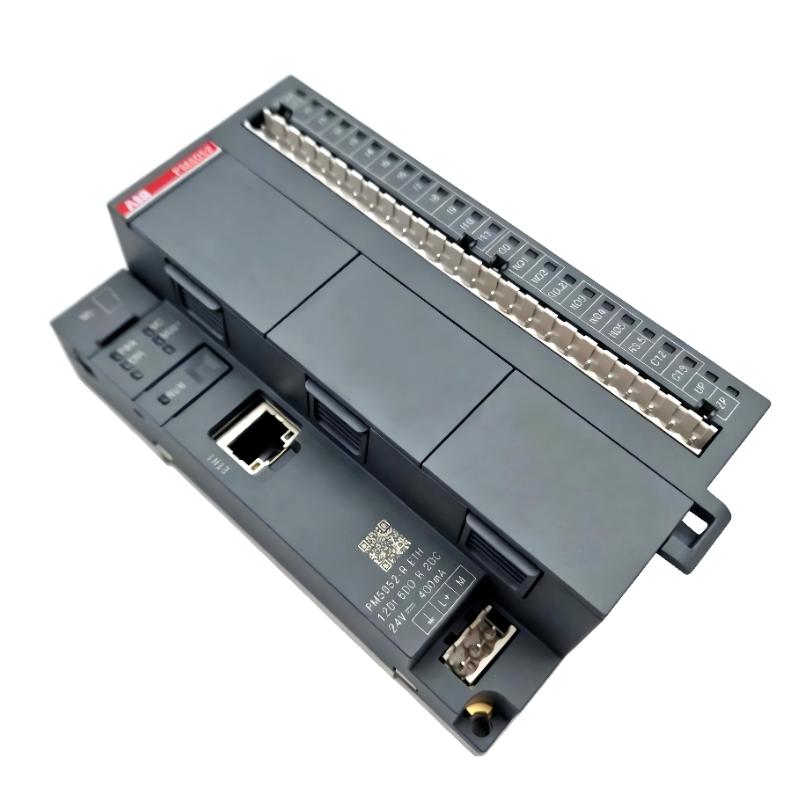

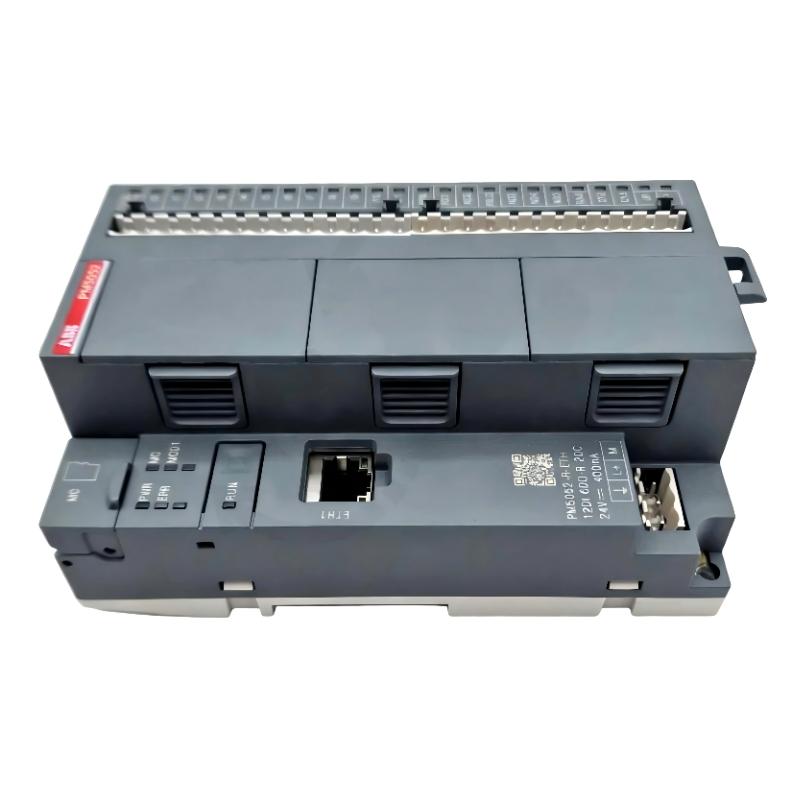

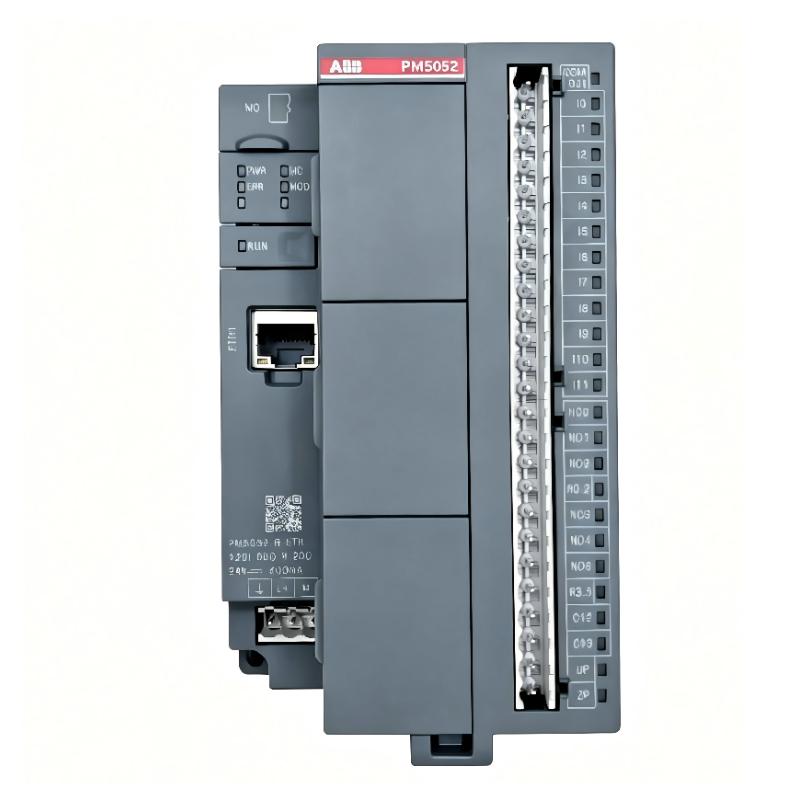

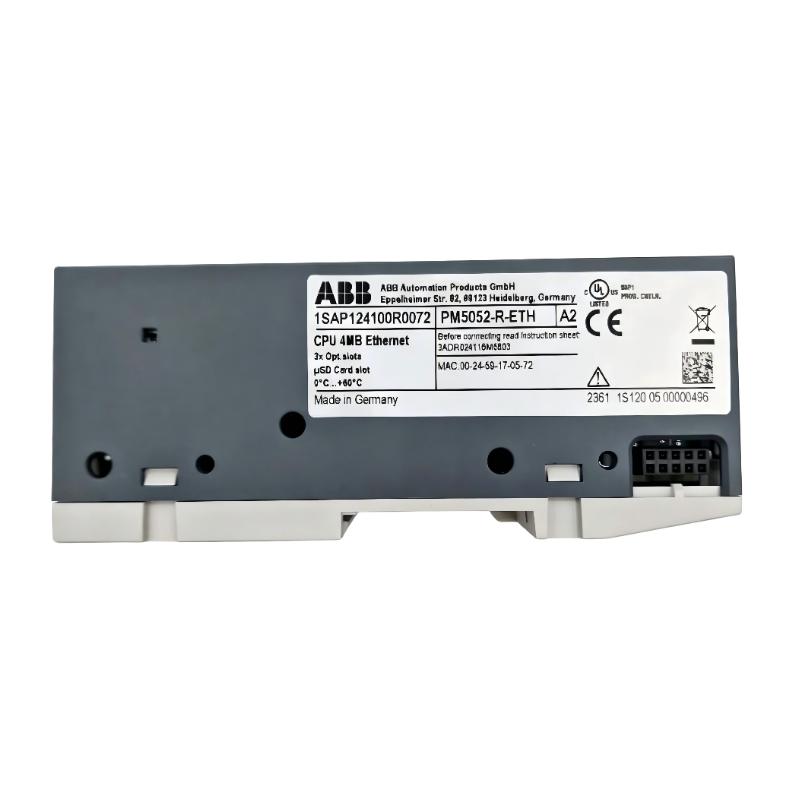

The ABB PM5052-R-ETH 1SAP124100R0072 is a high-capacity processor module designed for the AC500-eCo automation platform. It integrates processing power, digital I/O, and Ethernet communication into a compact unit, enabling efficient machine-level control in industrial applications.
Technical Specifications
Parameter
Description
Model
PM5052-R-ETH
Order Code
1SAP124100R0072
Series
ABB AC500-eCo
Processor Type
PLC Processor Module
Memory
4 MB
Digital Inputs
12 × 24 V DC
Digital Outputs
6 × Relay
Configurable I/O
2 × 24 V DC
Communication
Ethernet
Expansion Slots
3 option slots
Supply Voltage
24 V DC
Dimensions
135 × 74 × 82 mm
Weight
0.273 kg
Recommended Related Models
Model
Product Name
PM5032-T-ETH
ABB AC500-eCo Processor Module
PM5032-R-ETH
ABB AC500-eCo Relay Output Processor Module
PM5012-T-ETH
ABB AC500-eCo Compact CPU Module
PM5112-ETH
ABB AC500 Compact Controller CPU
Popular Related Models
Model
Product Name
PM5052-R-ETH
ABB AC500-eCo High Capacity Processor Module
PM5032-T-ETH
ABB AC500-eCo Transistor Output CPU Module
PM5012-T-ETH
ABB AC500-eCo Compact PLC Module
PM554-ETH
ABB AC500 Standard PLC CPU Module
Applications
• Compact machine automation systems
Used in small to mid-sized industrial machines requiring integrated logic control, I/O processing, and communication in a single PLC unit.
• OEM equipment control platforms
Common in packaging machines, conveyor systems, assembly lines, and light industrial automation applications.
• Distributed control architectures
Functions as a local control node in decentralized automation systems using Ethernet communication.
• Retrofit of legacy PLC systems
Upgrades older relay-based or basic PLC setups into modern programmable control solutions.
• Utility and process automation
Suitable for HVAC systems, water treatment units, and general-purpose industrial control tasks.
Key Advantages
• Integrated PLC architecture
Combines CPU, digital inputs, digital outputs, and Ethernet communication into one compact processor module.
• High memory capacity for compact control
Provides increased program and data handling capability for more complex automation tasks.
• Built-in Ethernet connectivity
Enables seamless integration into industrial networks for programming, diagnostics, and data exchange.
• Flexible modular expansion
Supports additional I/O and function modules within the AC500-eCo system.
• Industrial-grade compact design
Space-saving structure suitable for dense control cabinet installations.
Technical FAQs
Q1: What is the main function of this module?
It performs PLC logic execution, I/O control, and communication management in automation systems.
Q2: Does it include built-in I/O?
Yes, it includes integrated digital inputs and relay outputs.
Q3: What communication interface is available?
It has built-in Ethernet communication for industrial networking.
Q4: What system platform does it belong to?
It belongs to the ABB AC500-eCo PLC family.
Q5: Can it be expanded with additional modules?
Yes, it supports modular expansion within the AC500 architecture.
Q6: What type of outputs does it use?
It uses relay-based digital outputs.
Q7: Is it suitable for large-scale industrial plants?
No, it is designed for small to medium automation systems.
Q8: Can it support remote monitoring?
Yes, Ethernet allows remote access and diagnostics.
Q9: Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.
Q10: What programming software is used?
It is typically programmed using ABB Automation Builder.
