Brand:ABB PLC Item No.:PM5072-T‑2ETH Product Origin:Sweden (SE) Product Dimensions:135 × 74 × 82 mm Product Weight:0.265 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

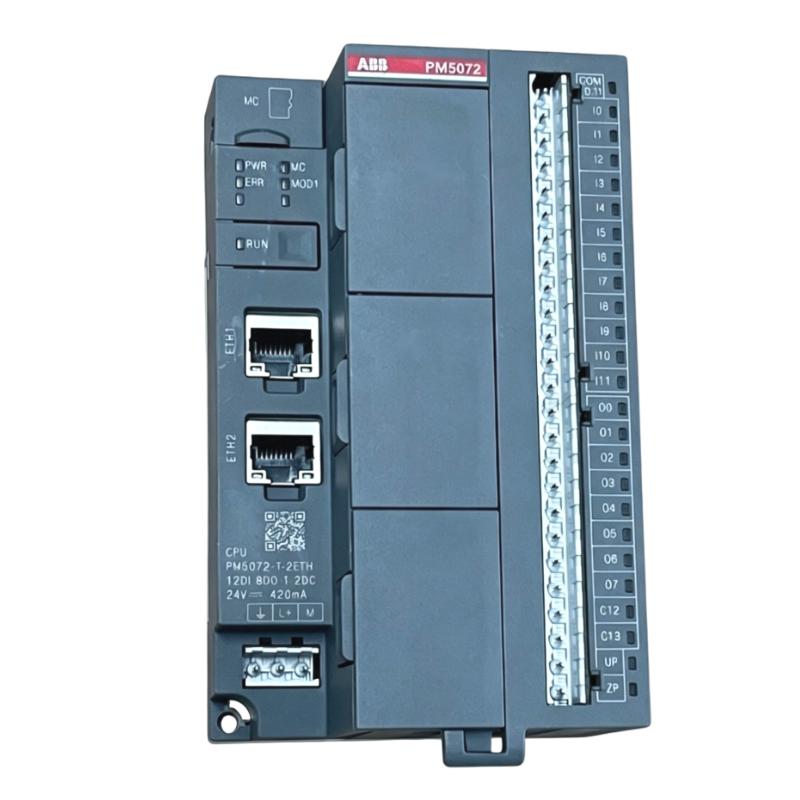

The ABB PM5072-T-2ETH 1SAP124500R0073 is a high-performance processor module designed for the AC500-eCo automation platform. It integrates processing capability, digital I/O, and dual Ethernet communication into a single compact unit, enabling efficient machine-level automation and system connectivity.
Technical Specifications
Parameter
Description
Model
PM5072-T-2ETH
Order Code
1SAP124500R0073
Series
ABB AC500-eCo
Processor Type
PLC Processor Module
Memory
8 MB
Digital Inputs
12 × 24 V DC
Digital Outputs
8 × Transistor 24 V DC (0.5 A)
Configurable I/O
2 × 24 V DC
Communication
Dual Ethernet
Expansion Slots
3 option slots
Supply Voltage
24 V DC
Dimensions
135 × 74 × 82 mm
Weight
0.265 kg
Recommended Related Models
Model
Product Name
PM5072-MC-KIT
ABB AC500 Motion Controller Kit
PM5052-R-ETH
ABB AC500-eCo High Capacity Processor Module
PM5032-T-ETH
ABB AC500-eCo Processor Module
PM5112-ETH
ABB AC500 Compact PLC CPU Module
Popular Related Models
Model
Product Name
PM5072-T-2ETH
ABB AC500-eCo Dual Ethernet Processor Module
PM5032-T-ETH
ABB AC500-eCo Standard Processor Module
PM5012-T-ETH
ABB AC500-eCo Compact PLC Module
PM554-ETH
ABB AC500 Standard PLC CPU Module
Applications
• Compact machine automation systems
Used in small to mid-sized industrial machines requiring integrated logic control, I/O handling, and high-speed communication.
• OEM equipment control platforms
Common in packaging machines, conveyor systems, assembly lines, and light industrial automation equipment.
• Distributed automation architectures
Functions as a local control node in decentralized systems using dual Ethernet communication.
• Retrofit of legacy PLC systems
Upgrades older control systems into modern programmable automation platforms.
• Utility and process automation
Suitable for HVAC systems, water treatment, and general industrial control applications.
Key Advantages
• High-performance integrated PLC architecture
Combines CPU, digital I/O, and communication functions in a compact controller module.
• Dual Ethernet interfaces
Provides two independent Ethernet ports for flexible network topologies and fast industrial communication.
• Large program memory capacity
Supports more complex control logic and data handling compared to standard compact PLCs.
• Flexible modular expansion
Allows extension with additional I/O and function modules within the AC500-eCo platform.
• Industrial-grade compact design
Optimized for dense control cabinet installations with stable long-term operation.
Technical FAQs
Q1: What is the main function of this module?
It executes PLC logic, manages I/O, and handles industrial communication tasks.
Q2: Does it support Ethernet communication?
Yes, it has two built-in Ethernet interfaces.
Q3: What PLC platform does it belong to?
It belongs to the ABB AC500-eCo automation system.
Q4: How many digital inputs and outputs does it have?
It includes 12 digital inputs and 8 digital outputs.
Q5: What type of outputs does it use?
It uses transistor-based 24 V DC outputs.
Q6: Can it be expanded with additional modules?
Yes, it supports modular expansion within the AC500 architecture.
Q7: Is it suitable for large-scale industrial plants?
No, it is designed for small to medium automation systems.
Q8: Does it support remote monitoring?
Yes, Ethernet interfaces enable remote access and diagnostics.
Q9: Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.
Q10: What software is used for programming?
It is typically programmed using ABB Automation Builder.
