Brand:ABB PLC Item No.:PM5082-T-2ETH Product Origin:Sweden (SE) Product Dimensions:135 × 74 × 82 mm Product Weight:0.262 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

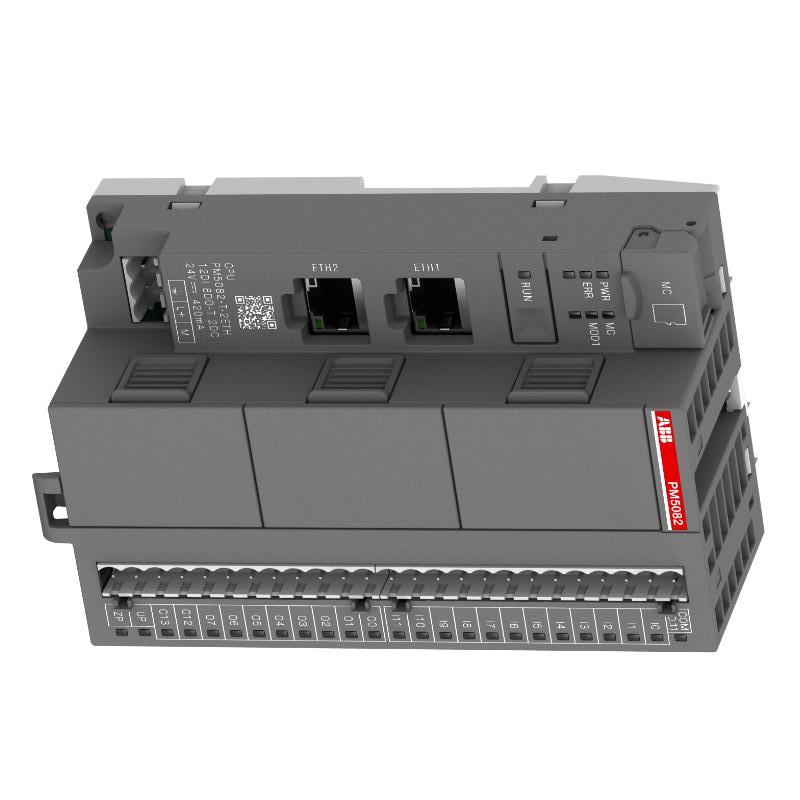

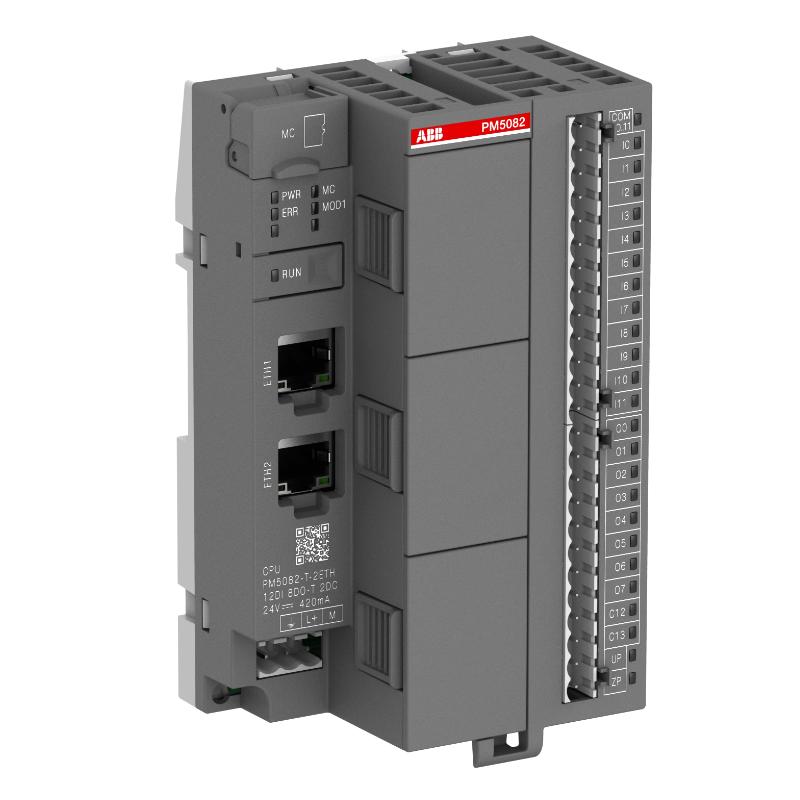

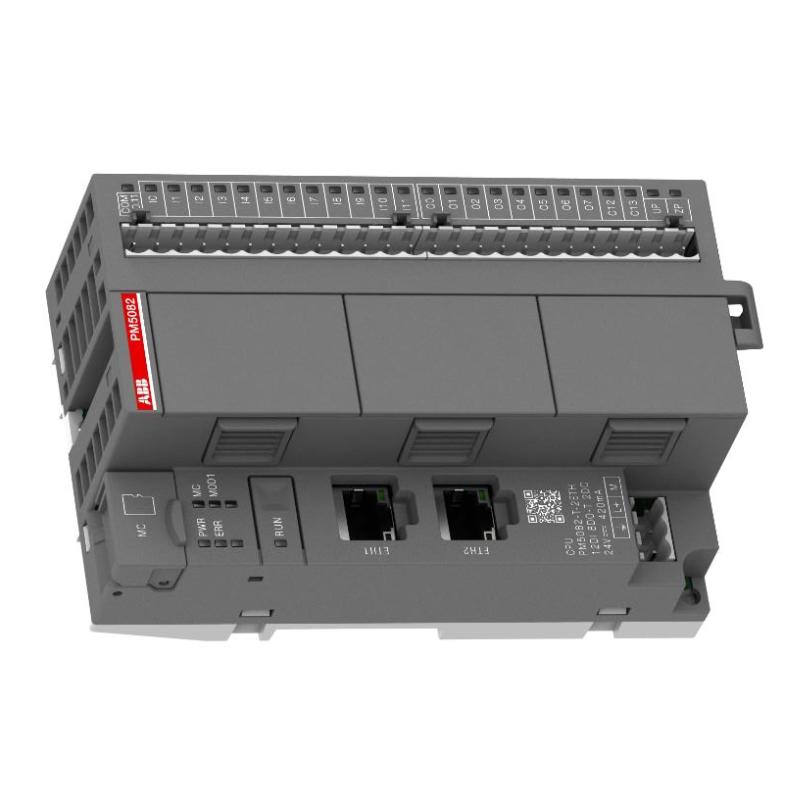

The ABB PM5082-T-2ETH 1SAP124600R0173 is a high-performance processor module designed for the AC500-eCo automation platform. It integrates processing capability, digital I/O, and dual Ethernet communication into a single compact unit, enabling efficient and flexible machine-level automation.
Technical Specifications
Parameter
Description
Model
PM5082-T-2ETH
Order Code
1SAP124600R0173
Series
ABB AC500-eCo
Processor Type
PLC Processor Module
Memory
24 MB
Digital Inputs
12 × 24 V DC
Digital Outputs
8 × Transistor 24 V DC (0.5 A)
Configurable I/O
2 × 24 V DC
Communication
Dual Ethernet
Expansion Slots
3 option slots
Supply Voltage
24 V DC
Dimensions
135 × 74 × 82 mm
Weight
0.262 kg
Recommended Related Models
Model
Product Name
PM5072-T-2ETH
ABB AC500-eCo Dual Ethernet Processor Module
PM5052-R-ETH
ABB AC500-eCo High Capacity Processor Module
PM5032-T-ETH
ABB AC500-eCo Standard Processor Module
PM5112-ETH
ABB AC500 Compact PLC CPU Module
Popular Related Models
Model
Product Name
PM5082-T-2ETH
ABB AC500-eCo Dual Ethernet Processor Module
PM5072-T-2ETH
ABB AC500-eCo Processor Module
PM5052-R-ETH
ABB AC500-eCo Relay Output CPU Module
PM5012-T-ETH
ABB AC500-eCo Compact PLC Module
Applications
• Compact machine automation systems
Used in small to mid-sized industrial machines requiring integrated logic control, I/O handling, and fast communication in a single PLC unit.
• OEM equipment control platforms
Common in packaging machines, conveyor systems, assembly lines, and light industrial automation equipment.
• Distributed control architectures
Functions as a local control node in decentralized automation systems using dual Ethernet communication.
• Retrofit of legacy PLC systems
Replaces older relay-based or basic PLC controllers with modern programmable automation solutions.
• Utility and process automation
Suitable for HVAC systems, water treatment units, and general industrial control applications.
Key Advantages
• High-performance integrated PLC architecture
Combines CPU, digital I/O, and communication functions in a compact processor module.
• Large memory capacity for complex logic
Provides higher program and data handling capability for demanding automation tasks.
• Dual Ethernet interfaces
Enables flexible networking, separation of programming and process communication, and improved system architecture.
• Expanded system scalability
Supports multiple expansion modules within the AC500-eCo platform.
• Industrial-grade compact design
Optimized for stable operation in dense control cabinet environments.
Technical FAQs
Q1: What is the main function of this module?
It performs PLC logic execution, I/O control, and industrial communication management.
Q2: Does it support Ethernet communication?
Yes, it includes two built-in Ethernet ports.
Q3: What PLC system is it part of?
It belongs to the ABB AC500-eCo automation platform.
Q4: How many digital inputs and outputs does it have?
It typically includes 12 digital inputs and 8 digital outputs.
Q5: What type of outputs does it use?
It uses transistor-based 24 V DC outputs.
Q6: Can it be expanded with additional modules?
Yes, it supports modular expansion within the AC500 architecture.
Q7: Is it suitable for large-scale plant automation?
No, it is designed for small to medium industrial systems.
Q8: Does it support remote access?
Yes, Ethernet interfaces allow remote monitoring and diagnostics.
Q9: Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.
Q10: What software is used for programming?
It is typically programmed using ABB Automation Builder.
