Brand:ABB PLC Item No.:PM5630-2ETH Product Origin:Sweden (SE) Product Dimensions:76 × 62 × 67.5 mm Product Weight:0.134 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

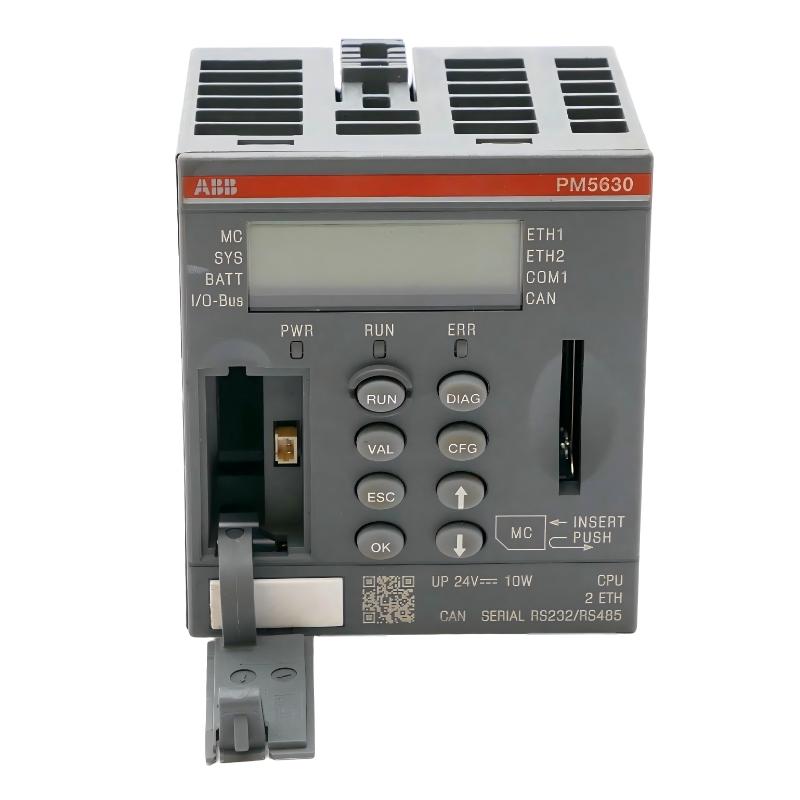

The ABB PM5630-2ETH 3ABD00038893 is a processor module designed for the AC500 V3 automation platform. It integrates PLC processing, communication, and system control functions into a compact and efficient controller.
Technical Specifications
Parameter
Description
Model
PM5630-2ETH
Order Code
3ABD00038893
Series
ABB AC500 V3
Processor Type
PLC Processor Module
Memory
8 MB
Digital Inputs
—
Digital Outputs
—
Communication
Dual Ethernet, RS232/485, CAN
Supply Voltage
24 V DC
Dimensions
76 × 62 × 67.5 mm
Weight
0.134 kg
Recommended Related Models
Model
Product Name
PM5650-2ETH
ABB AC500 V3 Processor Module
PM5670-2ETH
ABB AC500 V3 High Memory CPU
PM5072-T-2ETH
ABB AC500-eCo Dual Ethernet CPU
PM5052-R-ETH
ABB AC500-eCo Processor Module
Popular Related Models
Model
Product Name
PM5630-2ETH
ABB AC500 V3 Processor Module
PM5650-2ETH
ABB AC500 V3 Advanced CPU
PM5012-T-ETH
ABB AC500-eCo Compact PLC Module
PM554-ETH
ABB AC500 Standard PLC CPU Module
Applications
• Compact and mid-level machine automation
Used in industrial machines requiring stable PLC control, I/O handling, and multi-protocol communication in a single controller.
• OEM equipment control systems
Common in packaging lines, assembly equipment, conveyors, and automated production machinery.
• Process and utility automation
Applied in HVAC systems, water treatment, pumping stations, and general industrial process control.
• Distributed automation architecture
Functions as a control node in networked automation systems with dual Ethernet communication.
• Retrofit and system upgrade projects
Replaces legacy PLC systems with modern AC500 V3 control performance.
Key Advantages
• High-performance AC500 V3 architecture
Provides stable execution of complex control logic with optimized processing efficiency.
• Dual Ethernet communication
Supports two independent Ethernet interfaces for flexible networking and system separation.
• Multi-protocol industrial connectivity
Supports common industrial communication standards for integration with diverse systems.
• Large program and data memory
8 MB memory enables handling of more advanced automation tasks and logic structures.
• Robust industrial-grade design
Engineered for continuous operation in demanding industrial environments.
Technical FAQs
Q1: What is the main function of this module?
It acts as a PLC processor for logic execution, communication, and system control.
Q2: What platform does it belong to?
It belongs to the ABB AC500 V3 automation system.
Q3: Does it support Ethernet communication?
Yes, it features two independent Ethernet interfaces.
Q4: What is the memory capacity?
It has 8 MB of user program memory.
Q5: Can it be used in distributed control systems?
Yes, it is designed for networked and distributed automation applications.
Q6: Is it suitable for large industrial plants?
It is best suited for small to mid-sized automation systems.
Q7: What communication protocols are supported?
It supports common industrial Ethernet-based protocols used in ABB AC500 systems.
Q8: Can it replace older PLC models?
Yes, it is commonly used for upgrading legacy control systems.
Q9: Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.
Q10: What software is used for programming?
It is typically programmed using ABB Automation Builder.
