Brand:ABB PLC Item No.:PM5670-MC-KIT Product Origin:Sweden (SE) Product Dimensions:250 × 110 × 180 mm Product Weight:0.363 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

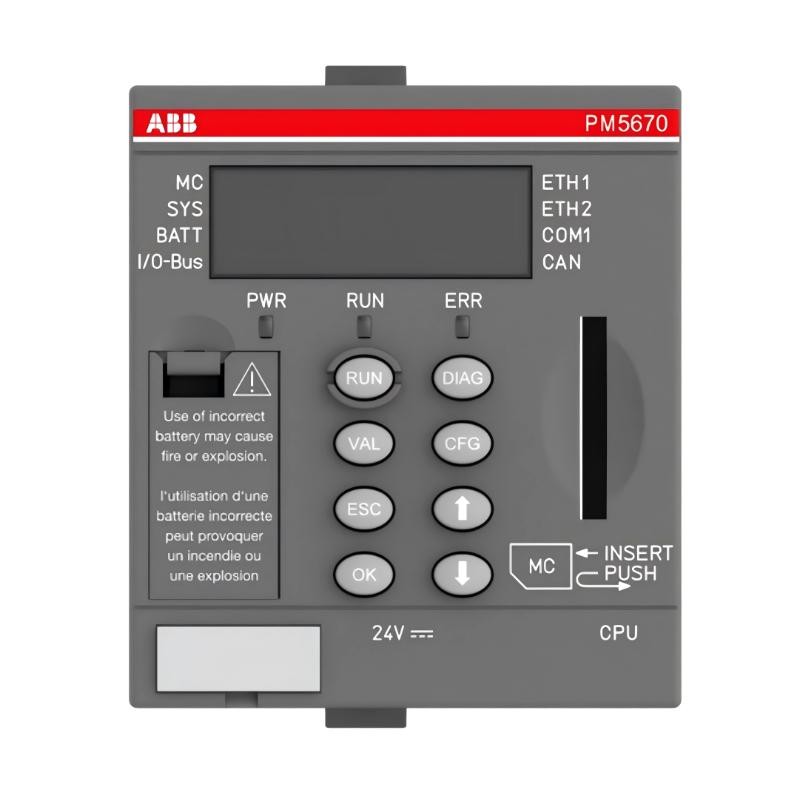

The ABB PM5670-MC-KIT 1SAP151000R0379 is a high-end controller kit designed for the AC500 automation platform. It integrates the PM5670-2ETH processor module, CM579-ETHCAT communication module, TB5610-ETH terminal base, and PS5611-MC power module into a complete industrial control solution.
Technical Specifications
Parameter
Description
Model
PM5670-MC-KIT
Order Code
1SAP151000R0379
Series
ABB AC500 V3
Product Type
Controller Kit
CPU Module
PM5670-2ETH
Communication Module
CM579-ETHCAT
Terminal Base
TB5610-ETH
Power Module
PS5611-MC
Memory
160 MB
Communication
Dual Ethernet, EtherCAT
Supply Voltage
24 V DC
Protection Class
IP20
Dimensions
250 × 110 × 180 mm
Weight
0.363 kg
Recommended Related Models
Model
Product Name
PM5650-MC-KIT
ABB AC500 Controller Kit
PM5670-2ETH
ABB AC500 V3 CPU Module
PM5630-2ETH
ABB AC500 V3 Processor Module
PM5072-T-2ETH
ABB AC500 Dual Ethernet CPU Module
Popular Related Models
Model
Product Name
PM5670-MC-KIT
ABB AC500 High-End Controller Kit
PM5650-MC-KIT
ABB AC500 Controller Kit
PM5072-MC-KIT
ABB AC500 Motion Controller Kit
PM554-ETH
ABB Standard PLC CPU Module
Applications
• High-performance machine automation
Used in advanced industrial machines requiring coordinated logic control, motion readiness, and high-speed industrial communication.
• OEM equipment systems
Common in packaging machines, robotics cells, assembly lines, and synchronized production equipment.
• Distributed automation architecture
Acts as a central controller in networked systems using dual Ethernet and fieldbus communication.
• Process and production line control
Suitable for complex manufacturing environments requiring stable real-time control performance.
• Retrofit and system modernization
Replaces older PLC architectures with a modern AC500 V3-based automation platform.
Key Advantages
• Complete controller kit architecture
Integrates CPU, communication module, terminal base, and power module into a unified automation solution.
• High memory capacity and performance
Supports large-scale control programs and fast execution for complex automation tasks.
• Dual Ethernet communication
Enables flexible network segmentation and high-speed industrial data exchange.
• Real-time industrial communication support
Designed for synchronized control in motion and distributed automation systems.
• Scalable AC500 platform integration
Allows expansion with I/O, motion, and communication modules.
Technical FAQs
Q1: What is the main function of the PM5670-MC-KIT?
It is a complete PLC controller kit for advanced industrial automation and control systems.
Q2: What components are included in the kit?
It includes PM5670-2ETH CPU, CM579-ETHCAT communication module, TB5610-ETH terminal base, and PS5611-MC power module.
Q3: Does it support Ethernet communication?
Yes, it supports dual industrial Ethernet interfaces.
Q4: What is the memory capacity of the CPU?
The PM5670-2ETH CPU provides approximately 160 MB memory capacity.
Q5: Is it suitable for motion control systems?
Yes, it supports motion-related automation when integrated with AC500 motion solutions.
Q6: Can it be used in distributed systems?
Yes, it is designed for networked and distributed automation architectures.
Q7: Is it suitable for large industrial plants?
It is mainly intended for machine-level and mid-scale automation systems.
Q8: Does it support real-time communication?
Yes, it supports real-time industrial communication through Ethernet and fieldbus modules.
Q9: Can it be expanded with additional modules?
Yes, it supports modular expansion within the AC500 platform.
Q10: What industries commonly use this controller kit?
It is used in packaging, automotive, electronics manufacturing, robotics, and general industrial automation.
