Brand:ABB PLC Item No.:PM5675-2ETH Product Origin:Sweden (SE) Product Dimensions:76 × 62 × 67.5 mm Product Weight:0.135 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

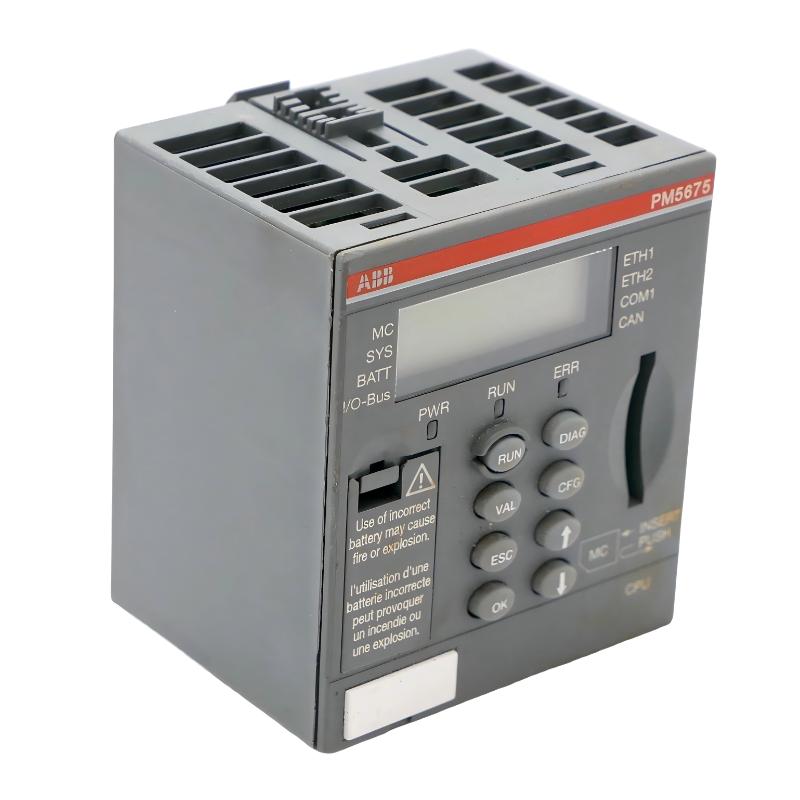

The ABB PM5675-2ETH 1SAP151500R0278 is a high-end processor module designed for the AC500 V3 automation platform. It combines powerful processing capability, large memory capacity, and dual Ethernet communication into a compact controller unit.
Technical Specifications
Parameter
Description
Model
PM5675-2ETH
Order Code
1SAP151500R0278
Series
ABB AC500 V3
Processor Type
PLC Processor Module
Memory
160 MB
Communication
2× Ethernet, RS232/485, CAN
Supply Voltage
24 V DC
Protection Class
IP20
Dimensions
76 × 62 × 67.5 mm
Weight
0.135 kg
Recommended Related Models
Model
Product Name
PM5670-MC-KIT
ABB AC500 High-End Controller Kit
PM5650-MC-KIT
ABB AC500 Controller Kit
PM5630-2ETH
ABB AC500 V3 Processor Module
PM5082-T-2ETH
ABB AC500 Dual Ethernet Processor Module
Popular Related Models
Model
Product Name
PM5675-2ETH
ABB AC500 V3 High Performance CPU Module
PM5650-2ETH
ABB AC500 V3 Processor Module
PM5072-T-2ETH
ABB AC500-eCo Processor Module
PM554-ETH
ABB Standard PLC CPU Module
Applications
• High-performance machine automation systems
Used in complex industrial machines requiring fast logic execution, multi-network communication, and reliable real-time control.
• OEM production equipment
Common in packaging lines, robotics systems, assembly machines, and synchronized multi-axis production equipment.
• Distributed control architectures
Acts as a high-capacity controller node in networked automation systems using dual Ethernet communication.
• Process and utility automation
Suitable for water treatment, HVAC systems, energy systems, and general industrial process control.
• System modernization and upgrades
Used to replace older PLC platforms with a modern AC500 V3 architecture for improved performance and connectivity.
Key Advantages
• High-performance AC500 V3 architecture
Delivers fast processing and efficient execution for demanding industrial automation tasks.
• Very large memory capacity
Provides 160 MB program memory, suitable for complex logic, data handling, and advanced control structures.
• Dual Ethernet communication
Enables flexible network design, separation of control and engineering traffic, and improved system stability.
• Multi-interface connectivity
Supports RS232/485 and CAN alongside Ethernet for broad industrial integration.
• Compact industrial-grade design
Small footprint CPU module designed for dense control cabinet installations.
Technical FAQs
Q1: What is the main function of this module?
It acts as a PLC processor for executing control logic, communication, and automation tasks.
Q2: What system does it belong to?
It belongs to the ABB AC500 V3 PLC platform.
Q3: Does it support Ethernet communication?
Yes, it includes 2 Ethernet interfaces.
Q4: What is the memory size?
It provides 160 MB program and data memory.
Q5: What additional communication ports are available?
RS232/RS485 and CAN interfaces are included.
Q6: Is it suitable for motion control systems?
Yes, it can be integrated into motion and advanced automation architectures.
Q7: Is it suitable for large industrial plants?
It is mainly used for machine-level and mid-scale automation systems.
Q8: Can it be expanded with additional modules?
Yes, it supports modular expansion within the AC500 platform.
Q9: Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.
Q10: What software is used for programming?
It is typically programmed using ABB Automation Builder.
