Brand:Emerson Module Item No.:Emerson VE4001S2T1 Product Origin:USA Product Dimensions:105 × 125 × 42 mm Product Weight:0.50 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

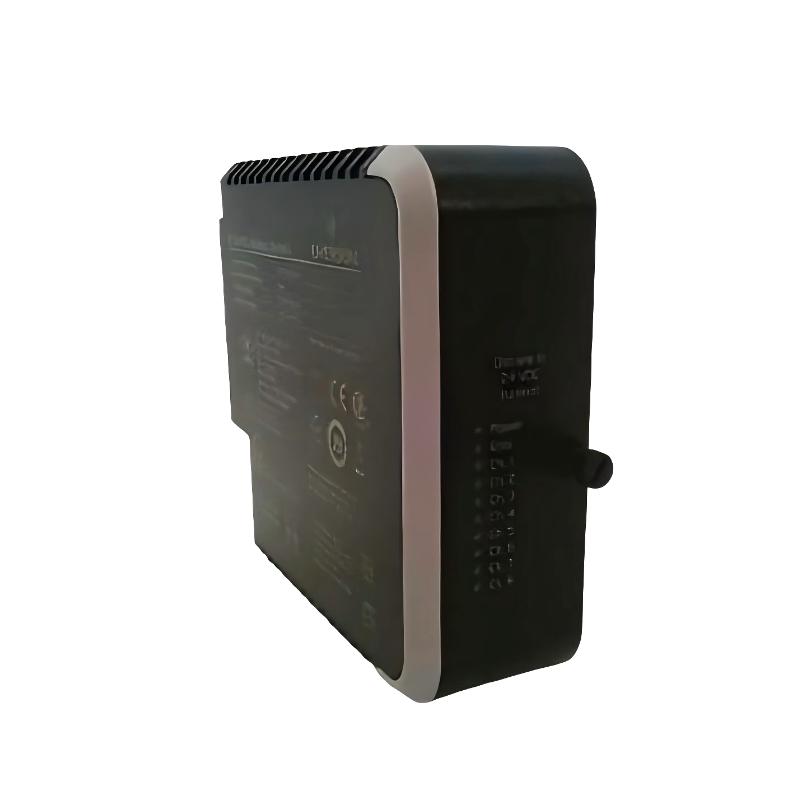

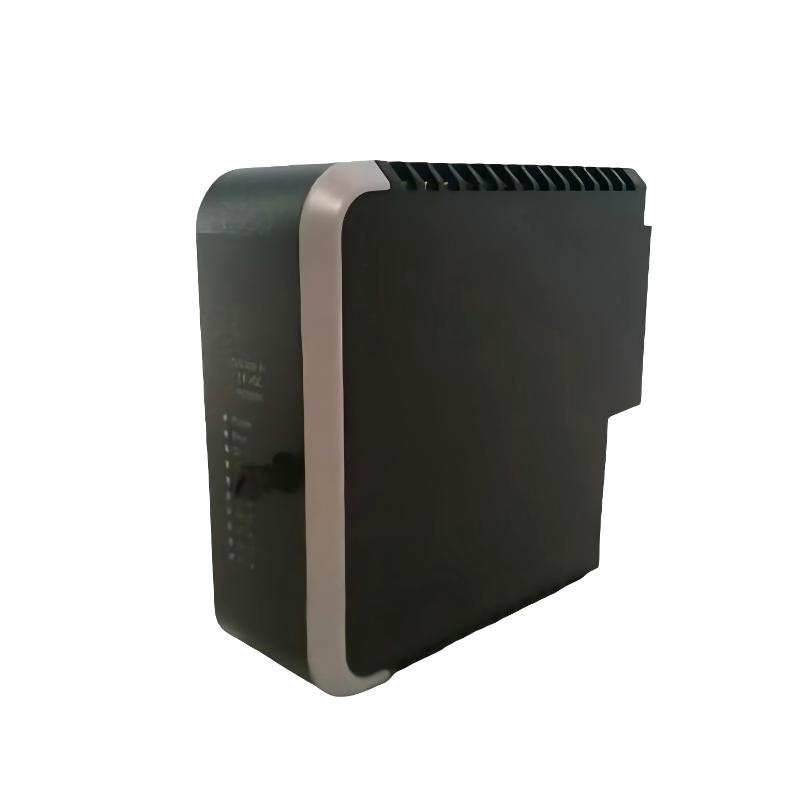

The Emerson VE4001S2T1 is a DeltaV Series 2 analog input module designed for reliable acquisition of standard process signals in industrial automation systems. It is used to convert field instrument outputs into digital signals that can be processed by the DeltaV control system, ensuring accurate monitoring of process variables such as pressure, temperature, flow, and level.
This module is engineered for high stability, strong electrical isolation, and consistent performance in harsh industrial environments, making it suitable for continuous process industries where signal accuracy directly impacts plant safety and efficiency.
Technical Specifications
Parameter
Specification
Manufacturer
Emerson
Model
VE4001S2T1
Product Type
Analog Input Module (AI)
System Platform
DeltaV Series 2 I/O
Input Channels
8 channels (typical Series 2 configuration)
Input Signal
4–20 mA / process transmitter signals
Signal Type
Analog process measurement
Resolution
High-resolution A/D conversion
Isolation
Channel-to-system electrical isolation
Diagnostic Function
Channel status & fault detection
Wiring System
DeltaV termination assembly compatible
Mounting Type
I/O carrier mounted module
Operating Temperature
-20°C to +70°C
Humidity Range
5% to 95% non-condensing
Physical Dimensions & Weight
Parameter
Specification
Dimensions (H × W × D)
105 × 125 × 42 mm
Weight
Approx. 0.25–0.50 kg
System Integration & Recommended Related Modules
The VE4001S2T1 is commonly used in Emerson DeltaV systems together with:
Emerson VE3006 MD Plus Controller Module
Emerson VE3004 M5 Plus Controller Module
Emerson VE4003S2B1 Analog Input Module
Emerson VE4005S2B1 Analog Output Module
Emerson VE4033S2B1 Redundant Input Module
Emerson SE4053S2B11 Analog Input Plus Card
Emerson SE4055S2B5 Analog Output Plus Card
Emerson SE4083S2B11 Redundant Input Module
Emerson SE4082S1T2B8 Digital Output Module
These components collectively form a complete distributed control architecture for process industries.
Common Emerson DeltaV Analog Input Modules
Frequently used related modules in similar automation environments include:
VE4001S2T1 Analog Input Module
VE4003S2B1 4–20 mA HART Input Module
VE4003S2B2 / S2B3 / S2B4 Series Input Variants
VE4033S2B1 Redundant Analog Input Module
SE4053S2B11 High-Density Input Card
Industrial Applications
The VE4001S2T1 module is widely used in industrial environments requiring stable and accurate analog signal acquisition:
Oil & Gas Industry
Monitors pressure, flow, and temperature transmitters in upstream and downstream operations.
Chemical & Petrochemical Plants
Provides accurate process variable acquisition for reactors, separators, and continuous production systems.
Power Generation Facilities
Supports turbine monitoring, boiler control, and auxiliary system instrumentation.
Water & Wastewater Treatment
Used for flow measurement, tank level monitoring, and pump control systems.
Manufacturing Automation
Enables stable measurement of machine process variables for production control and optimization.
Key Advantages
Stable Analog Signal Acquisition
Ensures accurate conversion of field signals into digital data for control systems.
High Electrical Isolation
Reduces noise interference and improves system reliability in harsh environments.
Compact Multi-Channel Design
Provides efficient channel density for optimized control cabinet space usage.
Industrial-Grade Reliability
Designed for continuous 24/7 operation in demanding process industries.
Seamless DeltaV Integration
Fully compatible with Emerson DeltaV Series 2 architecture.
Strong Diagnostic Capability
Supports fault detection for improved maintenance and system uptime.
Technical FAQs
1. What is the main function of VE4001S2T1?
It is used to acquire analog process signals and send them to the DeltaV control system.
2. What type of signals does it handle?
It typically handles 4–20 mA analog transmitter signals.
3. How many channels does it support?
It is commonly used as an 8-channel analog input module.
4. What industries use this module?
Oil & gas, chemical, power generation, water treatment, and manufacturing.
5. Is it suitable for harsh environments?
Yes, it is designed for industrial-grade operating conditions.
6. Does it support signal isolation?
Yes, it provides electrical isolation between field and system.
7. What system is it used in?
Emerson DeltaV Series 2 distributed control systems.
8. What is its mounting method?
It is installed on a DeltaV I/O carrier or termination assembly.
9. Does it support diagnostics?
Yes, it supports channel-level diagnostic functions.
10. Why is VE4001S2T1 widely used?
Because it provides reliable, accurate, and stable analog signal acquisition for critical industrial process control applications.
