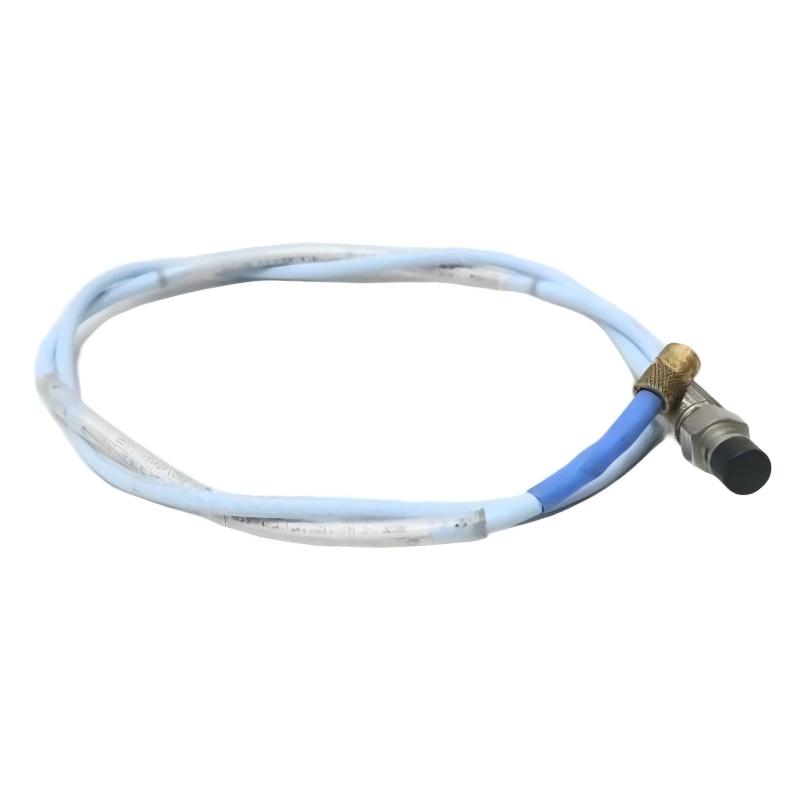

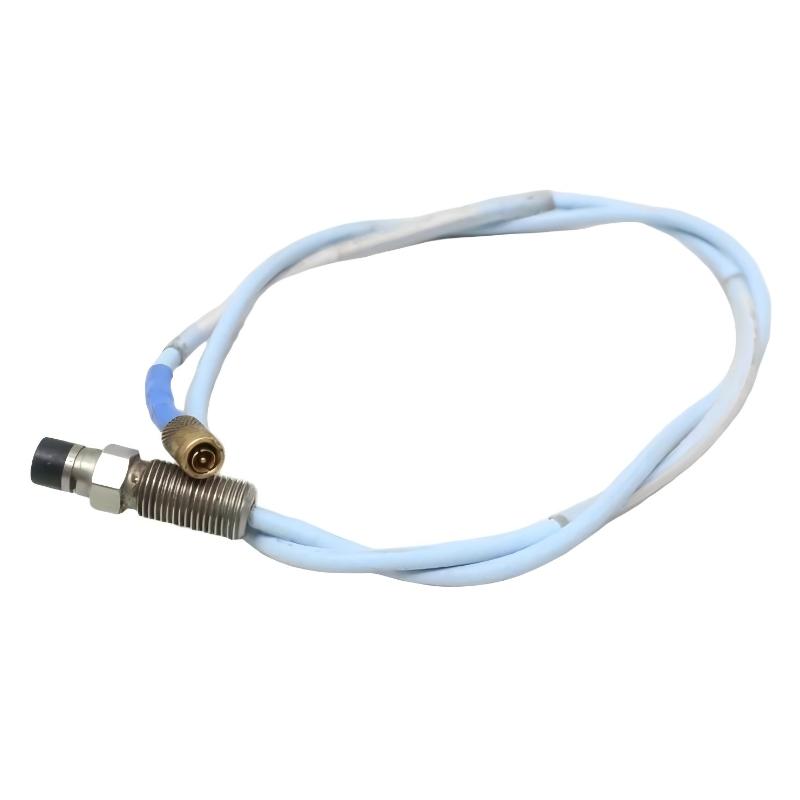

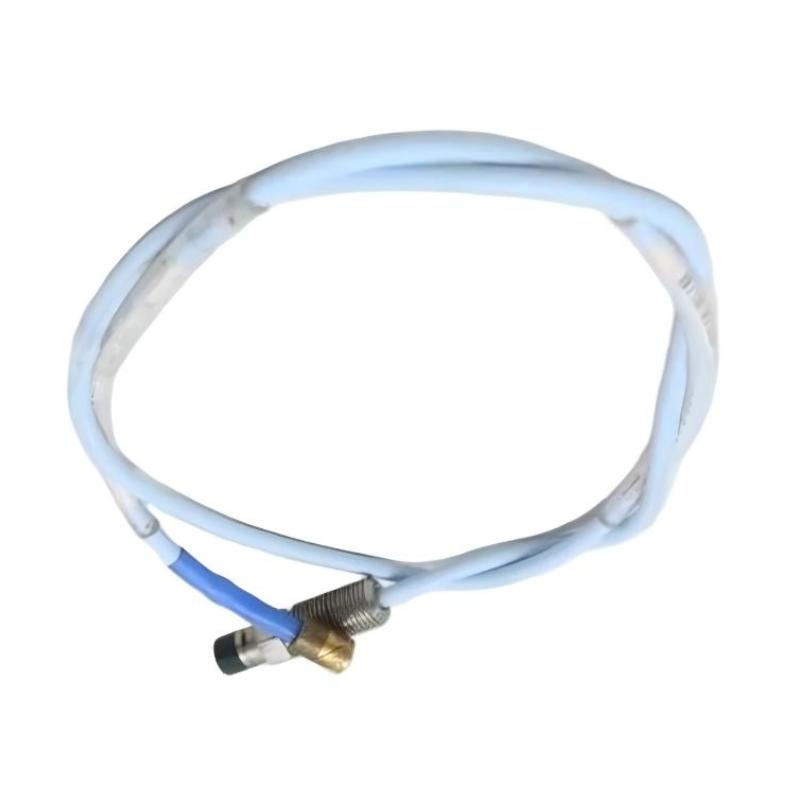

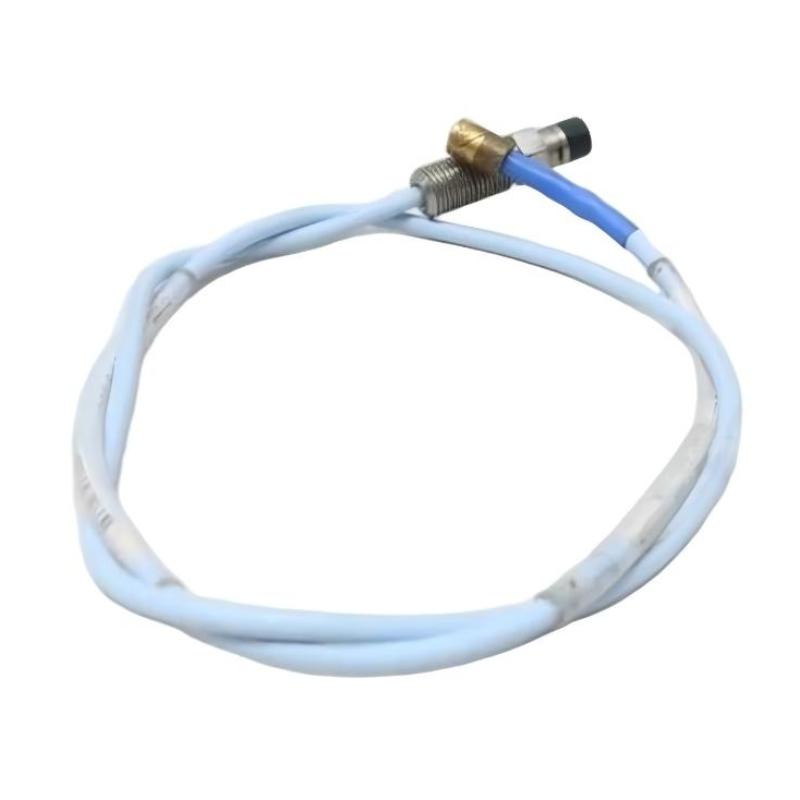

Bently Nevada 330106-05-30-05-02-RU 3300 XL 8 mm Reverse Mount Probe

Applications

• Turbine shaft vibration monitoring
Designed for continuous measurement of shaft vibration and displacement in steam, gas, and hydro turbines where reverse mounting configurations are required.

• Compressor condition monitoring
Provides accurate shaft position and dynamic vibration data for centrifugal and axial compressors.

• Restricted-access machinery installations
Ideal for applications where standard probe mounting is impractical due to limited installation space.

• Machinery protection systems
Supplies critical vibration and displacement signals for alarm, trip, and shutdown functions.

• Predictive maintenance programs
Supports equipment health monitoring and reliability-centered maintenance strategies.

Key Advantages

• Reverse mount installation design
Allows installation from the rear side of machine casings or mounting brackets where conventional probes cannot be accommodated.

• Non-contact eddy current sensing
Measures shaft movement without physical contact, eliminating mechanical wear and ensuring long service life.

• High measurement accuracy
Provides stable and repeatable vibration and displacement measurements for critical machinery monitoring.

• Compact 0.5-meter system length
Suitable for installations where monitoring electronics are positioned close to the measurement point.

• Full 3300 XL system compatibility
Integrates seamlessly with Bently Nevada 3300 XL transducer systems and monitoring platforms.

Technical FAQs

Q1: What is the primary function of this reverse mount probe?
It measures shaft vibration, displacement, and position in rotating machinery.

Q2: What makes a reverse mount probe different from a standard probe?
It is designed for installation from the opposite side of the mounting surface, making it suitable for restricted-access applications.

Q3: What sensing technology does it use?
The probe utilizes eddy current non-contact measurement technology.

Q4: What is the probe diameter?
The sensing tip diameter is 8 mm.

Q5: What is the total system length?
The total system length is 0.5 meter.

Q6: Is physical contact with the shaft required?
No, measurements are performed without touching the rotating surface.

Q7: Can it be used in turbine and compressor applications?
Yes, it is widely used in both turbine and compressor monitoring systems.

Q8: Is it suitable for machinery protection systems?
Yes, it provides essential vibration and displacement data for protection platforms.

Q9: Can it operate continuously in industrial environments?
Yes, it is designed for reliable 24/7 operation.

Q10: Does it support predictive maintenance programs?
Yes, it supplies critical condition monitoring data used for maintenance planning and asset reliability improvement.
