Brand:Allen Bradley PLC Item No.:22D-D012N104 Product Origin:USA Product Dimensions:260 x 130 x 180 mm Product Weight:4.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

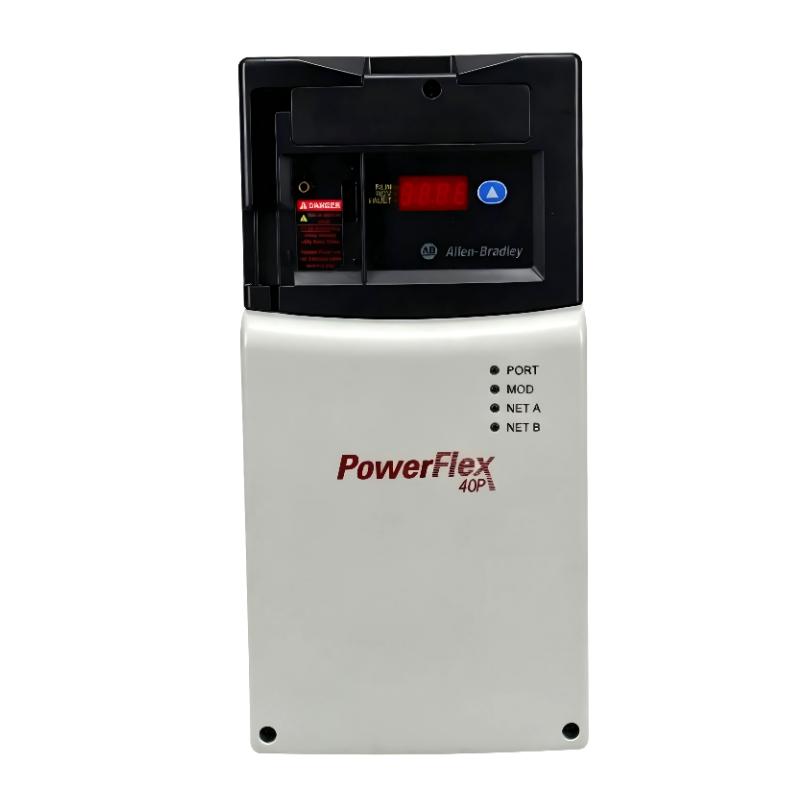

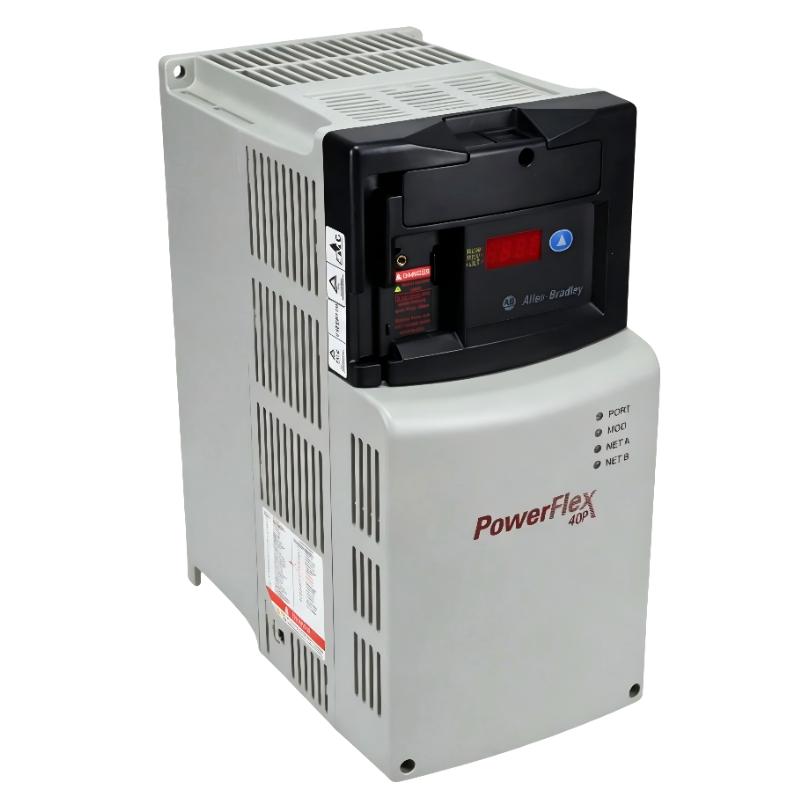

The Allen Bradley 22D-D012N104 PowerFlex 40P AC Drive delivers reliable, compact, and efficient motor control for medium-power industrial applications. Its precision control, energy efficiency, and network flexibility make it ideal for scalable and maintainable automation systems.
Technical Specifications
Specification
Details
Product Model
22D-D012N104
Module Type
PowerFlex 40P AC Drive
Dimensions (H × W × D)
260 × 130 × 180 mm
Weight
4.3 kg (9.48 lb)
Function
AC motor speed, torque, and direction control
System Compatibility
Allen Bradley PowerFlex 40P and networked control systems
Installation
Control cabinet / Panel mount
Input Voltage
200–240V AC, 1-phase
Output
3-phase motor control
Application
Industrial motor control, process automation
Environment
Industrial-grade operating conditions
Manufacturer
Allen Bradley
High-Performance AC Drive for Medium Power Motor Control
The Allen Bradley 22D-D012N104 PowerFlex 40P AC Drive offers reliable and precise control of three-phase AC motors in medium-power industrial applications. Its robust design, combined with easy integration into control panels, delivers efficient motor operation, energy savings, and enhanced process performance.
This drive is ideal for applications that demand precise speed and torque control, network integration, and consistent reliability under industrial conditions.
Applications include:
Conveyor and material handling systems
Pumps, fans, and HVAC equipment
Packaging and processing machinery
Chemical, petrochemical, and oil & gas facilities
Power generation and utility automation
Modular automation and motor control panels
Distributed industrial drive systems requiring compact footprint
Key Advantages
Medium Power Performance: Controls motors up to 3 HP (2.2 kW) reliably.
Precise Motor Control: Offers accurate speed, torque, and direction control.
Energy Efficient: Optimizes motor operation for reduced energy consumption.
Compact Footprint: 260 × 130 × 180 mm, ideal for control panel integration.
Industrial-Grade Design: Durable construction for continuous operation in harsh environments.
Flexible Network Integration: Compatible with EtherNet/IP or Profibus communication adapters.
Simplified Maintenance: Quick setup, diagnostics, and replacement reduce downtime.
Technical FAQs
1. What is the primary function of this AC drive?
It regulates speed, torque, and direction of three-phase AC motors for industrial applications.
2. What is the rated power of this model?
The 22D-D012N104 is rated for 3 HP (2.2 kW) motors.
3. Can it integrate with industrial networks?
Yes, via optional communication adapters such as EtherNet/IP or Profibus.
4. Is it suitable for harsh industrial environments?
Yes, it is built to withstand continuous operation under demanding conditions.
5. Does it support variable torque applications?
Yes, suitable for both variable and constant torque applications.
6. What protection features are included?
Includes overload, overcurrent, and fault protection.
7. Can it be used in multi-drive coordinated systems?
Yes, it supports networked drives for coordinated motor control.
8. How is it configured?
Configuration is via keypad, PC software, or connected control systems.
9. Which industries commonly use this drive?
Manufacturing, material handling, chemical, oil & gas, utilities, and process automation.
10. Can it handle frequent start/stop cycles?
Yes, it is designed for applications requiring frequent motor starts and stops.
