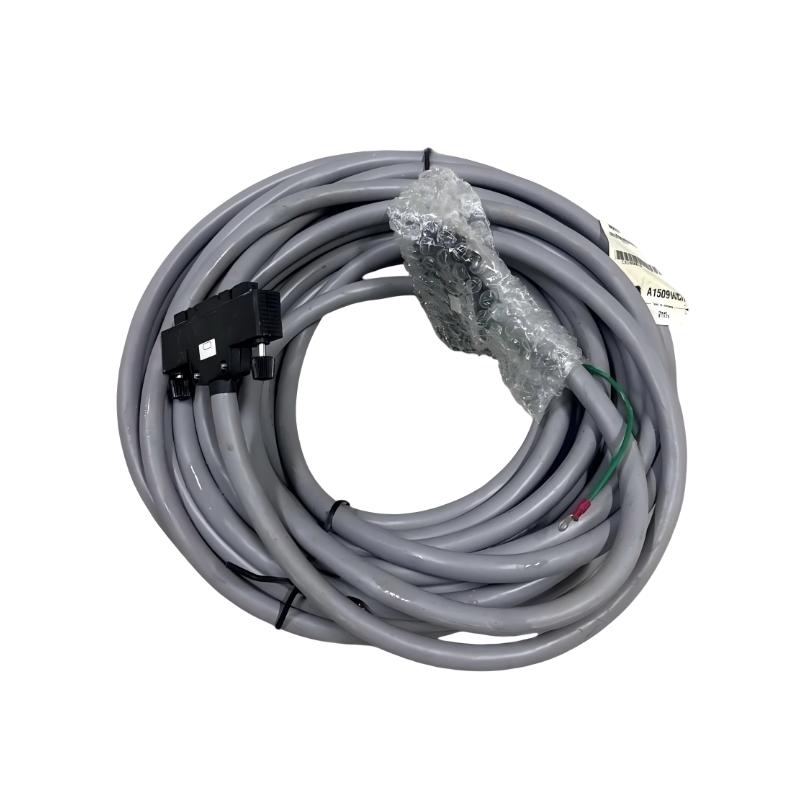

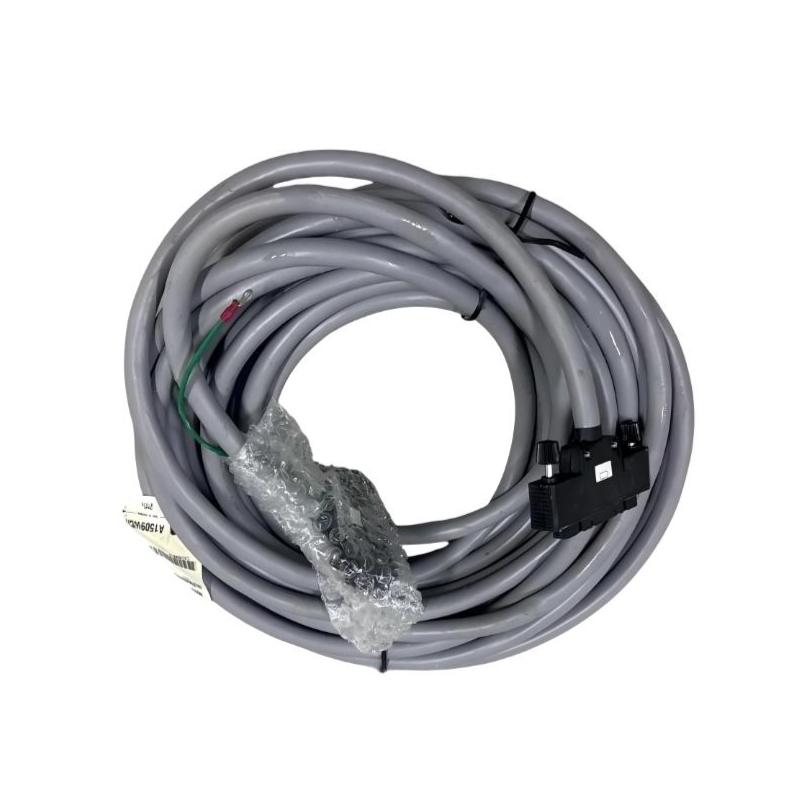

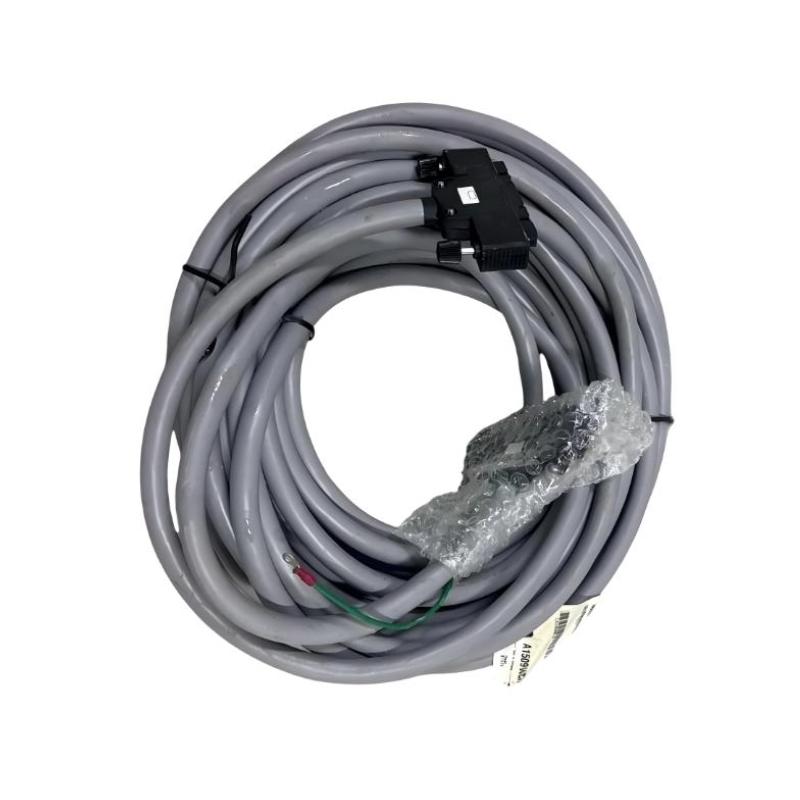

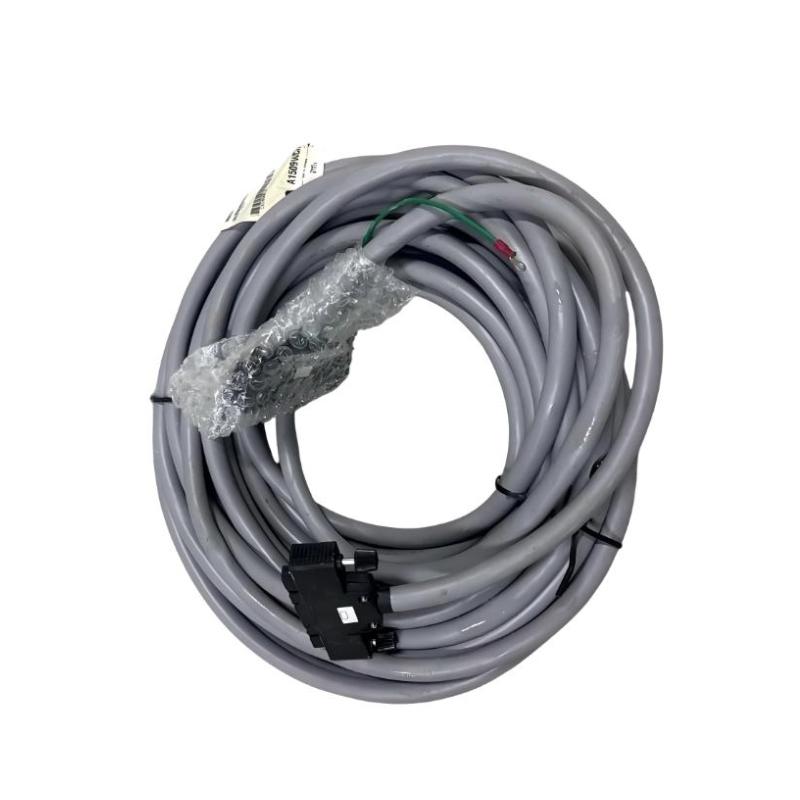

The Yokogawa AKB335-M005 is a high-reliability 50-pin signal cable designed for secure electrical connection between I/O modules and terminal boards in Yokogawa distributed control systems (DCS), especially within the CENTUM architecture.
Engineered for industrial automation environments, this cable ensures stable signal transmission, reduced noise interference, and long-term operational durability in continuous process industries such as petrochemical plants, power generation facilities, and large-scale manufacturing systems.
Unlike generic industrial cables, the AKB335 series is purpose-built to maintain signal integrity under harsh electrical and environmental conditions, making it a trusted component in safety-critical automation networks.
Technical Specifications — Stable Signal Transmission with Industrial-Grade Construction
Core Technical Data
| Parameter | Specification |
|---|---|
| Product Model | AKB335-M005 |
| Brand | Yokogawa |
| Product Type | Signal Cable (50–50 pin connection) |
| Function | I/O Module to Terminal Board connection |
| Cable Length | 5 meters |
| Connector Type | Multi-pin industrial DCS connector |
| System Compatibility | Yokogawa CENTUM CS / CENTUM VP systems |
Electrical & Environmental Characteristics
- Operating temperature: -20°C to 70°C
- Designed for industrial EMI-resistant environments
- Stable signal transmission for digital and analog I/O modules
- Low-loss shielding structure for noise suppression
- Suitable for continuous 24/7 process automation systems
Mechanical Dimensions & Weight
| Item | Specification |
|---|---|
| Connector Housing Dimensions | 42 × 42 × 92 mm |
| Cable Length | 5000 mm (5 m) |
| Weight | Approx. 2.0 kg |
Construction Features
- High-density 50-pin precision connector interface
- Industrial-grade shielding for EMI resistance
- Flexible yet durable outer jacket for control cabinet routing
- Designed for stable long-distance signal integrity
- Compatible with Yokogawa modular I/O architectures
