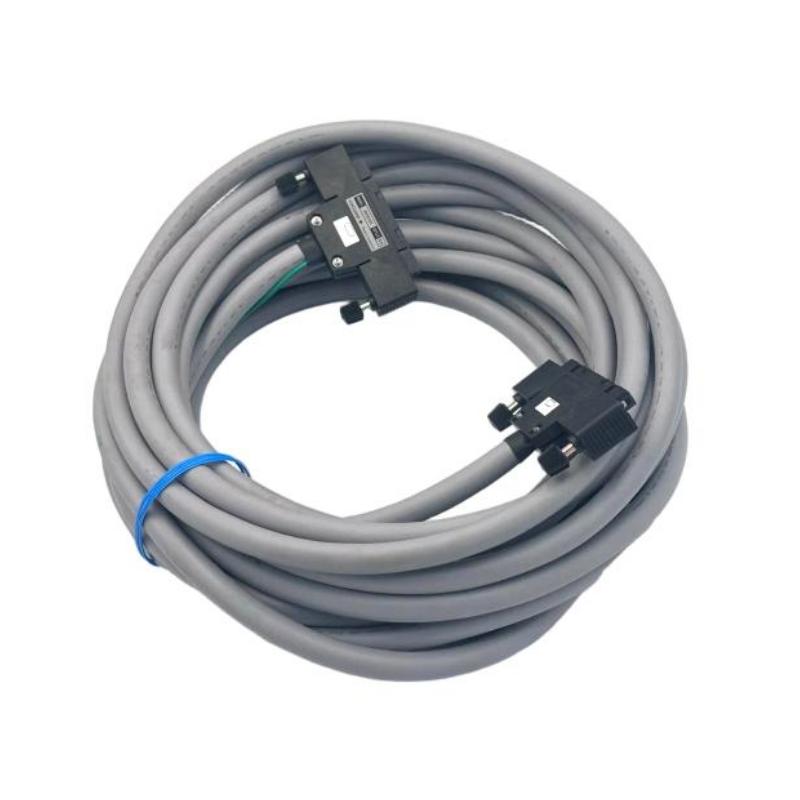

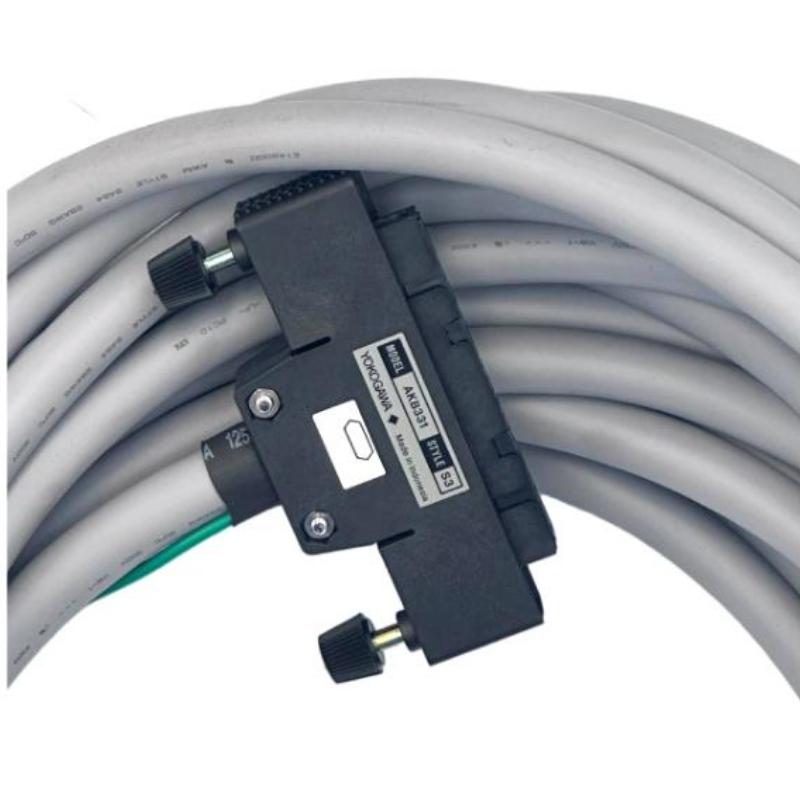

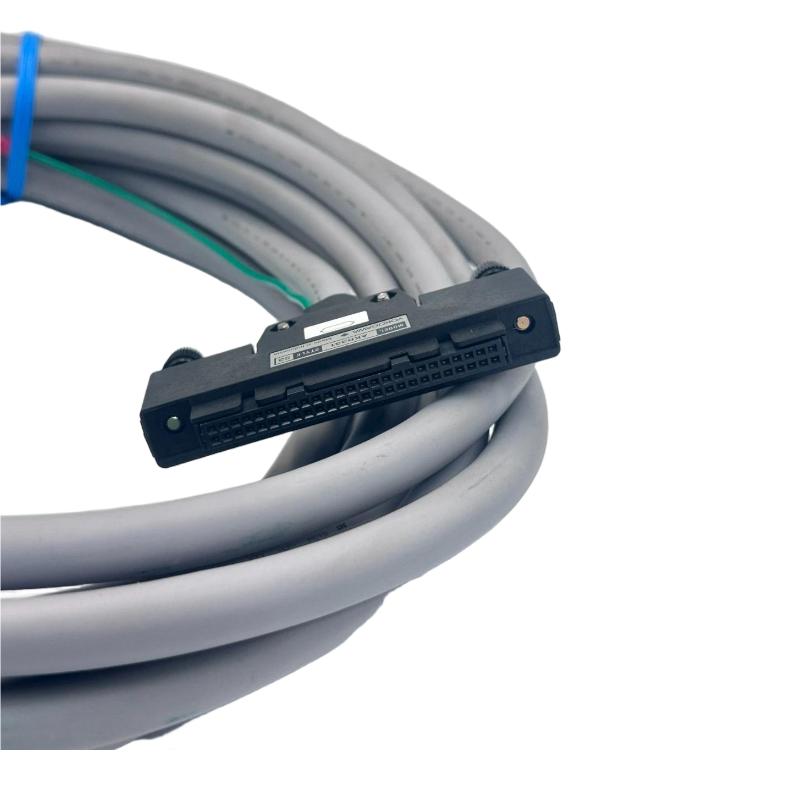

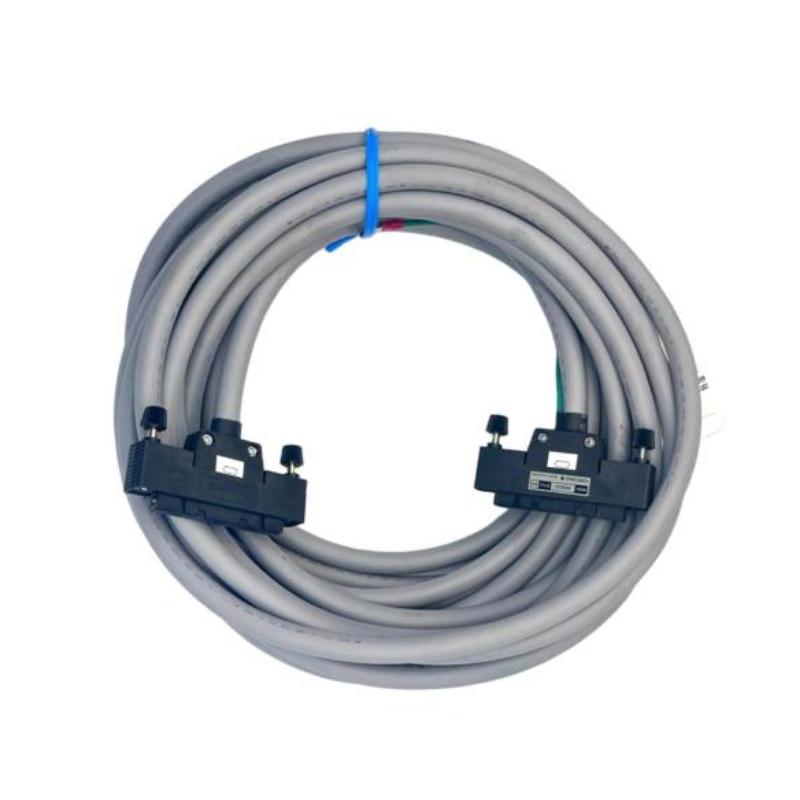

The Yokogawa AKB331-M005 is a 50-pin industrial signal cable used in Yokogawa CENTUM VP / CENTUM CS 3000 Distributed Control Systems (DCS).
It is designed to provide stable and noise-resistant signal transmission between I/O modules (such as ADV, AAI, SDV series) and terminal boards, ensuring reliable communication inside control cabinets. This cable is a key component in maintaining system integrity, wiring consistency, and long-term operational stability in industrial automation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | AKB331-M005 |
| Product Type | Signal Cable (50-pin interconnect) |
| Cable Length | 5 m |
| Connector Type | 50-pin industrial connector (both ends) |
| Compatible Modules | ADV / AAI / SDV / SAT series I/O modules |
| System Compatibility | CENTUM VP / CS 3000 / ProSafe-RS |
| Signal Type | Digital / analog I/O interconnection |
| Shielding | EMI-shielded industrial cable |
| Operating Temperature | -20°C to +70°C |
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 5000 × 25 × 15 mm |
| Weight | Approx. 1.5 – 2.5 kg |
| Cable Construction | Multi-core shielded industrial cable |
| Installation | Cabinet internal wiring (DCS rack connection) |
Note: Cable dimensions are based on standard straight routing (length × approximate diameter × jacket thickness). Actual routing space may vary depending on cabinet layout.
Recommended Related Models
- Yokogawa AKB331-M003 – 3 m cable version
- Yokogawa AKB331-M010 – 10 m cable version
- Yokogawa AKB331-M001 – compact short-distance variant
- Yokogawa AKB335 series – alternative interconnect cable family
- Yokogawa ADV551 – digital output module
