Brand:Allen Bradley PLC Item No.:22D-D2P3N104 Product Origin:USA Product Dimensions:180 x 100 x 136 mm Product Weight:2.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

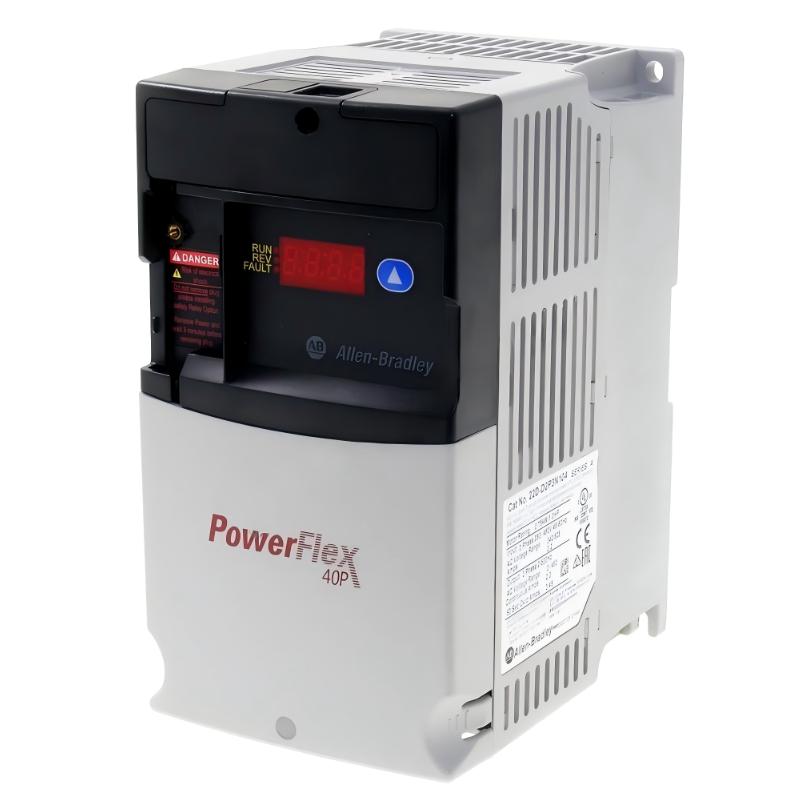

The Allen Bradley 22D-D2P3N104 PowerFlex 40P AC Drive delivers precise, reliable, and energy-efficient motor control in a compact form factor. Its durability, flexible network compatibility, and easy maintenance make it ideal for scalable industrial automation applications.
Technical Specifications
Specification
Details
Product Model
22D-D2P3N104
Module Type
PowerFlex 40P AC Drive
Dimensions (H × W × D)
180 × 100 × 136 mm
Weight
2.2 kg (4.85 lb)
Function
AC motor speed, torque, and direction control
System Compatibility
Allen Bradley PowerFlex 40P and networked control systems
Installation
Control cabinet / Panel mount
Input Voltage
200–240V AC, 1-phase
Output
3-phase motor control
Application
Industrial motor control, process automation
Environment
Industrial-grade operating conditions
Manufacturer
Allen Bradley
Compact AC Drive for Efficient Motor Control
The Allen Bradley 22D-D2P3N104 PowerFlex 40P AC Drive is engineered to provide reliable and precise control for three-phase AC motors in small- to medium-power industrial applications. Its compact footprint allows easy installation in control panels while delivering accurate speed, torque, and direction control for energy-efficient operation.
Ideal for manufacturing, processing, and automation applications where space is limited but performance and reliability are critical.
Applications include:
Conveyor and material handling systems
Pumps, fans, and HVAC equipment
Packaging and processing machinery
Small-scale chemical and petrochemical operations
Utility and power generation facilities
Distributed motor control systems
Modular automation control panels
Key Advantages
Compact Size: 180 × 100 × 136 mm, perfect for tight control panel spaces.
Reliable Motor Control: Provides precise speed, torque, and directional control.
Energy Efficiency: Optimizes motor performance and reduces operating costs.
Industrial-Grade Durability: Designed for continuous operation in harsh environments.
Flexible Network Integration: Compatible with optional EtherNet/IP and Profibus communication adapters.
User-Friendly Interface: Easy configuration and monitoring via keypad or software.
Quick Maintenance: Simplifies installation, troubleshooting, and replacement.
Technical FAQs
1. What is the primary function of this drive?
It regulates three-phase AC motors for speed, torque, and direction.
2. What is the power rating of this model?
The 22D-D2P3N104 is rated for 1 HP (0.75 kW) motors.
3. Can it integrate with industrial networks?
Yes, it supports optional EtherNet/IP or Profibus communication adapters.
4. Is it suitable for harsh industrial environments?
Yes, it is built for continuous operation under industrial conditions.
5. Does it support variable torque applications?
Yes, it supports both variable and constant torque motor applications.
6. What protection features are included?
Overload, overcurrent, and fault protection are integrated.
7. Can it be used in multi-drive coordinated systems?
Yes, it supports networked drives for coordinated control.
8. How is it configured?
Via keypad, PC software, or connected automation controller.
9. Which industries commonly use this drive?
Manufacturing, material handling, chemical, oil & gas, utilities, and process automation.
10. Can it handle frequent start/stop cycles?
Yes, it is designed for frequent motor cycling without degradation in performance.
