Introduction

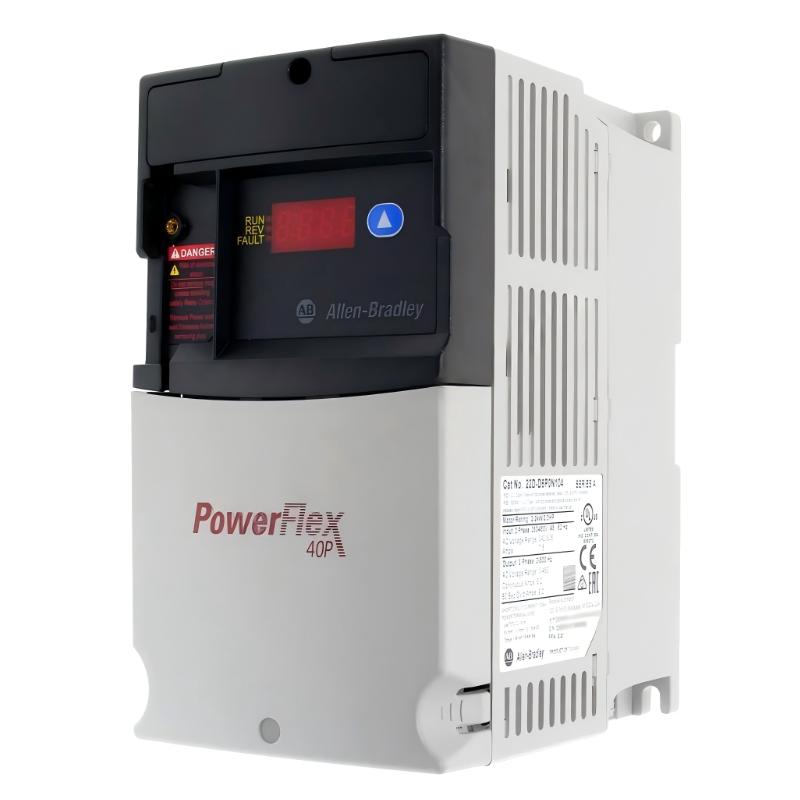

The Allen Bradley 22D-D6P0N104 PowerFlex 40P AC Drive is a compact yet powerful solution for precise motor speed and torque control. Designed with energy efficiency and industrial reliability in mind, it is ideal for OEMs, system integrators, and maintenance teams seeking dependable, easy-to-install drives. Its intuitive configuration and robust safety features make it a practical choice for modern industrial automation.

Technical Specifications

Feature	Specification
Model	22D-D6P0N104
Drive Type	AC Drive, PowerFlex 40P
Input Voltage	200–240V AC, 1 or 3-phase
Output Voltage	0–240V AC
Output Current	6 A
Control Type	V/Hz or Sensorless Vector
Dimensions (L × W × H)	180 × 100 × 136 mm
Weight	2.2 kg (4.85 lb)
Ambient Operating Temperature	0–50°C (32–122°F)
Communication	Ethernet/IP, DeviceNet, Modbus
Enclosure Rating	IP20

Applications

The 22D-D6P0N104 PowerFlex 40P AC Drive is engineered for versatile industrial motor control. Its applications span:

Small to medium-sized conveyor systems in manufacturing plants
HVAC fans and pumps in commercial facilities
Packaging machinery with variable speed requirements
Water and wastewater treatment pumps
Material handling equipment and automated assembly lines

Its adaptability ensures smooth operation in both new installations and retrofit projects.

Advantages

Compact Design: Minimal footprint allows installation in tight control panels
Energy Efficiency: Reduces power consumption while maintaining optimal motor performance
Reliable Operation: Robust design withstands harsh industrial environments
User-Friendly Interface: Integrated keypad for easy setup and real-time monitoring
Flexible Integration: Supports standard industrial communication protocols for seamless automation

Technical FAQs

What motor types are compatible with this drive?
It supports three-phase AC induction motors rated for variable speed operation.
Can the drive handle regenerative loads?
Yes, it can manage regenerative torque with built-in braking features.
What communication protocols are supported?
Includes Ethernet/IP, DeviceNet, and Modbus for flexible network integration.
Is it suitable for high ambient temperatures?
Rated for operation up to 50°C (122°F) without derating.
How does it handle overcurrent or short-circuit events?
Integrated protective functions automatically detect and limit current to prevent damage.
Can this drive operate in a multi-drive system?
Yes, it supports synchronization and coordinated control of multiple drives.
What are the programming options?
Adjustable via onboard keypad, Connected Components Workbench software, or network-based programming.
Does it provide diagnostic feedback?
Yes, it offers real-time fault codes, status indicators, and logged events for troubleshooting.
Is it compatible with standard AC line voltages?
Designed for 200–240V AC input, single-phase or three-phase depending on model.
How does it improve motor longevity?
Smooth acceleration, deceleration, and overload protection reduce mechanical and electrical stress.
