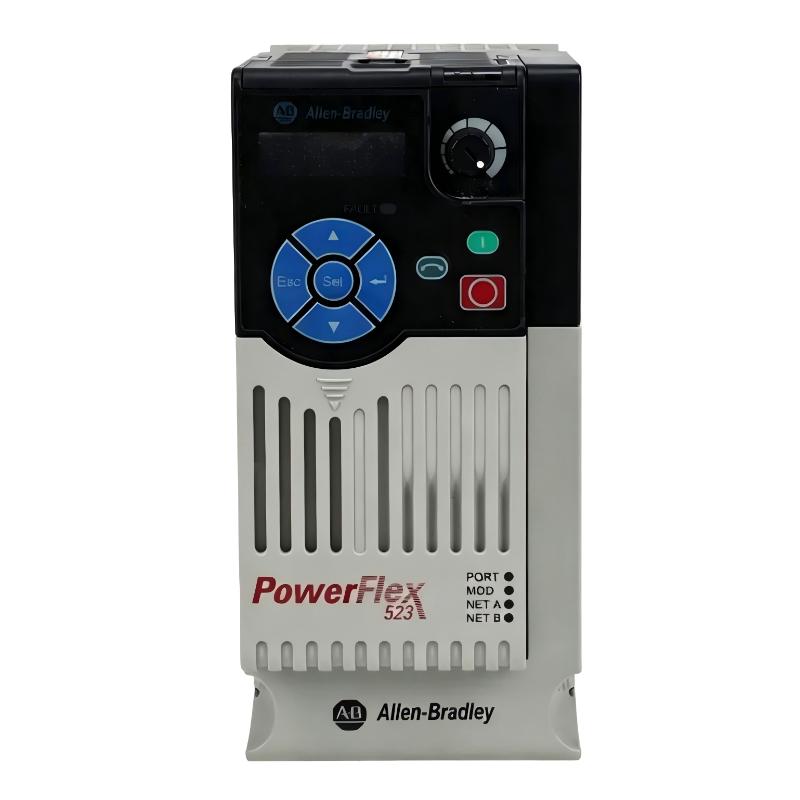

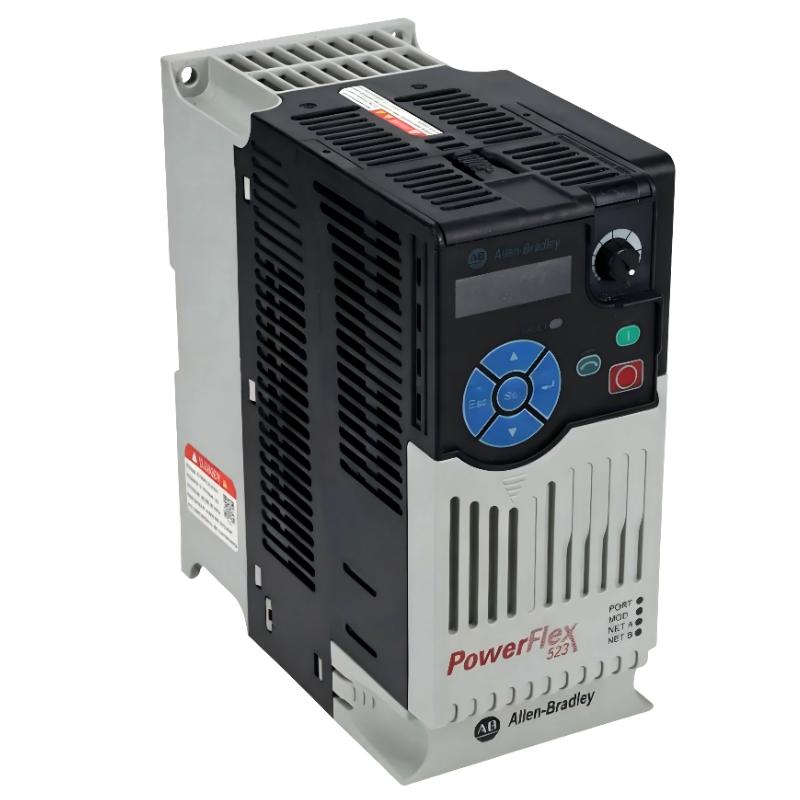

The Allen Bradley 25A-A8P0N114 PowerFlex 523 AC Drive is a compact, versatile variable frequency drive designed for small- to medium-duty industrial automation systems. Its blend of reliability, efficiency, and user-friendly operation makes it ideal for OEMs, integrators, and maintenance teams looking to upgrade motor control capabilities in tight spaces.

The PowerFlex 523 series delivers advanced control options, robust protection, and flexible integration, ensuring precise speed regulation and improved system performance in demanding industrial environments.

Technical Specifications

Feature	Specification
Model	25A-A8P0N114
Drive Series	PowerFlex 523 AC Drive
Input Voltage	200–240V AC, 1- or 3-phase
Output Voltage	0–240V AC, 3-phase
Output Current	8 A
Power Rating	1.5 kW (2 HP)
Control Method	V/Hz, Sensorless Vector
Dimensions (L × W × H)	180 × 87 × 172 mm
Weight	1.6 kg (3.53 lb)
Communication	Ethernet/IP, Modbus
Enclosure Rating	IP20
Ambient Operating Temperature	0–50°C (32–122°F)

Applications

The 25A-A8P0N114 PowerFlex 523 AC Drive is engineered for precise and reliable motor control in compact industrial systems. It excels in applications where space is limited but performance cannot be compromised:

Small conveyors and packaging machines in manufacturing facilities
Pumps and fans in HVAC and process systems
Light material handling automation
OEM machinery requiring flexible speed control
Retrofit projects upgrading older drive systems to modern VFD technology

Its compact size makes it ideal for tight control panels, while delivering consistent and efficient motor performance.

Advantages

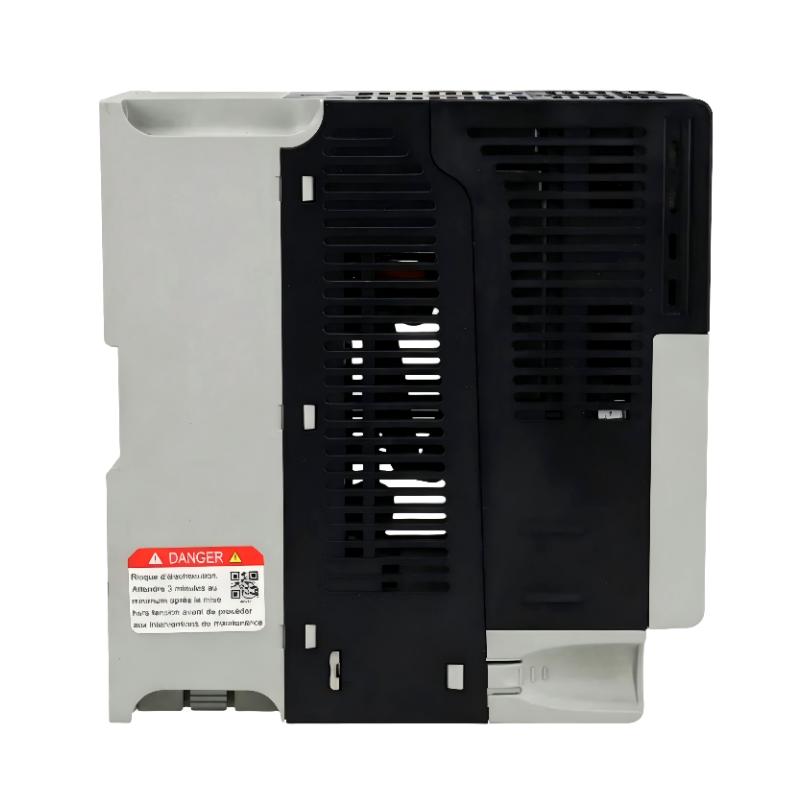

Compact Footprint: Small 180 × 87 × 172 mm frame fits in tight enclosures
High Reliability: Industrial-grade components designed for long-term operation
Flexible Control Options: Supports V/Hz and sensorless vector control for precise motor operation
Easy Integration: Compatible with PLCs and standard industrial communication protocols
Energy Efficient: Optimized PWM control reduces power consumption and operating costs
User-Friendly Interface: Integrated keypad simplifies setup, monitoring, and diagnostics

Technical FAQs

What motor types are compatible with this drive?
Three-phase AC induction motors with ratings suitable for the drive’s output.
Does it support both single-phase and three-phase input?
Yes, configurable for single-phase 200–240V AC input or three-phase systems.
What control methods are available?
V/Hz control and sensorless vector control.
Can it integrate with PLCs?
Yes, supports Ethernet/IP and Modbus communication protocols.
Does it provide diagnostic feedback?
Yes, real-time fault codes and status indicators are available via the keypad.
Is it suitable for high ambient temperatures?
Rated for operation up to 50°C (122°F).
How does it protect the motor?
Includes overload, overcurrent, and overvoltage protection functions.
Can it handle regenerative loads?
Yes, built-in braking and torque control allow handling regenerative torque.
Does it allow remote control?
Yes, via keypad or external terminal connections.
Is the installation flexible?

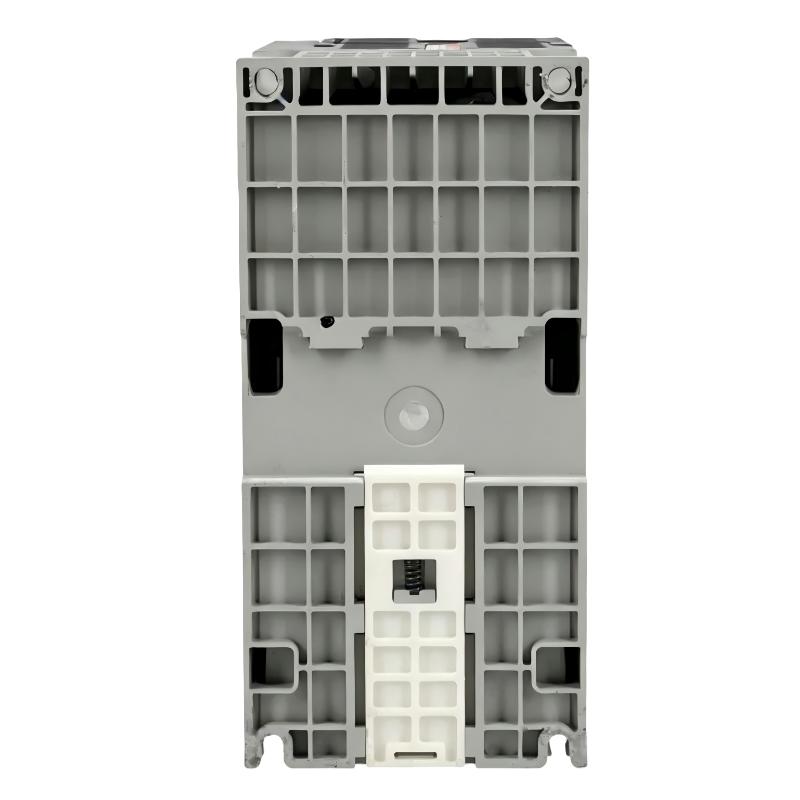

Panel and DIN-rail mounting options supported; compact design allows multiple drives side-by-side.
