Introduction

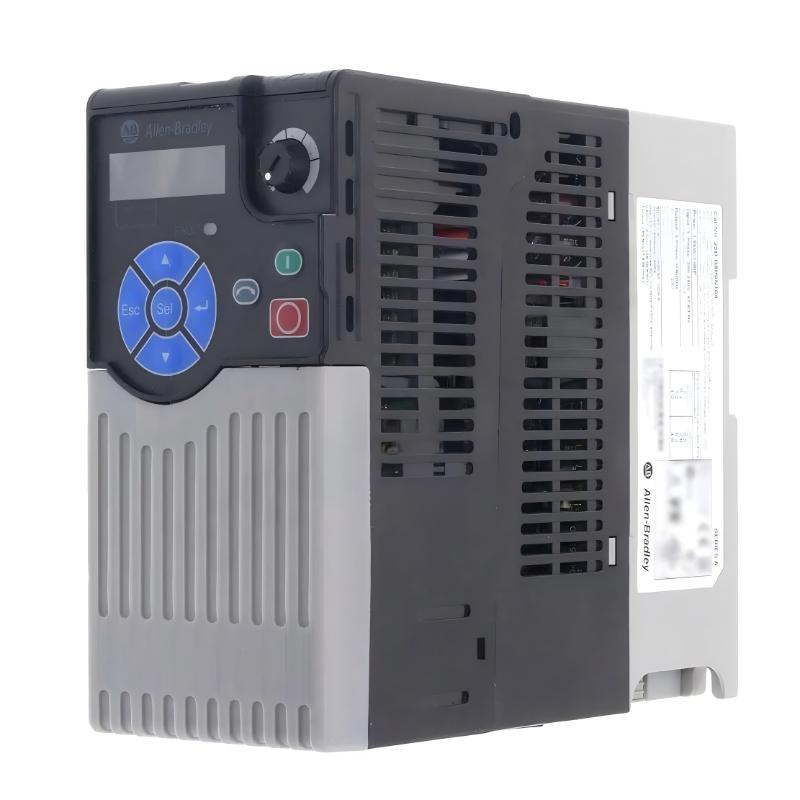

The Allen Bradley 25B-B8P0N104 PowerFlex 525 AC Drive delivers reliable and flexible motor control for industrial applications. Combining energy efficiency, advanced motor control modes, and compact design, it ensures smooth operation in tight spaces while minimizing downtime and maintenance.

Ideal for OEMs, system integrators, and industrial facilities looking for dependable, efficient motor control.

Technical Specifications

Feature	Specification
Model	25B-B8P0N104
Drive Series	PowerFlex 525 AC Drive
Input Voltage	200–240V AC, 3-phase
Output Voltage	0–240V AC, 3-phase
Output Current	8 A
Power Rating	1.5 kW (2 HP)
Control Method	V/Hz, Sensorless Vector
Dimensions (L × W × H)	172 × 72 × 152 mm
Weight	1.1 kg (2.43 lb)
Enclosure Rating	IP20
Communication	Modbus

Applications

The 25B-B8P0N104 PowerFlex 525 AC Drive is designed for efficient, reliable motor control in modern industrial automation systems. Typical applications include:

Conveyor and packaging systems in manufacturing
Pumps and fans in process automation and HVAC
Assembly line machinery requiring precise speed and torque control
Retrofit projects upgrading legacy drives
OEM equipment requiring compact and flexible drive solutions

Its compact design allows easy integration into control panels while maintaining stable and responsive motor performance.

Advantages

Compact Form Factor: 172 × 72 × 152 mm allows installation in tight panels
Efficient Control: V/Hz and sensorless vector modes ensure smooth motor operation
Energy Saving: Optimized algorithms reduce energy consumption and operating costs
Robust Protection: Overcurrent, overload, and thermal protection safeguard motors and drive
Flexible Communication: Supports Modbus and other industrial networks for integration
User-Friendly Interface: Intuitive keypad simplifies configuration and real-time monitoring

Technical FAQs

Which motors are compatible?
Compatible with three-phase AC induction motors within the drive’s rated current.
What input voltage does it require?
200–240V AC, 3-phase.
Does it support advanced control modes?
Yes, including V/Hz and sensorless vector control.
Can it be integrated with PLC systems?
Yes, via industrial network modules.
Is it suitable for retrofit applications?
Yes, designed to replace older AC drives in existing panels.
Does it provide protection features?
Yes, overcurrent, overload, and undervoltage protections are included.
Can it operate continuously?
Yes, built for industrial continuous duty operation.
Does it support braking capability?
Yes, compatible with external braking resistors.
Is monitoring available?
Yes, the keypad provides status and fault indications in real time.
Does it require routine maintenance?
No, designed for long-term reliable operation.
