Introduction

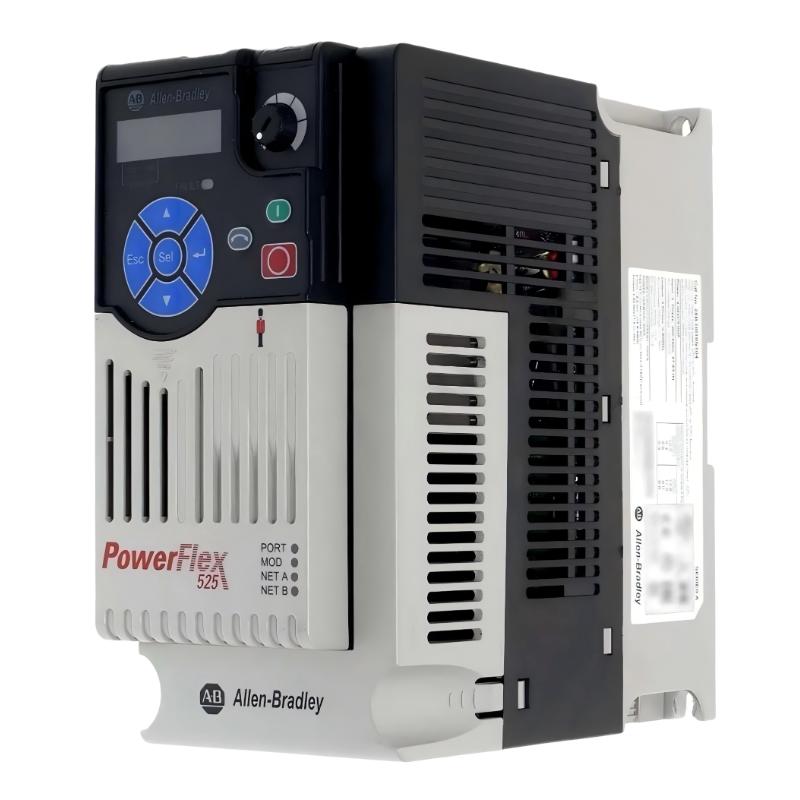

The Allen Bradley 25B-D010N104 PowerFlex 525 AC Drive provides dependable and efficient motor control for industrial applications. With its compact size, advanced control features, and energy-saving algorithms, it ensures smooth operation, reduced downtime, and enhanced system efficiency.

This drive is ideal for OEMs, automation integrators, and industrial facilities seeking reliable, modern motor control solutions.

Technical Specifications

Feature	Specification
Model	25B-D010N104
Drive Series	PowerFlex 525 AC Drive
Input Voltage	200–240V AC, 3-phase
Output Voltage	0–240V AC, 3-phase
Output Current	10 A
Power Rating	1.5 kW (2 HP)
Control Method	V/Hz, Sensorless Vector
Dimensions (L × W × H)	180 × 87 × 172 mm
Weight	1.6 kg (3.53 lb)
Enclosure Rating	IP20
Communication	Modbus

Applications

The 25B-D010N104 PowerFlex 525 AC Drive is engineered for precise motor control in a variety of industrial settings. Typical applications include:

Conveyor and packaging systems in manufacturing plants
Pumps and fans in process automation and HVAC
Assembly line machinery requiring smooth speed and torque regulation
Retrofitting legacy drives with modern, compact solutions
OEM equipment requiring reliable, flexible AC drive integration

Its compact design ensures easy installation in control cabinets while delivering efficient and responsive motor performance.

Advantages

Compact and Versatile: 180 × 87 × 172 mm footprint fits efficiently in control panels
Energy Efficient: Optimized control algorithms reduce energy consumption
Advanced Motor Control: Supports V/Hz and sensorless vector control for smooth operation
Reliable Protection: Includes overload, overcurrent, and thermal safeguards
Flexible Communication Options: Can integrate with industrial networks for automation
User-Friendly Interface: Intuitive keypad simplifies programming and monitoring

Technical FAQs

Which motors are compatible?
Compatible with three-phase AC induction motors within the drive’s rated current.
What input voltage is required?
200–240V AC, 3-phase.
Does it support vector control?
Yes, it supports sensorless vector mode for precise motor performance.
Can it integrate with PLC systems?
Yes, via supported industrial network modules.
Is it suitable for retrofit applications?
Yes, designed for replacing older AC drives.
Does it offer protection features?
Yes, includes overload, overcurrent, and thermal protection.
Can it operate continuously?
Yes, designed for industrial 24/7 operation.
Does it support braking capability?
Yes, external braking resistor support is available.
Is monitoring available?
Yes, the keypad provides real-time status and fault indication.
Does it require routine maintenance?
No, it is engineered for long-term reliable operation.
