Introduction

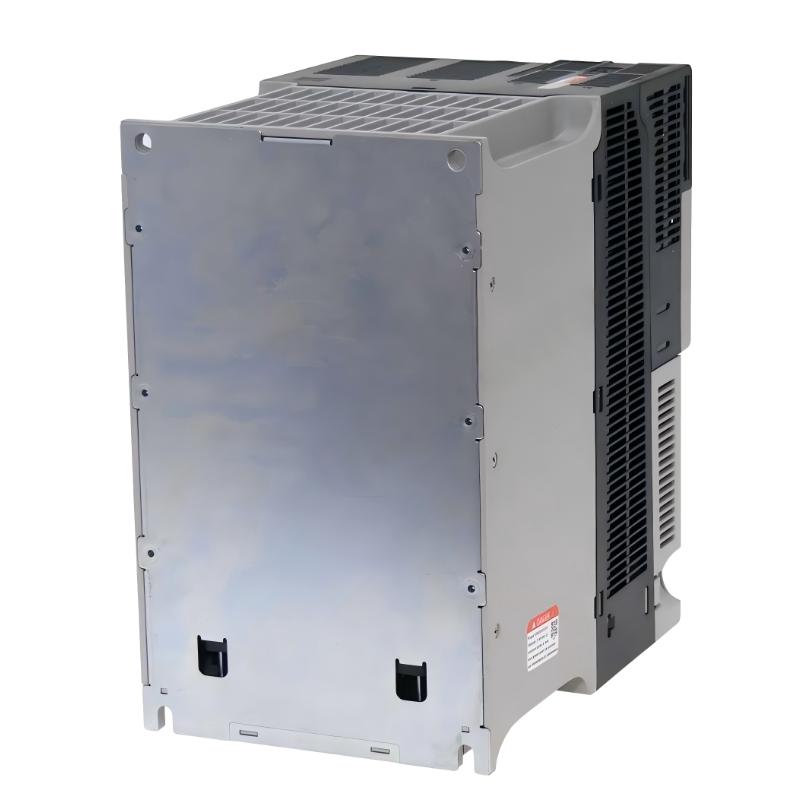

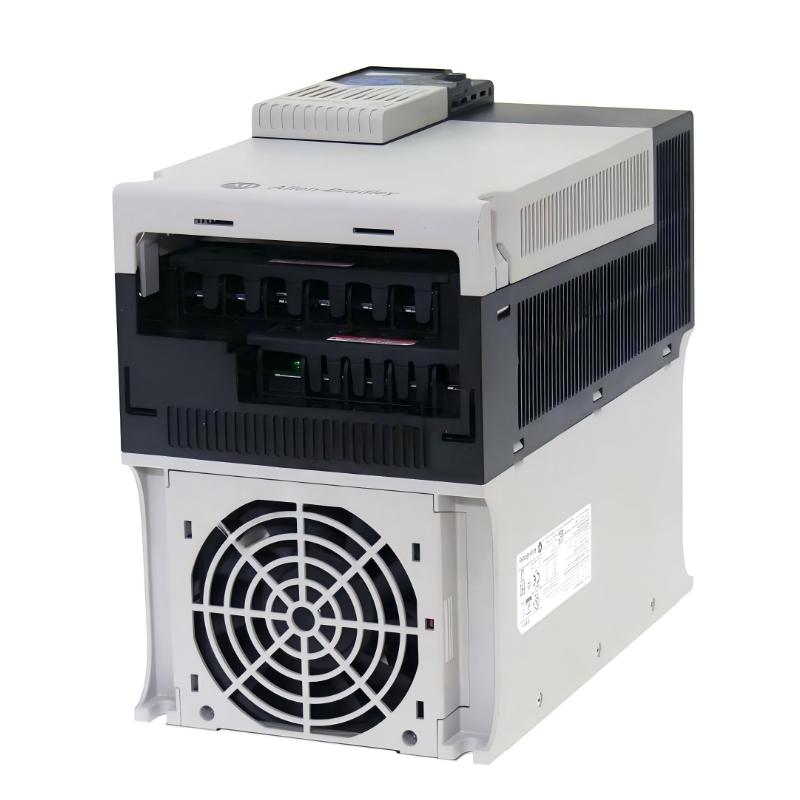

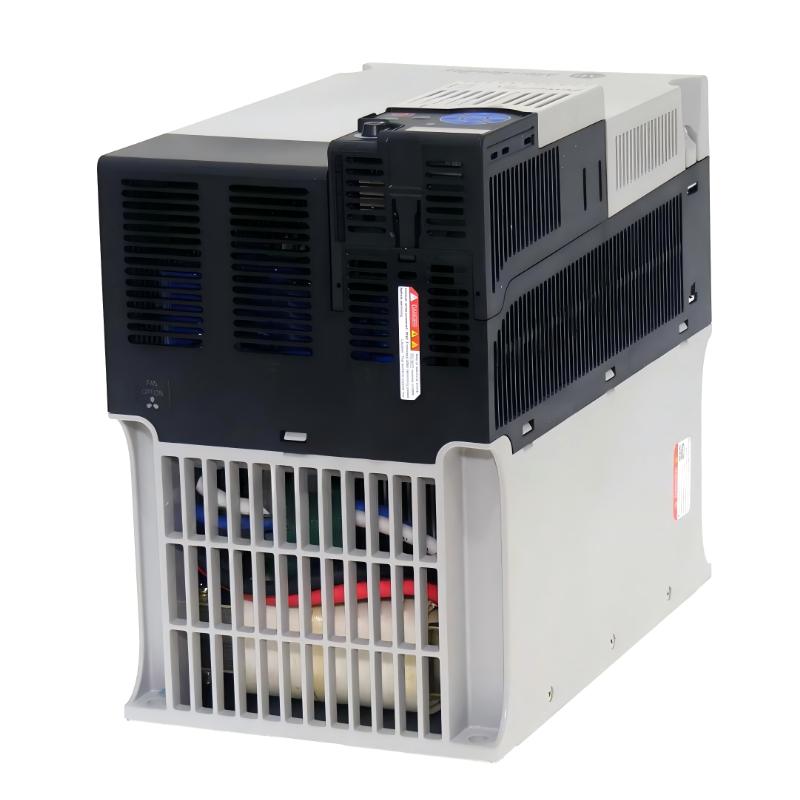

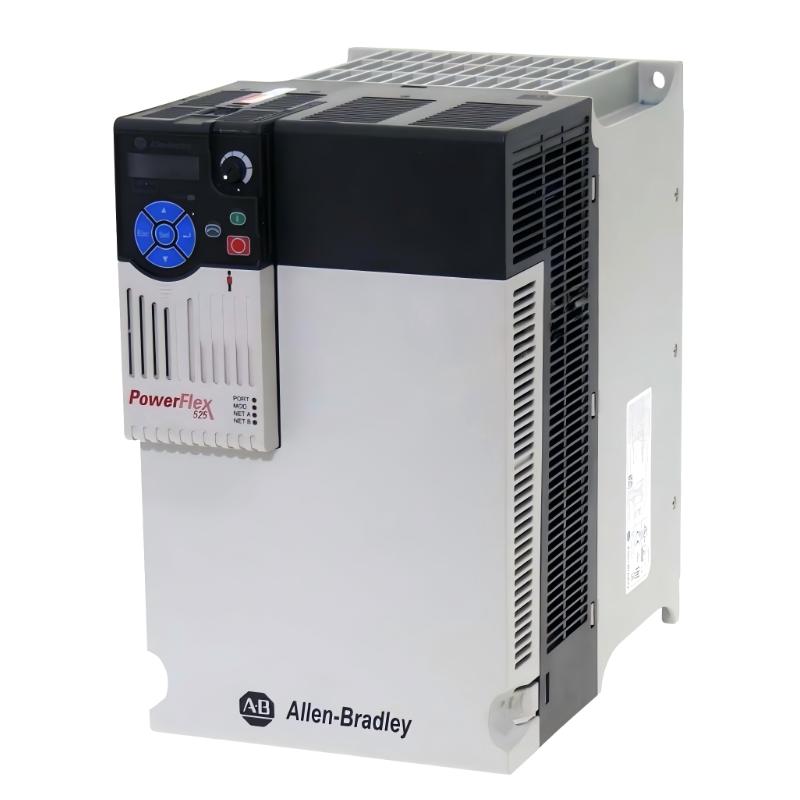

The Allen Bradley 25B-D043N114 PowerFlex 525 AC Drive delivers reliable, high-capacity motor control for demanding industrial applications. Combining advanced control modes, durable construction, and energy-efficient operation, this drive is ideal for OEMs, system integrators, and production facilities seeking dependable motor performance and operational flexibility.

Technical Specifications

Feature	Specification
Model	25B-D043N114
Drive Series	PowerFlex 525 AC Drive
Input Voltage	380–480V AC, 3-phase
Output Voltage	0–480V AC, 3-phase
Output Current	43 A
Power Rating	30 kW (40 HP)
Control Method	V/Hz, Sensorless Vector
Dimensions (L × W × H)	300 × 185 × 279 mm
Weight	12.9 kg (28.44 lb)
Enclosure Rating	IP20
Communication	Modbus, optional industrial networks
Ambient Operating Temperature	0–50°C (32–122°F)

Applications

The 25B-D043N114 PowerFlex 525 AC Drive is designed for high-power industrial motor control, delivering precise performance and reliability in challenging environments. Common applications include:

Heavy-duty conveyor systems and material handling equipment
Industrial pumps, fans, and compressors
Large assembly line machinery requiring accurate speed and torque regulation
Retrofitting legacy drives for modern automation systems
OEM equipment requiring high-performance AC drive integration

Its robust design ensures dependable operation in demanding industrial conditions while optimizing energy efficiency.

Advantages

High-Capacity Performance: Supports large motors with continuous operation demands
Advanced Motor Control: V/Hz and sensorless vector modes for precise speed and torque management
Durable Industrial Design: Built to withstand vibration, temperature fluctuations, and extended operation
Energy Efficiency: Optimized control algorithms reduce energy consumption and operational costs
Flexible Communication: Compatible with Modbus and industrial networks for seamless system integration
User-Friendly Interface: Intuitive keypad for quick setup, monitoring, and troubleshooting

Technical FAQs

Which motors are compatible?
Three-phase AC induction motors within the rated current and power range.
What is the required input voltage?
380–480V AC, 3-phase.
Does it support vector control?
Yes, sensorless vector control provides precise torque and speed regulation.
Can it integrate with PLCs?
Yes, supports industrial communication protocols for automation integration.
Is it suitable for continuous heavy-duty operation?
Yes, designed for reliable 24/7 industrial use.
Does it offer braking support?
Yes, compatible with external braking resistors for controlled deceleration.
What protection features are included?
Overload, overcurrent, undervoltage, and thermal protection.
Can it handle variable torque applications?
Yes, ideal for pumps, fans, and variable torque systems.
Is monitoring and diagnostics available?
Yes, real-time status, fault reporting, and troubleshooting are provided via the keypad.
Does it require routine maintenance?
No, engineered for long-term, low-maintenance operation.
