Introduction

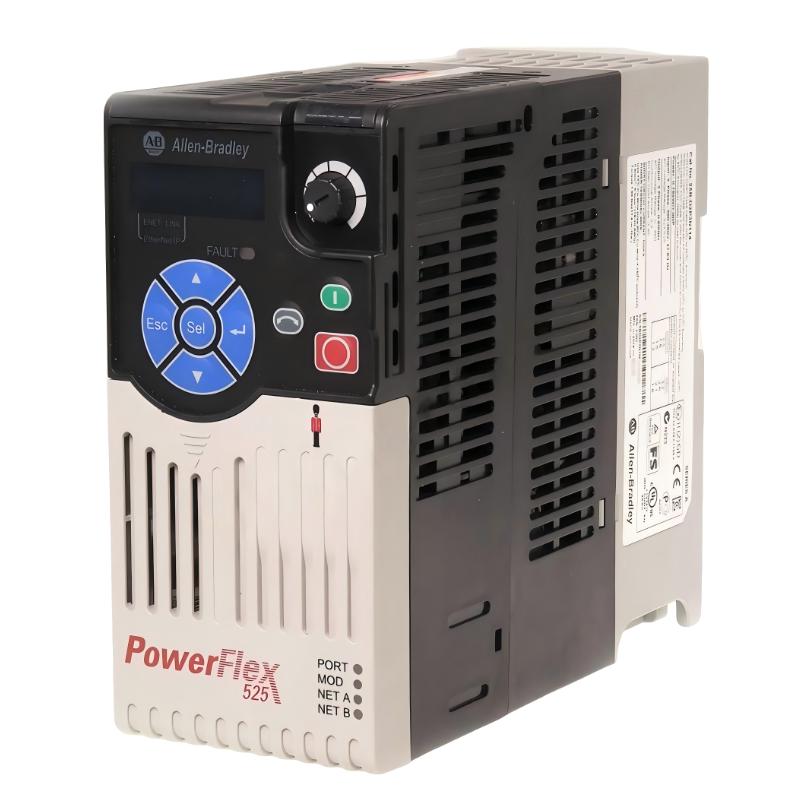

The Allen Bradley 25B-D2P3N114 PowerFlex 525 AC Drive provides dependable, compact motor control suitable for light to medium industrial applications. Its advanced features, energy efficiency, and flexible integration options make it a reliable choice for OEMs, system integrators, and automation facilities seeking robust AC drive solutions.

Technical Specifications

Feature	Specification
Model	25B-D2P3N114
Drive Series	PowerFlex 525 AC Drive
Input Voltage	380–480V AC, 3-phase
Output Voltage	0–480V AC, 3-phase
Output Current	2.3 A
Power Rating	1.5 kW (2 HP)
Control Method	V/Hz, Sensorless Vector
Integrated PID	Yes
Dimensions (L × W × H)	172 × 72 × 152 mm
Weight	1.1 kg (2.43 lb)
Enclosure Rating	IP20
Communication	Modbus
Operating Environment	Industrial Indoor Applications

Applications

The 25B-D2P3N114 PowerFlex 525 AC Drive delivers compact, reliable motor control for a variety of industrial environments. Its versatility and performance make it ideal for:

Automated conveyor and material handling systems
Industrial pumps, fans, and ventilation equipment
Packaging machinery and assembly lines
Retrofit projects to replace older AC drives
OEM equipment requiring compact, flexible drive solutions
Light to medium industrial motor applications

This drive provides smooth, precise speed and torque regulation while minimizing space usage in control panels.

Advantages

Compact Footprint: 172 × 72 × 152 mm allows installation in tight panels
Advanced Motor Control: Supports V/Hz and sensorless vector modes
Energy Efficient: Reduces operational energy consumption
Durable Design: Built for continuous industrial operation
Flexible Communication: Compatible with Modbus and industrial network modules
Intuitive Interface: User-friendly keypad for programming and monitoring
Enhanced Protection: Overload, overcurrent, and thermal protection included

Technical FAQs

Which motors are compatible?
Supports three-phase AC induction motors within the drive’s rated current.
What input voltage does it require?
380–480V AC, 3-phase.
Does it provide vector control?
Yes, sensorless vector mode is included for precise speed and torque regulation.
Can it be integrated with PLC systems?
Yes, compatible with industrial networks for automation integration.
Is it suitable for continuous operation?
Yes, designed for 24/7 industrial use.
Does it support braking functionality?
Yes, supports external braking resistors for controlled deceleration.
What protection features are included?
Overcurrent, overload, and thermal protection are built-in.
Can it handle variable torque applications?
Yes, ideal for pumps, fans, and other variable torque loads.
Is real-time monitoring available?
Yes, status and fault monitoring are accessible through the keypad.
Does it require routine maintenance?
No, designed for long-term, reliable operation.
