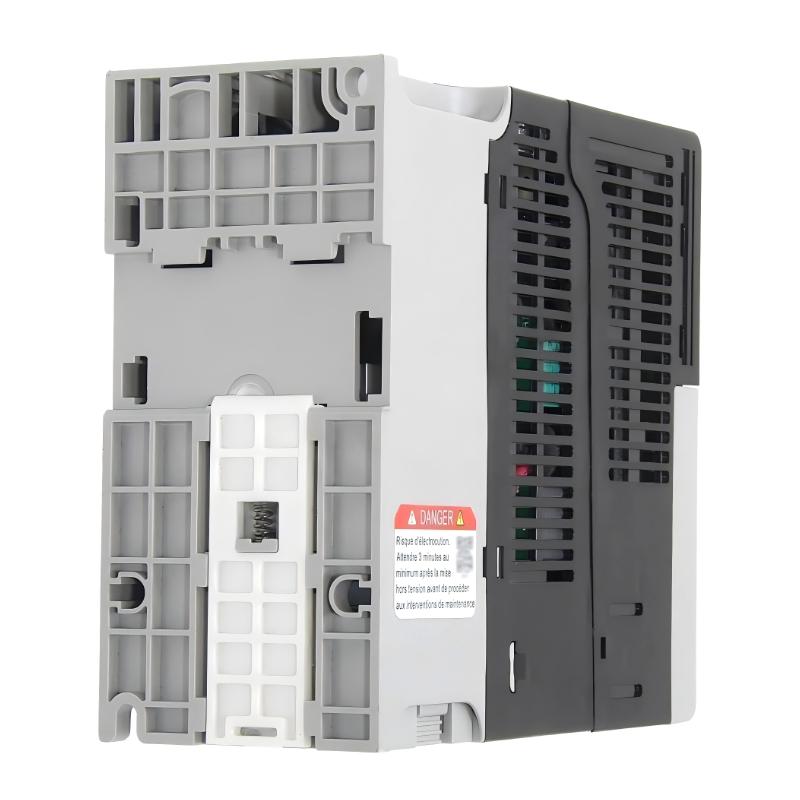

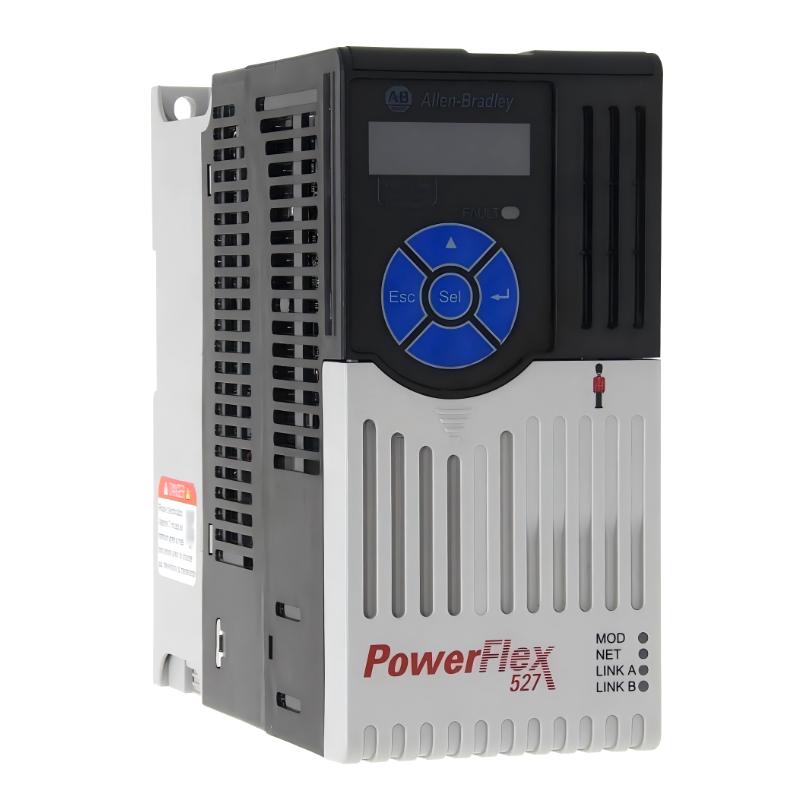

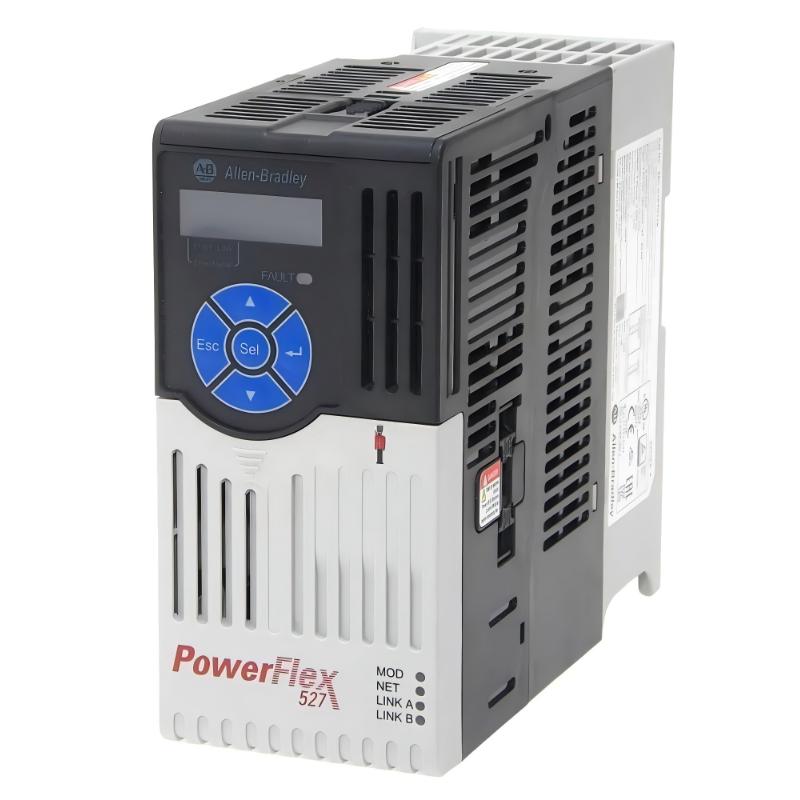

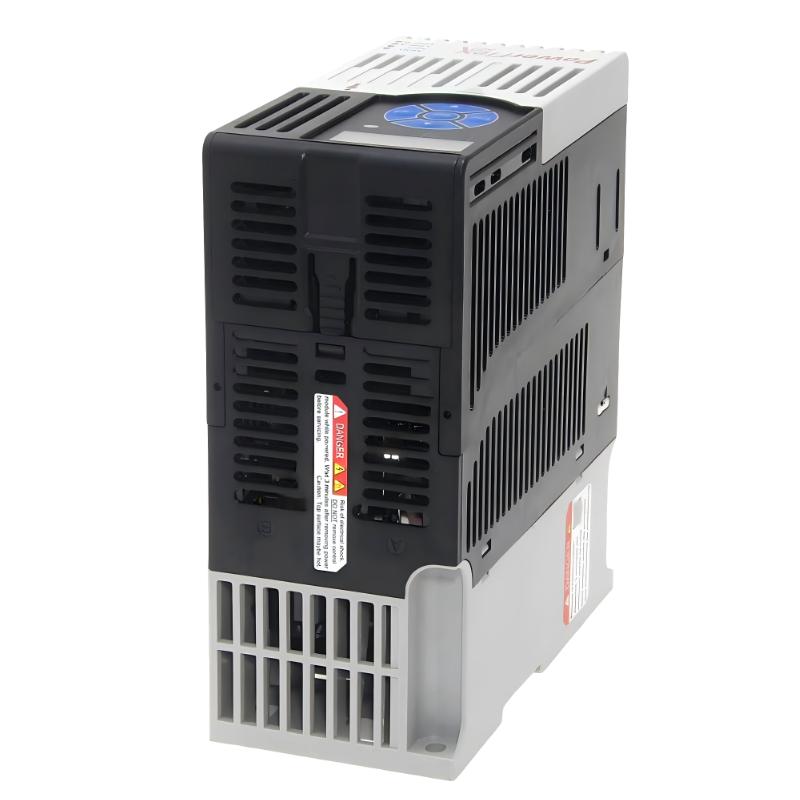

Allen Bradley 25C-D1P4N114 PowerFlex 527 AC Drive

Applications

The 25C-D1P4N114 PowerFlex 527 AC Drive is designed for tightly integrated industrial automation systems where drive performance is coordinated directly through a controller-based architecture. It is commonly used in:

• Synchronized conveyor systems in production lines
• Automated packaging and assembly machines
• Material handling systems requiring coordinated motion control
• OEM machinery integrated with Logix-based PLC platforms
• Factory automation systems requiring EtherNet/IP connectivity
• Multi-drive coordinated industrial applications

This drive is best suited for system-level automation rather than standalone motor control, enabling precise synchronization across multiple devices.

Advantages

• System-Centric Design — Built to work seamlessly with Logix controllers for coordinated control
• Integrated EtherNet/IP Communication — Supports fast, deterministic industrial networking
• Compact Industrial Footprint — 172 × 72 × 152 mm for efficient panel integration
• High Control Precision — Stable speed and torque regulation for automation tasks
• Energy Efficient Operation — Optimized motor control reduces power consumption
• Built-In Safety Functions — Supports industrial safety architectures
• Streamlined Commissioning — Configuration integrated within Studio 5000 environments

Technical FAQs

1. Is this drive intended for standalone use?

No, it is primarily designed for integration with Logix-based automation systems.

2. What communication protocol does it use?

It uses EtherNet/IP for high-speed industrial communication.

3. Can it operate without a controller?

It can run in limited configurations, but full functionality requires a controller system.

4. Is it suitable for conveyor synchronization?

Yes, it is widely used in synchronized conveyor and multi-axis systems.

5. Does it support Sensorless Vector Control?

Yes, depending on configuration, advanced motor control modes are available.

6. Can it be used in pump or fan applications?

Yes, but it is more commonly used in coordinated automation systems.

7. Does it support safety functions?

Yes, integrated safety capabilities are supported depending on system setup.

8. Is diagnostics available?

Yes, diagnostics are handled through the connected controller environment.

9. Can it be used for retrofit projects?

Yes, but integration planning is required due to controller dependency.

10. What type of motors is it compatible with?

It is designed for compatible three-phase AC induction motors within rated specifications.
