Brand:Allen Bradley PLC Item No.:1771-ASB Product Origin:USA Product Dimensions:165 x 51 x 89 mm Product Weight:0.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

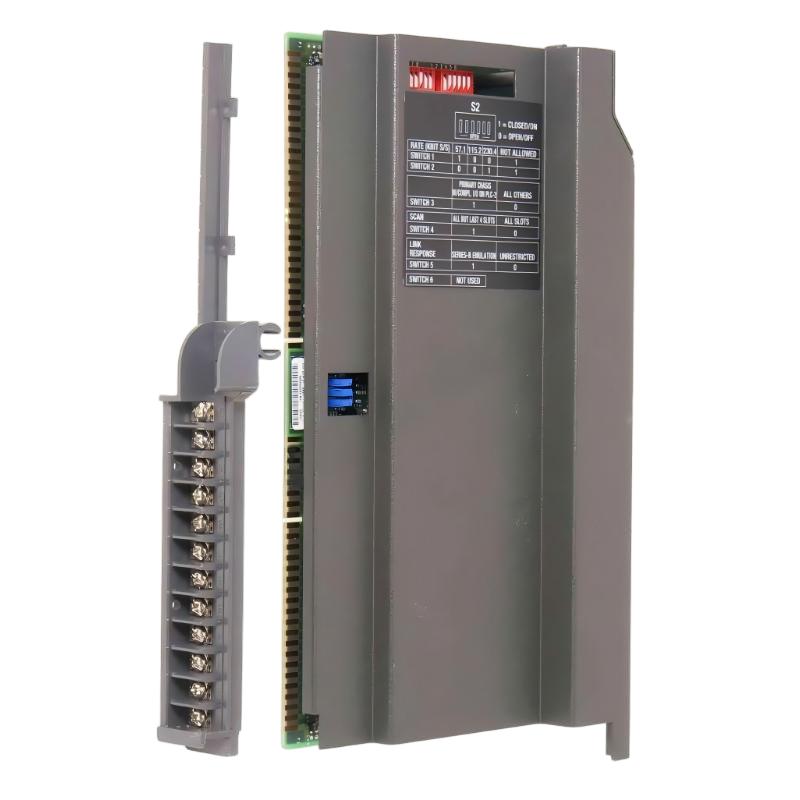

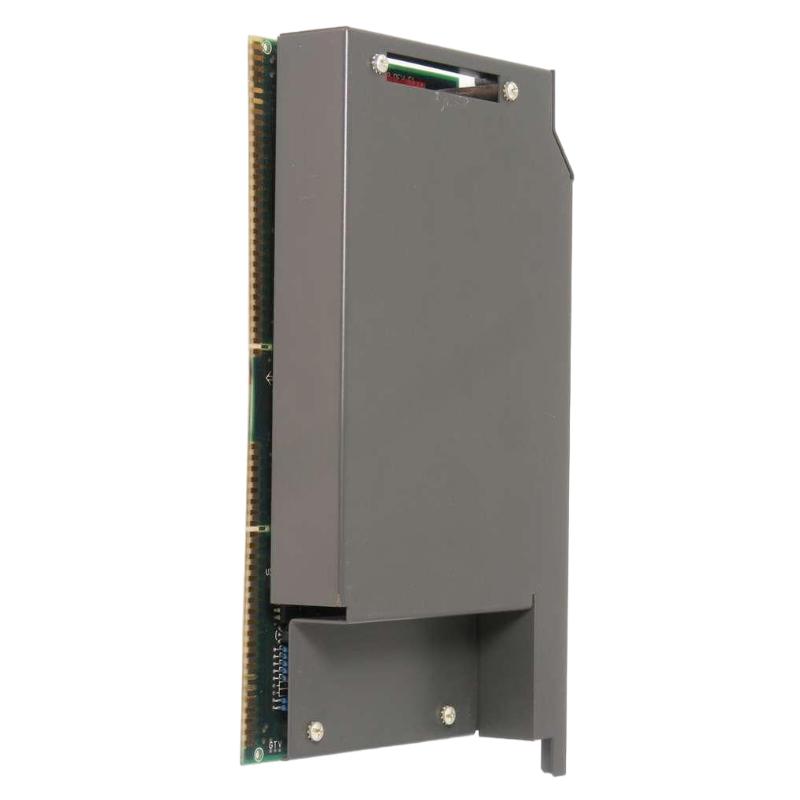

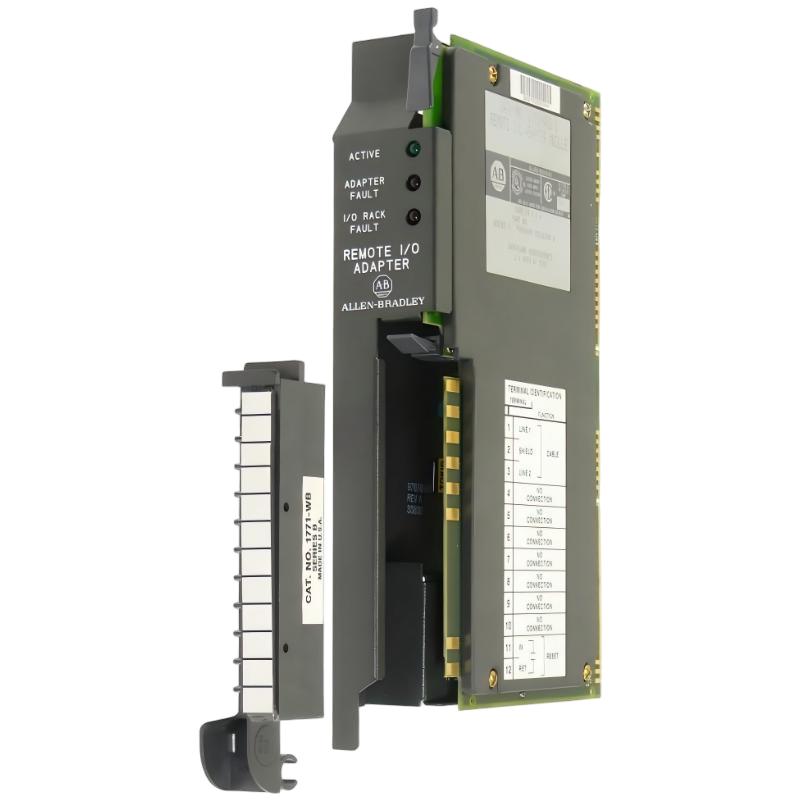

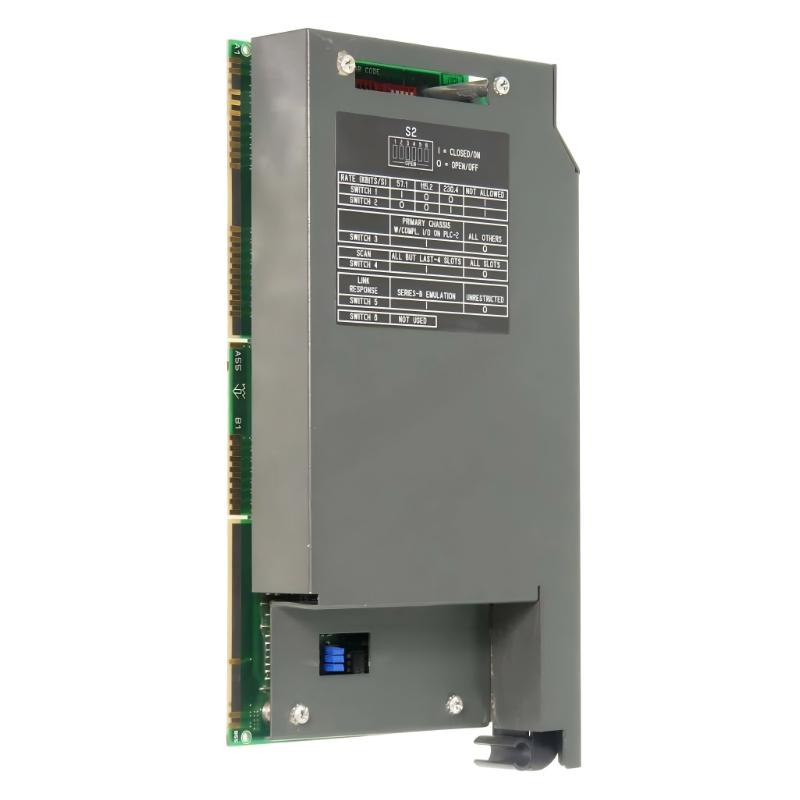

The Allen Bradley 1771-ASB Remote I/O Adapter Module is designed to enable communication between remote 1771 I/O racks and PLC controllers. It plays a key role in distributed automation systems by extending control capabilities across large industrial environments.
By allowing I/O modules to be installed away from the main controller, it reduces wiring complexity and improves system flexibility. The module is commonly used in manufacturing plants, process industries, and large-scale automation systems where reliable remote communication is required.
Technical Specifications
Item
Value
Product Model
1771-ASB
Type
Remote I/O Adapter Module
Platform
1771 Series
Communication
Remote I/O
Application
Distributed Control Systems
Installation
1771 Rack Mount
Dimensions
165 × 51 × 89 mm
Weight
0.7 kg
Recommended Related Models
Model
Product Name
1771-IBD
DC Digital Input Module
1771-OBD
DC Digital Output Module
1771-IFE
Analog Input Module
1771-OFE
Analog Output Module
Popular Related Models
Model
Product Name
1771-P4S
Power Supply Module
1771-CP1
Communication Processor Module
1771-IR
RTD Input Module
1771-IXE
High-Density Input Module
Applications
• Distributed Control Systems
Used to connect remote I/O racks into PLC-based control architectures for extended system coverage.
• Manufacturing Automation Lines
Supports reliable data exchange between central controllers and distributed field I/O modules.
• Process Industry Systems
Enables remote monitoring and control of industrial processes in chemical, power, and utility plants.
• Large-Scale Industrial Facilities
Provides communication for widely distributed equipment across expansive production environments.
Key Advantages
• Remote I/O Integration
Enables seamless communication between remote I/O racks and PLC systems.
• System Scalability
Supports expansion of control architecture across large industrial installations.
• Stable Industrial Communication
Delivers reliable data transfer for critical automation processes.
• Reduced Wiring Complexity
Minimizes long-distance wiring by enabling distributed control architecture.
Technical FAQs
Q1 What is the main function of the 1771-ASB module?
A: It acts as a remote I/O adapter connecting distributed I/O racks to a PLC system.
Q2 Which systems is it used with?
A: It is used with Allen Bradley 1771 series I/O systems.
Q3 What type of communication does it support?
A: It supports remote I/O communication between controller and I/O racks.
Q4 Can it be used in distributed systems?
A: Yes, it is designed specifically for distributed I/O architectures.
Q5 How does it improve system design?
A: It reduces wiring complexity by enabling remote I/O placement.
Q6 Is it suitable for industrial environments?
A: Yes, it is designed for heavy-duty industrial applications.
Q7 Can multiple remote racks be connected?
A: Yes, multiple I/O racks can be integrated depending on system design.
Q8 Is it compatible with older PLC systems?
A: Yes, it is commonly used in legacy Allen Bradley PLC architectures.
Q9 Does it support system expansion?
A: Yes, it allows scalable expansion of I/O systems.
Q10 What industries use this module?
A: It is widely used in manufacturing, process control, and utility industries.
