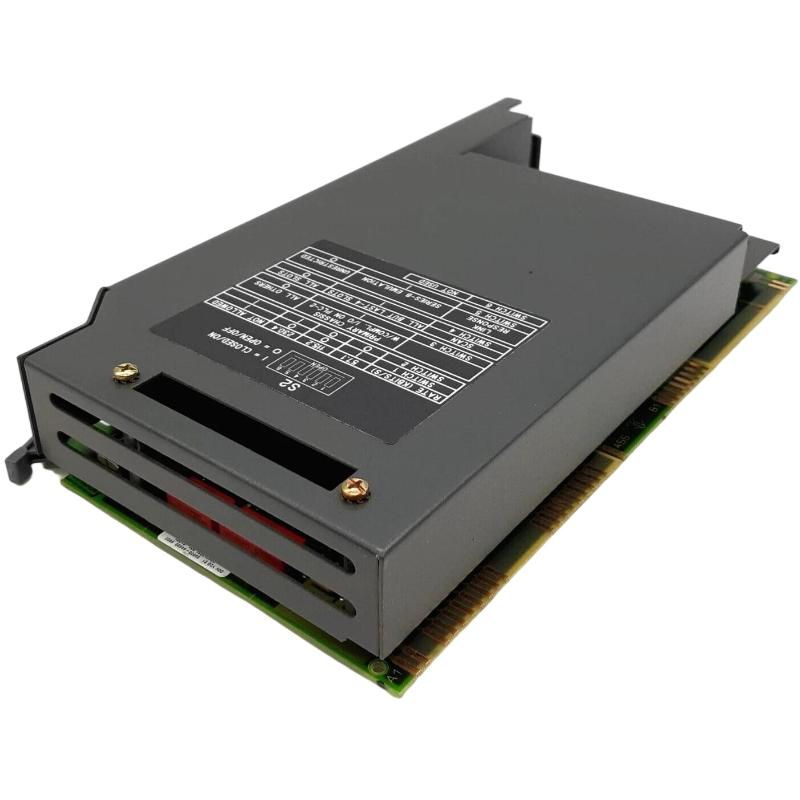

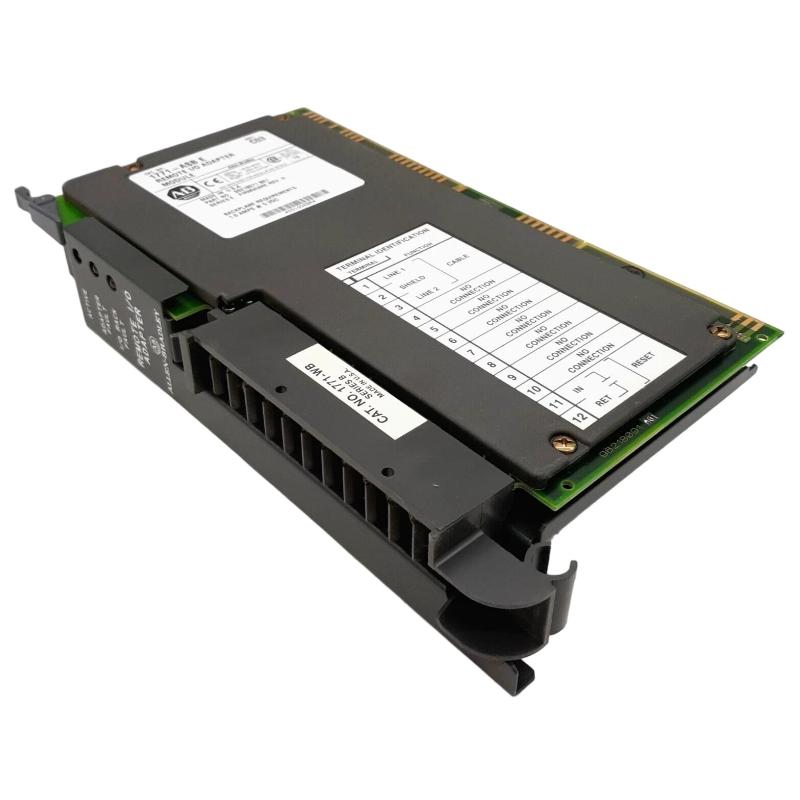

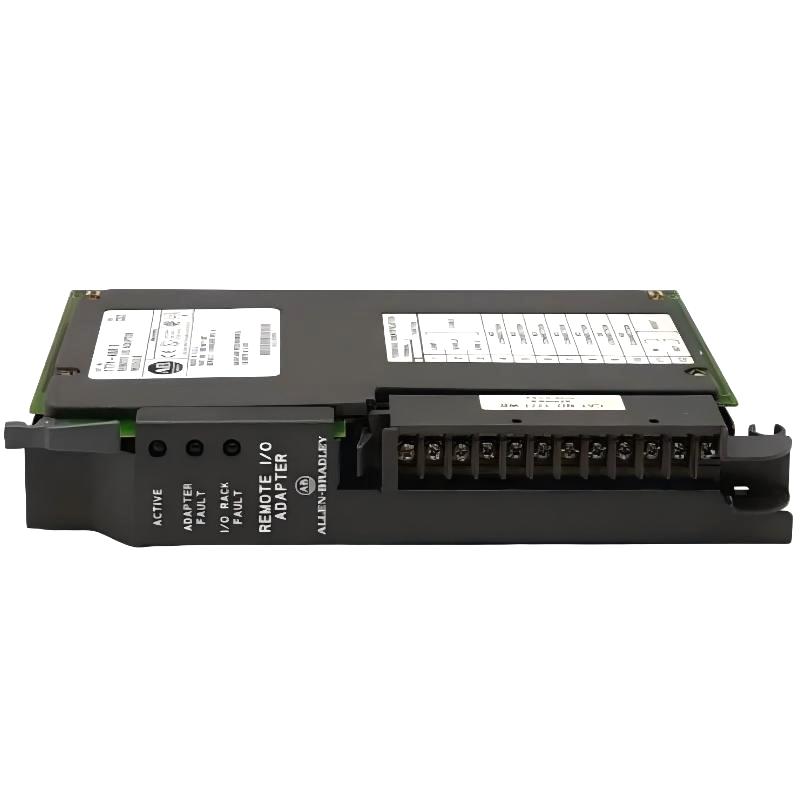

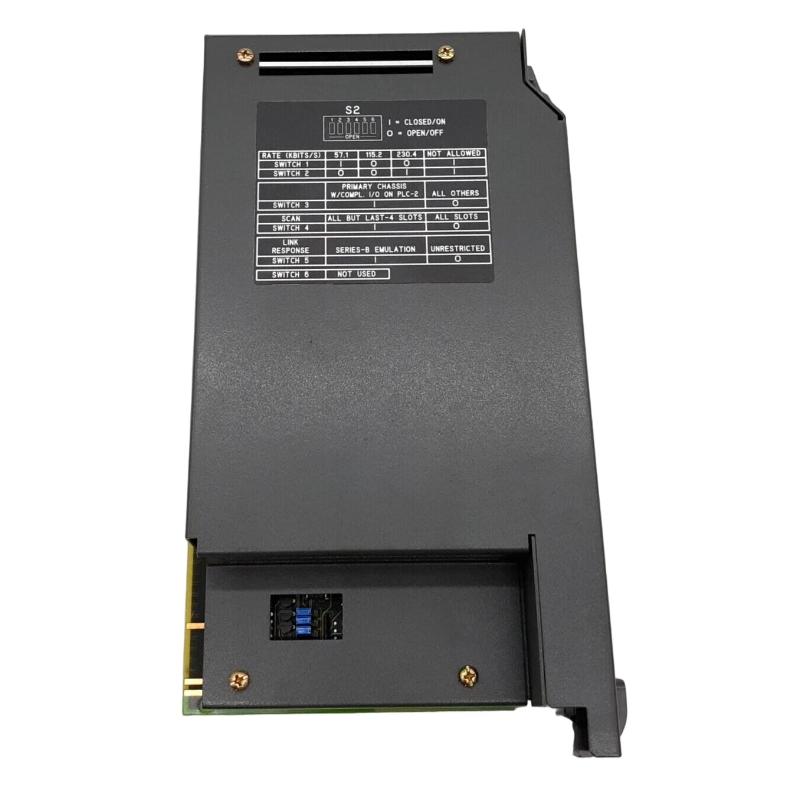

Allen Bradley 1771-ASB/E Remote I/O Adapter Module

Applications

• Distributed Industrial Control Systems
Used to connect remote 1771 I/O racks to central PLC controllers in large-scale automation architectures.

• Manufacturing Production Lines
Supports reliable communication between control systems and dispersed field I/O equipment across production facilities.

• Process Automation Plants
Enables remote data acquisition and control in chemical, power generation, and utility environments.

• Large Facility Automation
Suitable for plants requiring extended I/O coverage across physically separated equipment areas.

Key Advantages

• Remote I/O Connectivity
Provides stable communication between PLC systems and remote I/O chassis.

• Flexible System Expansion
Allows automation systems to scale across multiple racks and locations.

• Reduced Wiring Requirements
Minimizes long-distance hardwiring by enabling distributed architecture.

• Industrial Reliability Design
Built for stable operation in continuous and demanding industrial environments.

Technical FAQs

Q1 What is the main function of the 1771-ASB/E module?
A: It functions as a remote I/O adapter linking 1771 I/O racks to a PLC system.

Q2 What system is it compatible with?
A: It is compatible with Allen Bradley 1771 series I/O systems.

Q3 What communication method does it use?
A: It uses remote I/O communication for data exchange between racks and controller.

Q4 Can it support distributed control architecture?
A: Yes, it is designed specifically for distributed automation systems.

Q5 Does it help reduce wiring complexity?
A: Yes, it reduces the need for long-distance wiring between devices and controller.

Q6 Is it suitable for industrial environments?
A: Yes, it is designed for harsh industrial operating conditions.

Q7 Can multiple I/O racks be connected?
A: Yes, multiple remote racks can be integrated depending on system configuration.

Q8 What industries commonly use this module?
A: It is used in manufacturing, process control, and utility systems.

Q9 Is it compatible with legacy PLC systems?
A: Yes, it is commonly used in traditional Allen Bradley PLC architectures.

Q10 Does it support system expansion?
A: Yes, it supports scalable expansion of remote I/O systems.
