Brand:Emerson Module Item No.:Emerson SE4001S2T2B5 KJ4006X1-BP1 + KJ3203X1-BK1 Product Origin:USA Product Dimensions:203 × 51 × 135 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

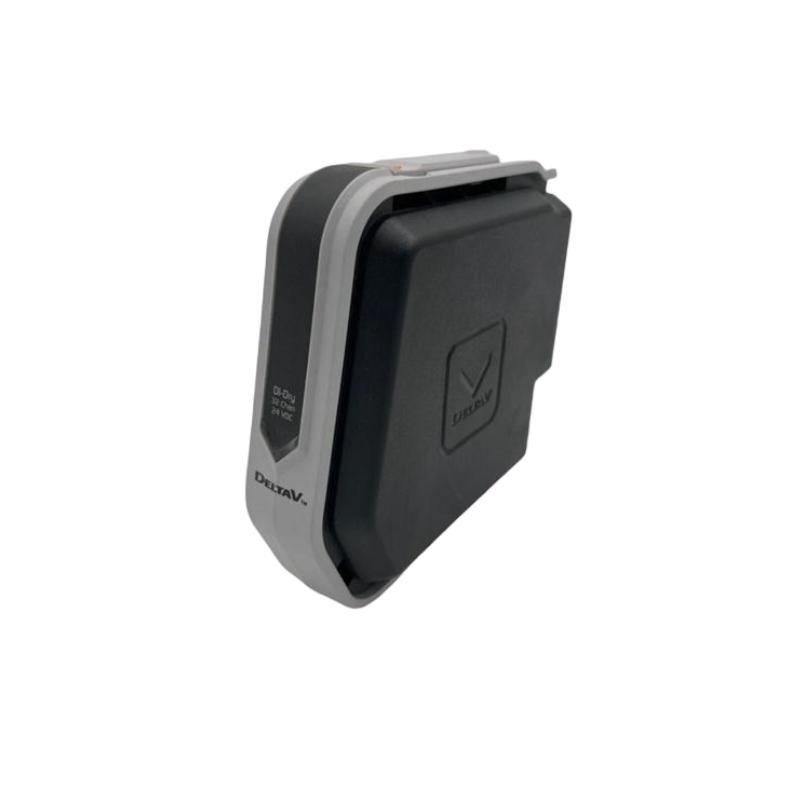

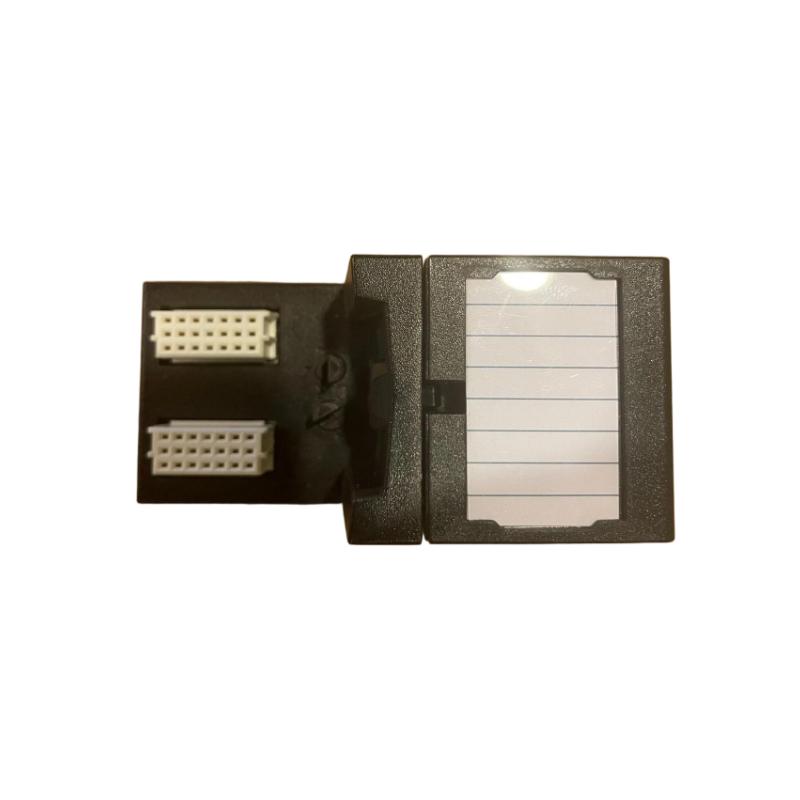

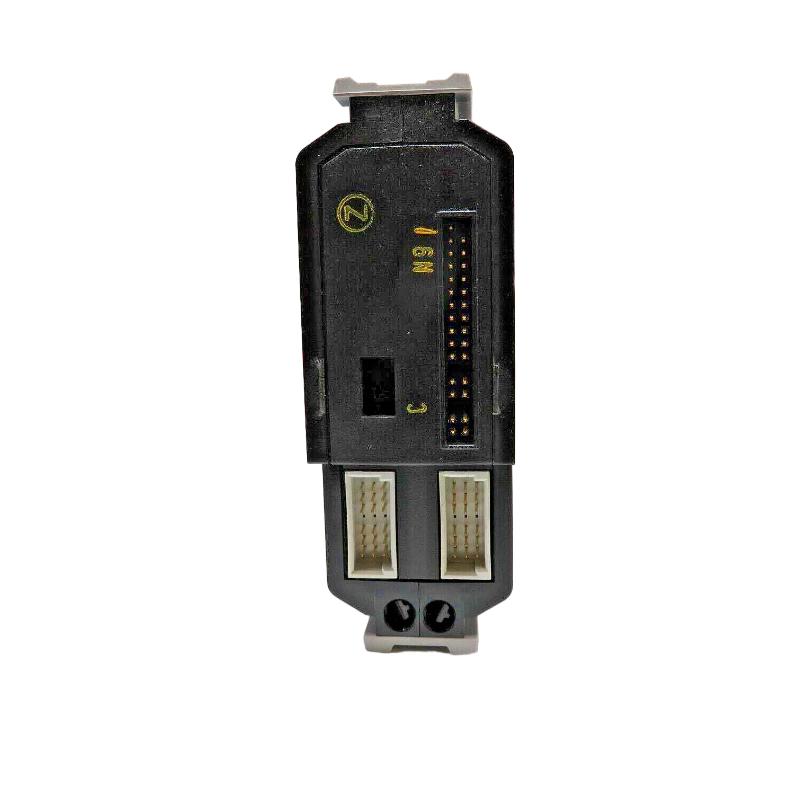

The Emerson SE4001S2T2B5 KJ4006X1-BP1 + KJ3203X1-BK1 Discrete Input Module is a high-density digital input solution developed for DeltaV™ S-Series control systems. Combining the KJ3203X1-BK1 32-channel discrete input card with the KJ4006X1-BP1 terminal block assembly, this module provides dependable acquisition of field status signals from switches, pushbuttons, relays, and other dry-contact devices. It is designed to deliver accurate signal monitoring, fast response times, and exceptional reliability in demanding industrial environments.
Technical Specifications
Parameter
Specification
Manufacturer
Emerson
Model
SE4001S2T2B5 KJ4006X1-BP1 + KJ3203X1-BK1
Module Type
Discrete Input Module
System Platform
DeltaV S-Series
Input Channels
32 Channels
Input Signal Type
24 VDC Dry Contact
Input Card
KJ3203X1-BK1
Terminal Block
KJ4006X1-BP1
Local Bus Power
12 VDC @ 75 mA
Bussed Field Power
24 VDC @ 150 mA
Field Circuit Power
24 VDC @ 5 mA per channel
Diagnostics
Channel-level diagnostics
Installation Method
Carrier-mounted
Operating Temperature
-40°C to +70°C
Humidity
5–95% RH, non-condensing
Environmental Rating
ISA-S71.04 Class G3
Mechanical Specifications
Item
Specification
Dimensions (L × W × H)
203 × 51 × 135 mm
Weight
Approx. 0.8 kg
Technical characteristics are based on the KJ3203X1-BK1 discrete input assembly specifications.
Recommended Related Models
Emerson SE4002S1T2B5 Discrete Output Module
Emerson SE4002S1T2B6 Discrete Output Module
Emerson VE4031S2T2B1 Discrete Input Module
Emerson VE4003S2B1 Analog Input Module
Emerson VE5001 KJ1501X1-BA2 Power Supply Module
Emerson VE4070 Communication Module
Popular Emerson Models
Emerson VE3008 Controller Module
Emerson VE4005S2B3 Analog Output Module
Emerson VE4033S2B1 Analog Input Module
Emerson VE6046P3 Communication Module
Emerson VE4055S2C0 I/O Carrier Module
Emerson VE5001 KJ1501X1-BA1 Power Supply Module
Applications
The SE4001S2T2B5 assembly is ideal for facilities that require reliable monitoring of large numbers of digital field signals.
Typical application areas include:
Oil and gas production facilities
Petrochemical and refining plants
Power generation stations
Water and wastewater treatment systems
Chemical manufacturing plants
Pharmaceutical production facilities
Mining and metals processing
Advantages
Supports 32 high-density digital input channels
Designed for 24 VDC dry-contact signal monitoring
Integrated diagnostics for rapid troubleshooting
Excellent noise immunity and signal reliability
Reduces cabinet space requirements
Suitable for harsh industrial environments
Supports continuous 24/7 operation
Easy integration with DeltaV S-Series systems
Proven performance in critical process applications
Simplifies maintenance and system expansion
Technical FAQs
1. What is the primary function of this module?
It collects and transmits digital field status signals to the DeltaV control system.
2. How many input channels are available?
The module supports 32 discrete input channels.
3. What signal type does it accept?
It is designed for 24 VDC dry-contact input signals.
4. Which DeltaV platform is it compatible with?
It is compatible with DeltaV S-Series systems.
5. What is the role of the KJ3203X1-BK1 component?
The KJ3203X1-BK1 serves as the 32-channel discrete input card.

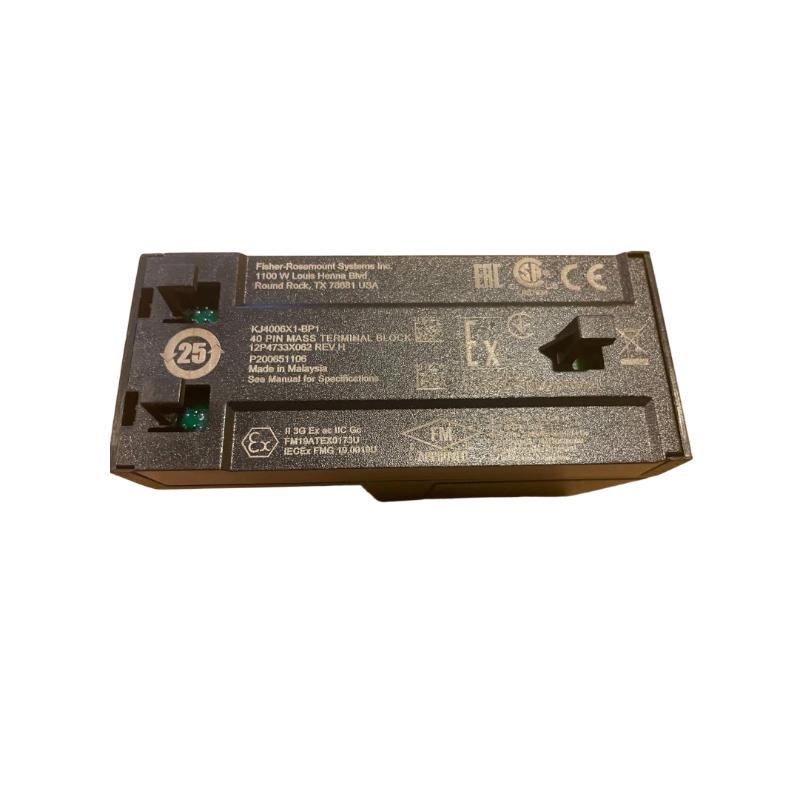

6. What is the purpose of the KJ4006X1-BP1?
The KJ4006X1-BP1 provides field wiring termination and connection support for the input module assembly.
7. Does the module include diagnostics?
Yes, it offers channel-level diagnostics to assist with maintenance and fault identification.
8. What is the operating temperature range?
The module operates from -40°C to +70°C.
9. Is the module suitable for harsh industrial environments?
Yes, it is designed for demanding industrial applications and continuous operation.
10. Why is this module widely used?
Its combination of high channel density, dependable signal acquisition, and seamless DeltaV integration makes it a preferred choice for industrial automation projects.
